Type：ATP-HVS

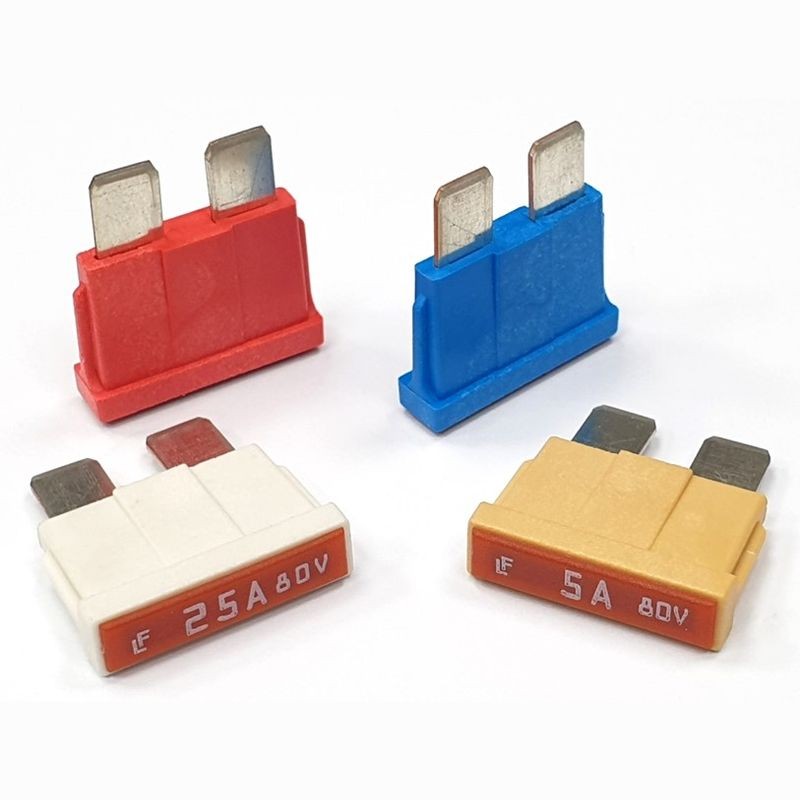

ATP-HVS 80V High Voltage Blade Fuse Series for vehicles with high voltage circuits.

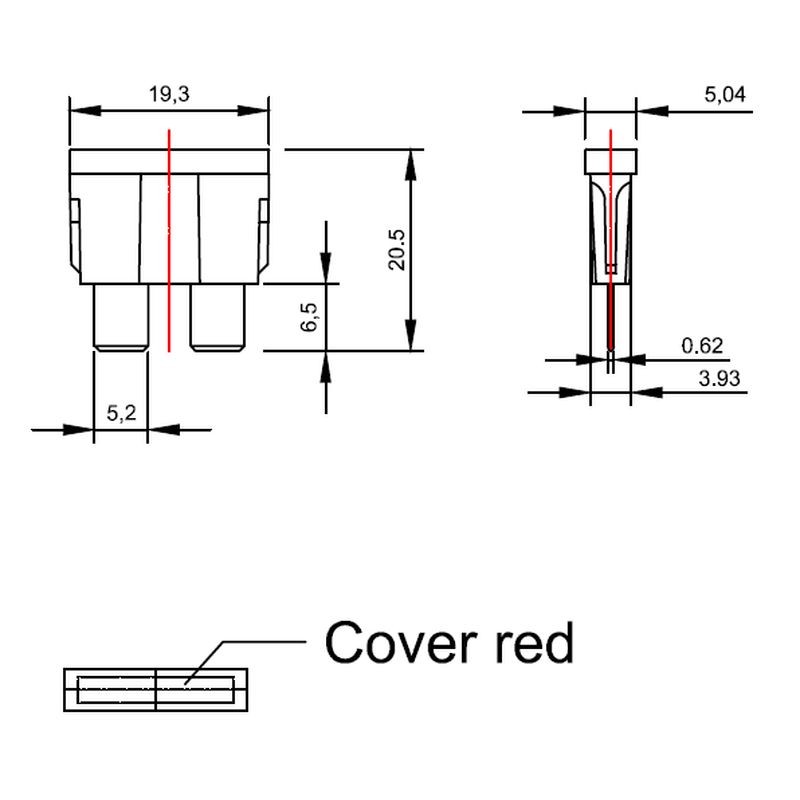

Introduction
ATP-HVS 80V High Voltage Blade Fuse Series for vehicles with high voltage circuits.
The ATP-HVS is a standard blade fuse rated at 80VDC, featuring a three-part construction with copper contacts for excellent reliability in harsh environment conditions and low voltage drop. Fuse body is filled with arc-quenching material. Designed for vehicles with high voltage circuitry like HEV, PHEV, BEV and commercial vehicles. Available for 3A to 30A current ratings.
Product Conformity
- SAE Standards
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 100% | 3 – 30 Amp | 100 Hours | - |
| 150% | 3 – 30 Amp | 0.5 Sec | 300 Sec |
| 200% | 3 – 30 Amp | 0.15 Sec | 20 Sec |
| 350% | 3 – 30 Amp | 0.040 Sec | 0.5 Sec |
| 600% | 3 – 30 Amp | 0.002 Sec | 0.1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| ATP-HVS03 | 3A | 80 VDC | VIOLET | 31.8 mΩ |
| ATP-HVS04 | 4A | 80 VDC | PINK | 21.8 mΩ |
| ATP-HVS05 | 5A | 80 VDC | TAN | 16.5 mΩ |
| ATP-HVS07 | 7.5A | 80 VDC | BROWN | 12.5 mΩ |
| ATP-HVS10 | 10A | 80 VDC | RED | 7.30 mΩ |
| ATP-HVS15 | 15A | 80 VDC | BLUE | 3.83 mΩ |
| ATP-HVS20 | 20A | 80 VDC | YELLOW | 3.10 mΩ |
| ATP-HVS25 | 25A | 80 VDC | NATURAL | 2.02 mΩ |
| ATP-HVS30 | 30A | 80 VDC | GREEN | 1.56 mΩ |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 10,000PCS/carton.
