For Ø5.2mm Tube Fuse
For Ø5.2mm Tube Fuse
With other wire size or lengths are available on special order
To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
#Catalog Code: (Follow the sequence when ordering)
Introduction
In-Line Fuse Holder for Ø5.2mm Tube Fuse
- Contact: Brass, Tin/Nickle Plated
- With other wire size or lengths are available on special order
- To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
- #Catalog Code: (Follow the sequence when ordering)
Specification
| Item Number | Maximum Current | Insulation Resistance At 500 V DC | Contact Resistance | Dielectric Strength for 60 seconds | Body Material | Lead Wire in Loop | Type | |
|---|---|---|---|---|---|---|---|---|

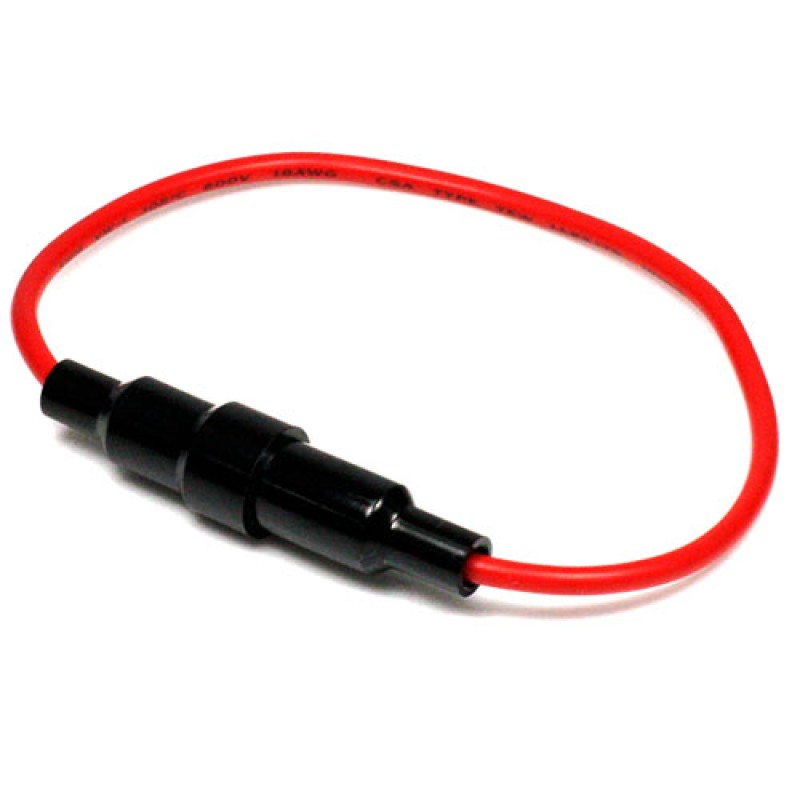

| FH - 209 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 16# to 20# AWG | Bayonet Type |

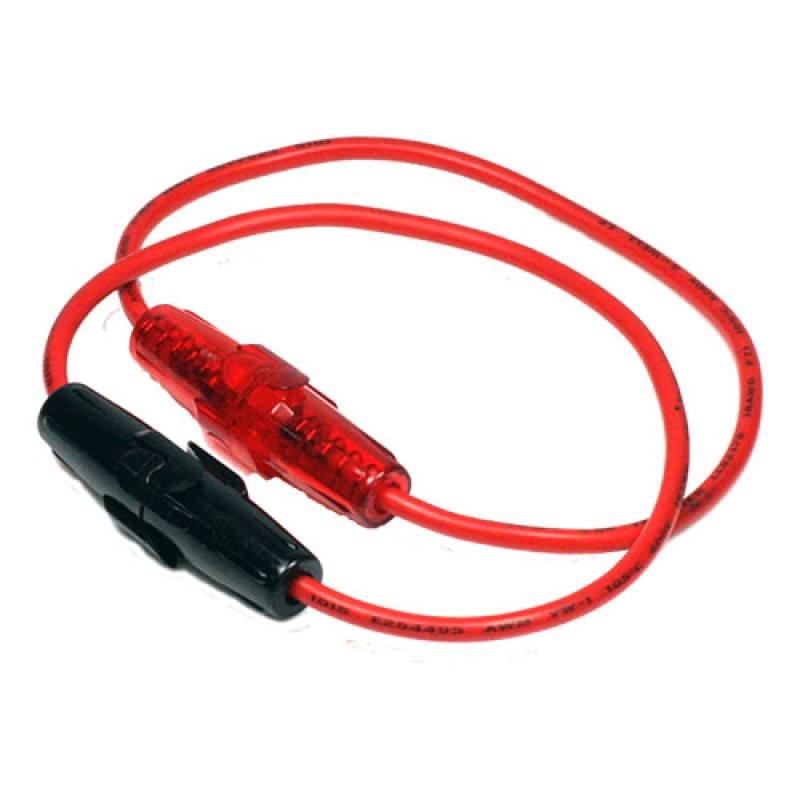

| FH - 205 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | Polycarbonate P.C. | 16# to 20# AWG | Interlock Type |

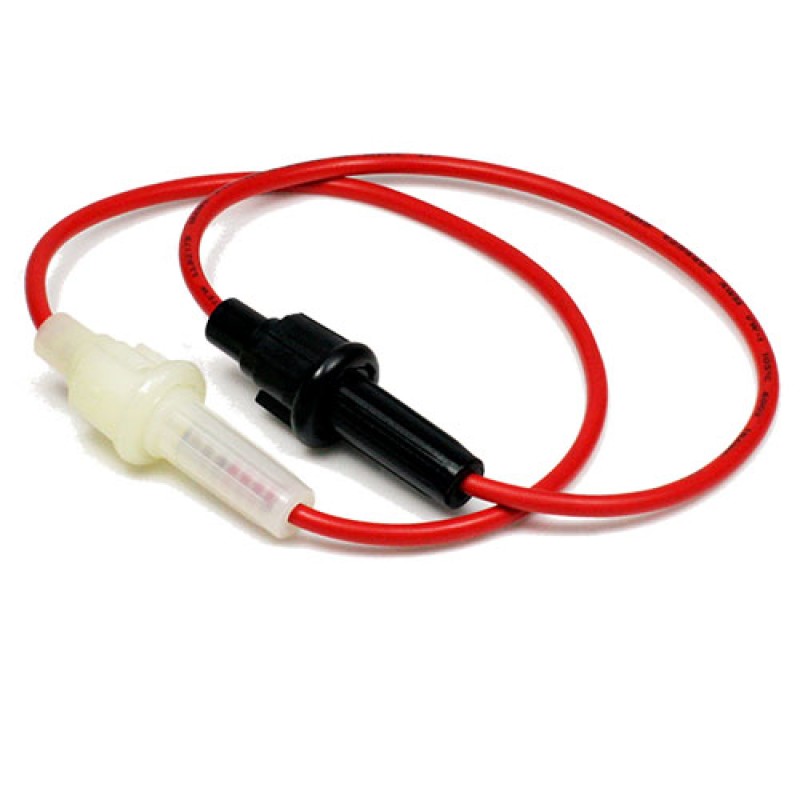

| FH - 215 |  |
15 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite P.C. | 16# to 20# AWG | Screw Type |
Product Packaging
- **Standard Package:** 1,000 PCS per polybag,
Product Overview
The inline glass tube fuse holder from Hansor securely houses 5.2 mm glass tube fuses in in‑line wiring configurations, delivering dependable overcurrent protection for automotive, industrial, and electronic systems. Designed for easy installation and convenient fuse replacement, this holder lets users service circuits without disassembling complex wiring looms.
Key Features of Inline Glass Tube Fuse Holder
- Reliable Circuit Protection: The inline glass tube fuse holder holds standard 5.2 mm tube fuses for protecting circuits against overload and short circuits.
- Easy Fuse Replacement: The in‑line design gives direct access to the fuse for replacement without accessing internal panels or cases.
- Durable Construction: Made with flame‑retardant thermoplastic materials and robust contact terminals to ensure stable performance and longevity.
- Flexible Installation: Compatible with typical wiring harnesses and cable gauges found in automotive and electronic equipment.
Applications
Hansor’s inline glass tube fuse holder is ideal for:
- Automotive wiring harness protection
- Power supply and battery systems
- Industrial control circuits
- Consumer electronics requiring accessible inline fuse protection
This holder helps engineers and technicians design systems with safe, reliable, and easily serviceable circuit protection.
Why Choose Hansor Inline Fuse Holders
As a trusted manufacturer of fuse holders, Hansor emphasizes robust design, consistent performance, and manufacturing quality. Our inline glass tube fuse holder products are engineered to meet real‑world protection requirements in a wide range of applications. Production adheres to flame‑retardant safety standards and ensures stable electrical contact, giving OEMs and system integrators confidence in long‑term reliability.
