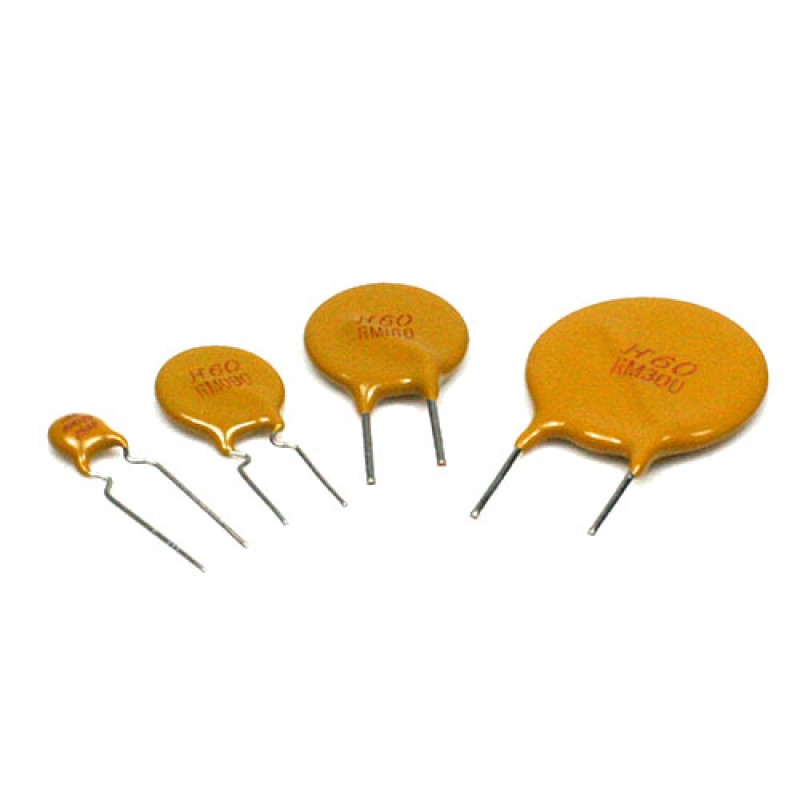

RF-RM (60V) Series

RF-RM (60V) Series

Type：RF-RM
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including:
．Computers & peripherals
．Consumer electronics
．Automotive applications
Add to Inquiry

Introduction

Introduction

PPTC RF-RM 60V DC Series

  • Radial Leaded Devices
  • Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
  • Bulk packaging, tape and reel and Ammo-Pack available on most models.
    Almost anywhere there is a low voltage power supply and a load to be protected including:
  • Computers & peripherals
  • Consumer electronics
  • Automotive applications

Product Conformity

  • UL, CSA, TUV
  • EU RoHS, REACH

Electronic Characteristics

MODEL V max. Volts (DC) I max. Amps. Amperes at 20°C Resistance at 20°C (Ohms) Max. Time To Trip at 5*Ih (Seconds at 20°C) Tripped Power Dissipation (Watts at 20°C)
Ihold Itrip Initial Resistance 1Hour (R1) Post-Trip Resistance
Hold Trip Min. Max.
RF-RM010 60 40 0.10 0.20 2.50 7.50 4.00 0.38
RF-RM017 60 40 0.17 0.34 2.00 8.00 3.00 0.48
RF-RM020 60 40 0.20 0.40 1.50 4.40 2.20 0.41
RF-RM025 60 40 0.25 0.50 1.00 3.00 2.50 0.45
RF-RM030 60 40 0.30 0.60 0.76 2.10 3.00 0.50
RF-RM040 60 40 0.40 0.80 0.52 1.29 3.80 0.56
RF-RM050 60 40 0.50 1.00 0.41 1.17 4.00 0.77
RF-RM065 60 40 0.65 1.30 0.27 0.72 5.30 0.90
RF-RM075 60 40 0.75 1.50 0.18 0.60 6.30 0.92
RF-RM090 60 40 0.90 1.80 0.14 0.47 7.20 1.00
RF-RM110 60 40 1.10 2.20 0.15 0.38 8.20 1.50
RF-RM135 60 40 1.35 2.70 0.12 0.30 9.60 1.70
RF-RM160 60 40 1.60 3.20 0.09 0.22 11.40 1.90
RF-RM185 60 40 1.85 3.70 0.08 0.19 12.60 2.10
RF-RM250 60 40 2.50 5.00 0.05 0.13 15.60 2.50
RF-RM300 60 40 3.00 6.00 0.04 0.10 19.80 2.80
RF-RM375 60 40 3.75 7.50 0.03 0.08 24.00 3.20

* V max. = Maximum voltage the device can withstand without damage at rated current.
* I max. = Maximum fault current the device can withstand without damage at rated voltage.
* I hold = Hold current - maximum current at which the device will not trip at 20°C still air.
* I trip = Trip current - minimum current at which the device will always trip at 20°C still air.
* R min. = Minimum device resistance at 20°C prior to tripping.
* R 1max. = Maximum device resistance at 20°C measured 1 hour post trip.

Product Packaging

  • **Standard Package:** 500 PCS per polybag.
  • Taping reel available upon request.
