Type：ATP-NS

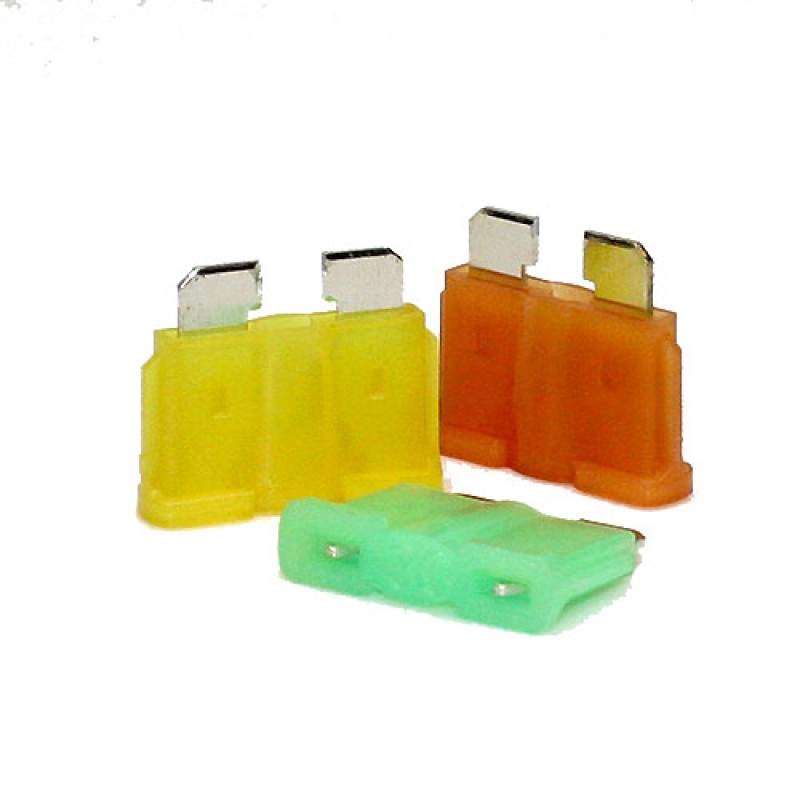

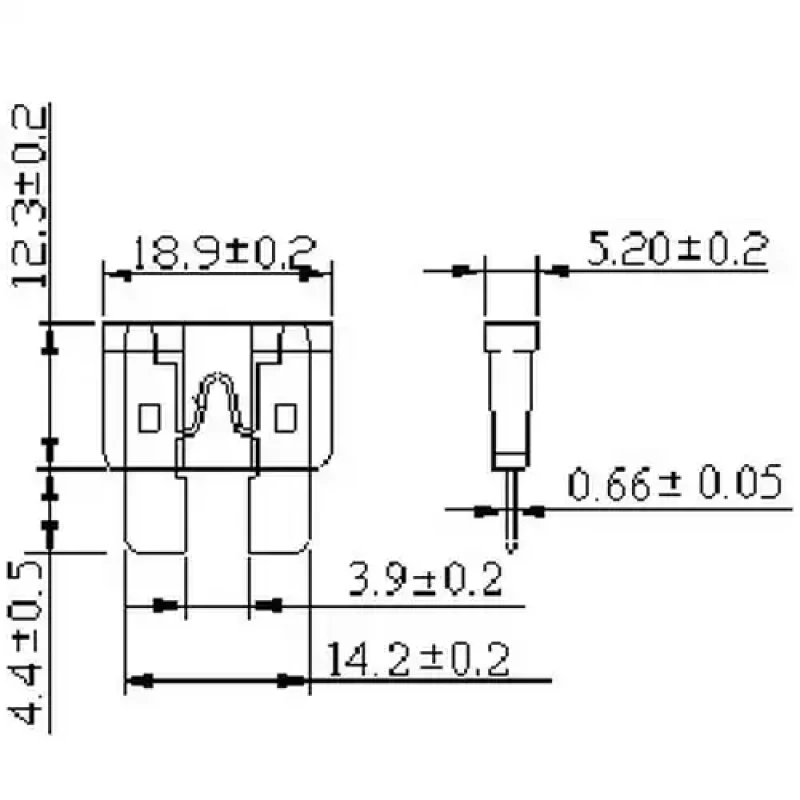

Hansor ATP-NS series Standard Blade Fuse for PCB is manufactured using high grade thermoplastic that can withstand the high temperture required for solder float process of PCB production. The shortened Tin-plated blade meaning the fuse can be solder directly to circuit board, eliminate the need for fuse clips that are not designed for high current use. The ATP-NS series reduce the cost for PCB and increase the reliability of the circuitries.
Introduction
ATP-NS Standard Blade Fuse Series for PCB use, UL Certified.
Hansor ATP-NS series Standard Blade Fuse for PCB is manufactured using high grade thermoplastic that can withstand the high temperature required for solder float process of PCB production. The shortened Tin-plated blade meaning the fuse can be soldered directly to circuit board, eliminate the need for fuse clips that are not designed for high current use. The ATP-NS series reduce the cost for PCB and increase the reliability of the circuitries.
Product Conformity
- UL Certified
- SAE Standards
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 3 – 40 Amp | 100 Hours | – |
| 135% | 3 – 40 Amp | – | 1800 Sec |
| 200% | 3 – 40 Amp | – | 5 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| ATP-NS03 | 3A | 32VDC | VIOLET | 0.031 |
| ATP-NS04 | 4A | 32VDC | PINK | 0.023 |
| ATP-NS05 | 5A | 32VDC | TAN | 0.018 |
| ATP-NS07 | 7.5A | 32VDC | BROWN | 0.011 |
| ATP-NS10 | 10A | 32VDC | RED | 0.0077 |
| ATP-NS15 | 15A | 32VDC | BLUE | 0.0048 |
| ATP-NS20 | 20A | 32VDC | YELLOW | 0.0033 |
| ATP-NS25 | 25A | 32VDC | NATURAL | 0.0025 |
| ATP-NS30 | 30A | 32VDC | GREEN | 0.0019 |
| ATP-NS35 | 35A | 32VDC | BLUE GREEN | 0.0016 |
| ATP-NS40 | 40A | 32VDC | AMBER | 0.0014 |
Product Packaging
- OEM Package: 1,000PCS/polybag
- Export Packaging: 1,000PCS/polybag, 10,000PCS/carton.
