Square Ceramic Fuse
Square Ceramic Fuse
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Ceramic Chip body is ideal for float solder.
Introduction

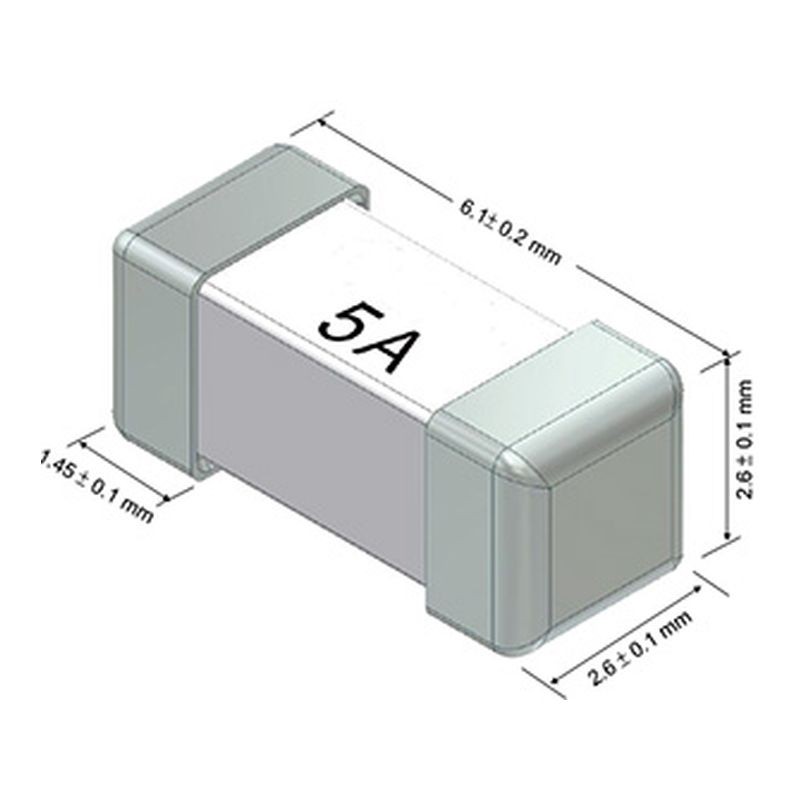

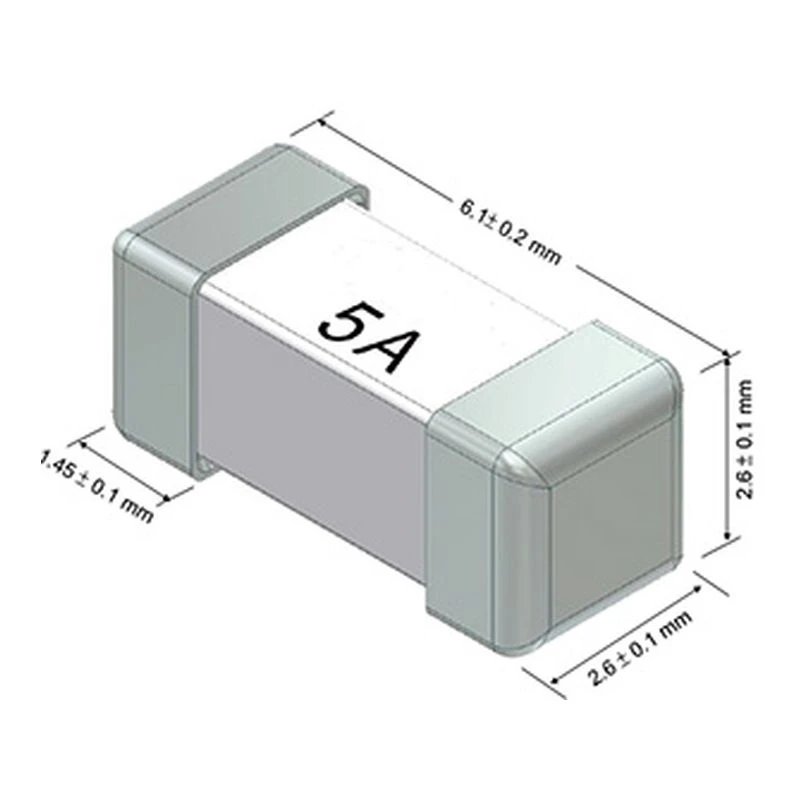

Square Ceramic Tube Fuse.
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Ceramic Chip body is ideal for float solder.
Product Conformity
- UL Certified for US & Canada (SEF 62mA ~ 5A)
- PSE (SEF 1A ~ 15A; SET 1A ~ 7A)
- Recognized for US & Canada (SEF 6A ~ 15A; SET 200mA ~ 7A)
- CSA Listed (SET 200mA ~ 7A)
- EU RoHS, REACH
Electronic Characteristics
For Fast Acting Type (SEF)
| Fast Acting Type (SEF) | |||
|---|---|---|---|
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
| 100% | 62mA – 10 Amp | 4 hr | – |
| 100% | 12 – 15 Amp | 4 hr | – |
| 200% | 62mA – 10 Amp | – | 5 Sec |
| 200% | 12 – 15 Amp | – | 60 Sec |
For Slow Blow Type (SET)
| Slow Blow Type (SET) | |||
|---|---|---|---|
| % of Rating | Current Rating | Opening Time | |
| Minimum | Maximum | ||
| 100% | 1 – 20 Amp | 4 hr | – |
| 200% | 1 – 20 Amp | 1 Sec | 60 Sec |
| 300% | 1 – 20 Amp | 0.2 Sec | 3 Sec |
| 800% | 1 – 20 Amp | 0.02 Sec | 0.1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type |
|---|---|---|---|
| SEF | 62mA ~ 10A | 125VDC | Fast Acting |
| SEF | 12A ~ 15A | 65VDC | Fast Acting |
| SET | 200mA ~ 7A | 125VDC | Slow Blow |
* Please contact our sales for detail specification.
Product Packaging
- Package Type: SMD series are packaged in taping reel for pick-and-place machine.
- Standard Package: 1,000 PCS per reel.
