RF-RL (30V) Series
RF-RL (30V) Series

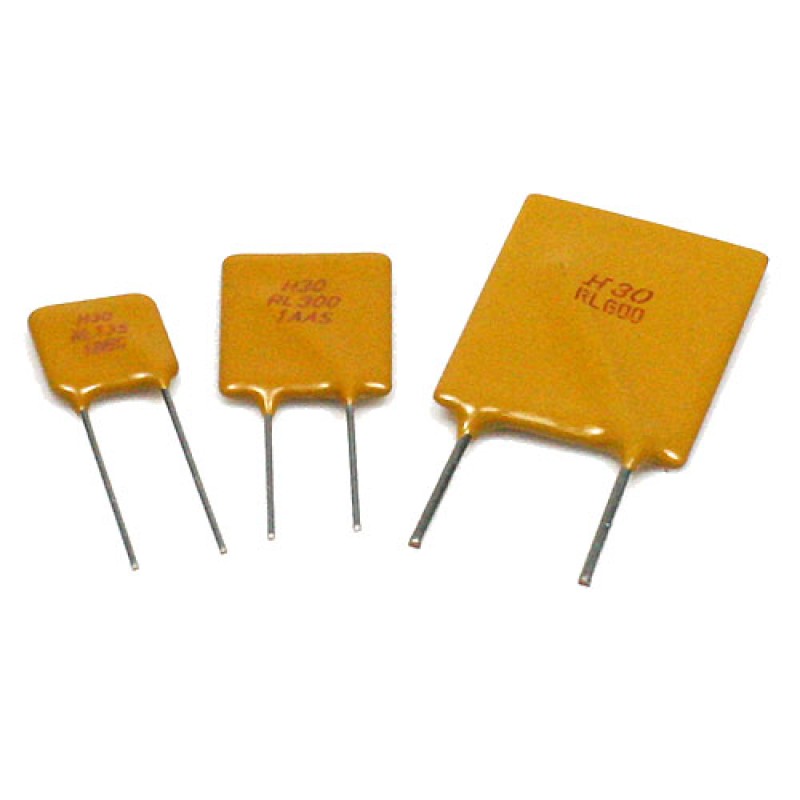

Type：RF-RL
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including:
．Computers & peripherals
．Consumer electronics
．Automotive applications
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including:
．Computers & peripherals
．Consumer electronics
．Automotive applications
Introduction
PPTC RF-RL 30V DC Series
- Radial Leaded Devices
- Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
- Bulk packaging, tape and reel and Ammo-Pack available on most models.
Almost anywhere there is a low voltage power supply and a load to be protected including: - Computers & peripherals
- Consumer electronics
- Automotive applications
Product Conformity
- UL, CSA, TUV
- EU RoHS, REACH
Electronic Characteristics
| MODEL | V max. Volts (DC) | I max. Amps. | Amperes at 20°C | Resistance at 20°C (Ohms) | Max. Time To Trip at 5*Ih (Seconds at 20°C) | Tripped Power Dissipation (Watts at 20°C) | ||
|---|---|---|---|---|---|---|---|---|
| Ihold | Itrip | Initial Resistance | 1Hour (R1) Post-Trip Resistance | |||||
| Hold | Trip | Min. | Max. | |||||
| RF-RL090 | 30 | 40 | 0.90 | 1.80 | 0.070 | 0.22 | 5.9 | 0.6 |
| RF-RL110 | 30 | 40 | 1.10 | 2.20 | 0.050 | 0.17 | 6.6 | 0.7 |
| RF-RL135 | 30 | 40 | 1.35 | 2.70 | 0.040 | 0.13 | 7.3 | 0.8 |
| RF-RL160 | 30 | 40 | 1.60 | 3.20 | 0.030 | 0.11 | 8.0 | 0.9 |
| RF-RL185 | 30 | 40 | 1.85 | 3.70 | 0.030 | 0.09 | 8.7 | 1.0 |
| RF-RL250 | 30 | 40 | 2.50 | 5.00 | 0.020 | 0.08 | 10.3 | 1.2 |
| RF-RL300 | 30 | 40 | 3.00 | 6.00 | 0.020 | 0.08 | 10.8 | 2.0 |
| RF-RL400 | 30 | 40 | 4.00 | 8.00 | 0.010 | 0.05 | 12.7 | 2.5 |
| RF-RL500 | 30 | 40 | 5.00 | 10.00 | 0.010 | 0.05 | 14.5 | 3.0 |
| RF-RL600 | 30 | 40 | 6.00 | 12.00 | 0.005 | 0.04 | 16.0 | 3.5 |
| RF-RL700 | 30 | 40 | 7.00 | 14.00 | 0.005 | 0.03 | 17.5 | 3.8 |
| RF-RL800 | 30 | 40 | 8.00 | 16.00 | 0.005 | 0.03 | 18.8 | 4.0 |
| RF-RL900 | 30 | 40 | 9.00 | 18.00 | 0.005 | 0.02 | 20.0* | 4.2 |
* V max. = Maximum voltage the device can withstand without damage at rated current.
* I max. = Maximum fault current the device can withstand without damage at rated voltage.
* I hold = Hold current - maximum current at which the device will not trip at 20°C still air.
* I trip = Trip current - minimum current at which the device will always trip at 20°C still air.
* R min. = Minimum device resistance at 20°C prior to tripping.
* R 1max. = Maximum device resistance at 20°C measured 1 hour post trip.
Product Packaging
- Standard Package: 500 PCS per polybag.
- Taping reel available upon request.
