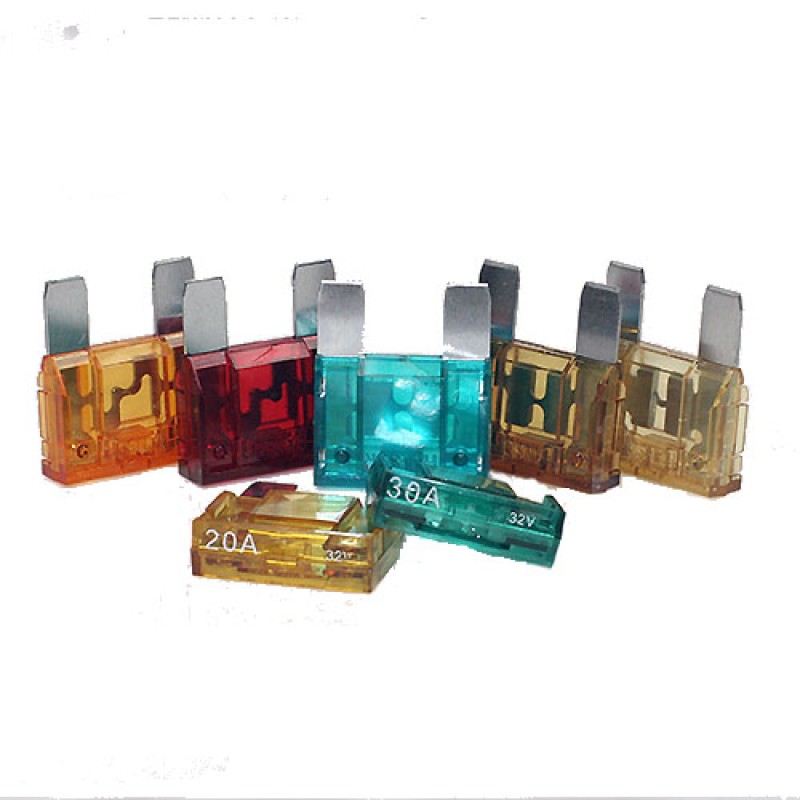

AMP-H (MAXI Blade)
AMP-H (MAXI Blade)
Type：AMP-H
AMP-H MAXI Blade Fuse Series are mostly used for trucks, RV, and marine vehicles.
Introduction
AMP-H MAXI Blade Fuse Series are mostly used for trucks, RV, and marine vehicles.
Hansor AMP-H series MAXI Blade Fuse is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing.
Product Conformity
- SAE Standard
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 135% | 20 – 60 Amp | 60 Sec | 1800 Sec |
| 135% | 70 – 100 Amp | 60 Sec | 3600 Sec |
| 200% | 20 – 100 Amp | 4 Sec | 60 Sec |
| 350% | 20 – 100 Amp | 0.2 Sec | 7 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| AMP-H020 | 20A | 32VDC | YELLOW | 0.0039 |
| AMP-H030 | 30A | 32VDC | LT. GREEN | 0.0024 |
| AMP-H040 | 40A | 32VDC | ORANGE | 0.0018 |
| AMP-H050 | 50A | 32VDC | RED | 0.0014 |
| AMP-H060 | 60A | 32VDC | LT. BLUE | 0.0011 |
| AMP-H070 | 70A | 32VDC | TAN | 0.0009 |
| AMP-H080 | 80A | 32VDC | NATURE | 0.0008 |
| AMP-H100 | 100A | 32VDC | PURPLE | 0.0006 |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 100PCS/polybag, 500PCS/inner box, 2000PCS/carton.
