AMP-L (MAXI Blade)
AMP-L (MAXI Blade)

AMP-L (MAXI Blade)

Type：AMP-L

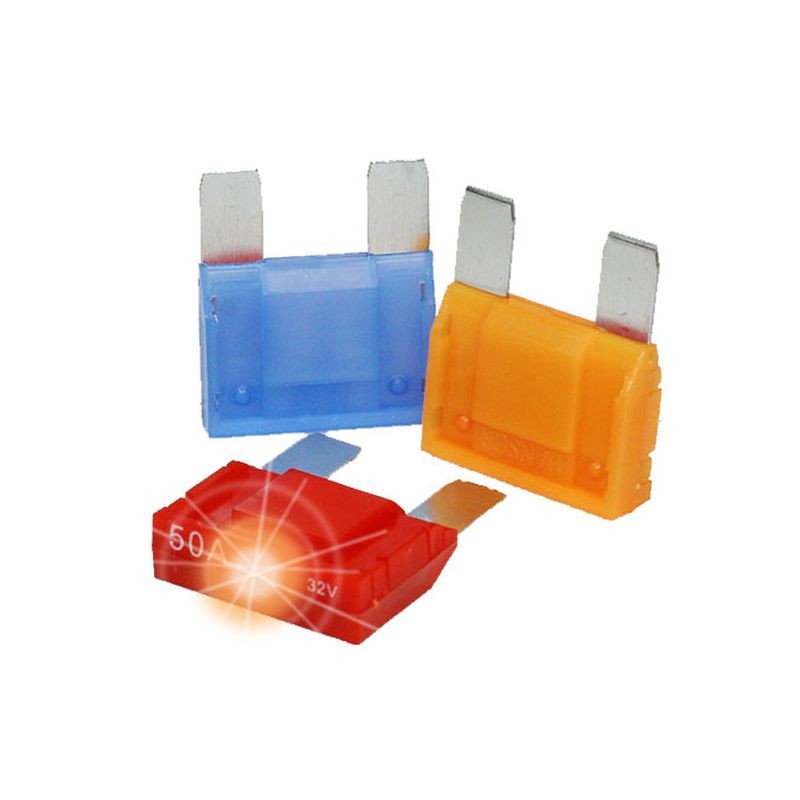

Intelligent Fuse AMP-L MAX Blade Fuse Series are mostly used for trucks, RV, and marine vehicles.
Add to Inquiry

Introduction

Product Overview

Introduction

Intelligent Fuse AMP-L MAX Blade Fuse Series are mostly used for trucks, RV, and marine vehicles.

*Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China.

Product Conformity

  • SAE J1888
  • UL
  • EU RoHS, REACH

Electronic Characteristics

% of Rating Current Rating Opening Time
Minimum Maximum
135% 20 – 60 Amp 60 Sec 1800 Sec
135% 70 – 100 Amp 60 Sec 3600 Sec
200% 20 – 100 Amp 4 Sec 60 Sec
350% 20 – 100 Amp 0.2 Sec 7 Sec

Order Information

Catalogue Number Amperage Rating Voltage Rating Color Code Nominal Cold Resistance
AMP-L020 20A 32VDC YELLOW 0.0039
AMP-L030 30A 32VDC LT. GREEN 0.0024
AMP-L040 40A 32VDC ORANGE 0.0018
AMP-L050 50A 32VDC RED 0.0014
AMP-L060 60A 32VDC LT. BLUE 0.0011
AMP-L070 70A 32VDC TAN 0.0009
AMP-L080 80A 32VDC NATURE 0.0008
AMP-L100 100A 32VDC PURPLE 0.0006

Product Packaging

  • OEM Package: 500PCS/polybag
  • Export Packaging: 100PCS/polybag, 500PCS/inner box, 2000PCS/carton.

Product Overview

Hansor Maxi Blade Fuse Series features a robust design for high-current applications. Equipped with an LED blade fuse indicator, it immediately signals when the fuse is blown, allowing for quick fault detection and replacement.

*Hansor's patented LED technology ensures reliable failure indication in demanding environments.

Key Features

  • LED Indicator: Built-in LED lights up when blown for easy identification.
  • Durable Materials: Premium thermoplastic body with zinc alloy fuse element.
  • Color-Coded: Standardized blade colors for fast amperage recognition.
  • High Current Capacity: Suitable for automotive, industrial, and electronic circuits.
  • Compliance: Certified under UL, RoHS, and SAE J1888 standards.

Applications

  • Automotive fuse boxes for cars, trucks, and industrial vehicles.
  • Electronic devices requiring high-current protection.
  • Industrial machinery and control panels.

Why Choose Hansor Maxi Blade Fuse

  • Reliable fuse supplier with decades of experience.
  • Patented and certified products enhancing safety and performance.
  • Wide selection of LED blade fuse and maxi blade fuse options for different currents.
