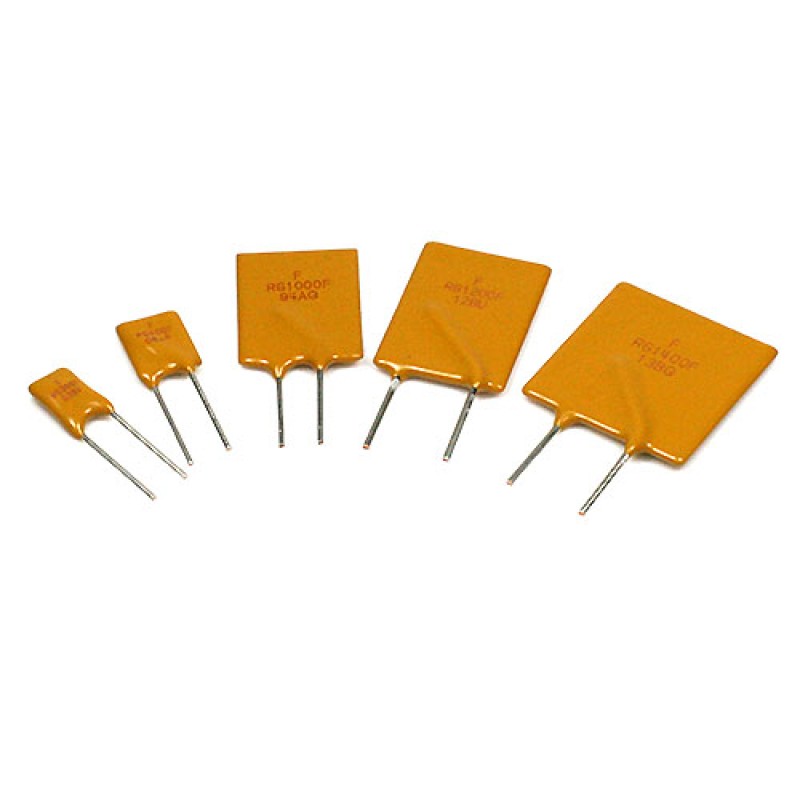

RF-RG (16V) Series
RF-RG (16V) Series
Type：RF-RG
．Radial Leaded Devices
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
．The low resistance, fast trip times, and tight trip-to-hold
．Security and fire alarm systems
．Medical equipment
．Transformers
．Satellite video receivers
．Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
．Bulk packaging, tape and reel and Ammo-Pack available on most models.
．The low resistance, fast trip times, and tight trip-to-hold
．Security and fire alarm systems
．Medical equipment
．Transformers
．Satellite video receivers
Introduction
PPTC RF-RG 16V DC Series
- Radial Leaded Devices
- Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
- Bulk packaging, tape and reel and Ammo-Pack available on most models.
- The low resistance, fast trip times, and tight trip-to-hold
- Security and fire alarm systems
- Medical equipment
- Transformers
- Satellite video receivers
Product Conformity
- UL, CSA, TUV
- EU RoHS, REACH
Electronic Characteristics
| MODEL | V max. Volts (DC) | I max. Amps. | Amperes at 20°C | Resistance at 20°C (Ohms) | Max. Time To Trip at 5*Ih (Seconds at 20°C) | Tripped Power Dissipation (Watts at 20°C) | ||
|---|---|---|---|---|---|---|---|---|
| Ihold | Itrip | Initial Resistance | 1Hour (R1) Post-Trip Resistance | |||||
| Hold | Trip | Min. | Max. | |||||
| RF-RG300 | 16 | 100 | 3.0 | 5.1 | 0.034 | 0.105 | 2.0 | 2.3 |
| RF-RG400 | 16 | 100 | 4.0 | 6.8 | 0.020 | 0.063 | 3.5 | 2.4 |
| RF-RG500 | 16 | 100 | 5.0 | 8.5 | 0.014 | 0.044 | 3.6 | 2.6 |
| RF-RG600 | 16 | 100 | 6.0 | 10.2 | 0.009 | 0.033 | 5.8 | 2.8 |
| RF-RG700 | 16 | 100 | 7.0 | 11.9 | 0.006 | 0.021 | 8.0 | 3.0 |
| RF-RG800 | 16 | 100 | 8.0 | 13.6 | 0.005 | 0.018 | 9.0 | 3.3 |
| RF-RG900 | 16 | 100 | 9.0 | 15.3 | 0.004 | 0.015 | 12.0 | 3.3 |
| RF-RG1000 | 16 | 100 | 10.0 | 17.0 | 0.003 | 0.015 | 12.5 | 3.6 |
| RF-RG1100 | 16 | 100 | 11.0 | 18.7 | 0.003 | 0.010 | 13.5 | 3.7 |
| RF-RG1200 | 16 | 100 | 12.0 | 20.4 | 0.002 | 0.009 | 16.0 | 4.2 |
| RF-RG1400 | 16 | 100 | 14.0 | 23.8 | 0.002 | 0.008 | 20.0 | 4.6 |
* V max. = Maximum voltage the device can withstand without damage at rated current.
* I max. = Maximum fault current the device can withstand without damage at rated voltage.
* I hold = Hold current - maximum current at which the device will not trip at 20°C still air.
* I trip = Trip current - minimum current at which the device will always trip at 20°C still air.
* R min. = Minimum device resistance at 20°C prior to tripping.
* R 1max. = Maximum device resistance at 20°C measured 1 hour post trip.
Product Packaging
- **Standard Package:** 500 PCS per polybag.
- Taping reel available upon request.
