In Line Blade Fuse Holder | Mini In Line Fuse Holder
For Blade Type Fuse
Contact: Brass, Tin/Nickle Plated
With other wire size or lengths are available on special order
To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
With other wire size or lengths are available on special order
To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
Introduction
In-Line Fuse Holder for Blade Type Fuse
- Contact: Brass, Tin/Nickle Plated
- With other wire size or lengths are available on special order
- To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
Specification
| Item Number | Maximum Current | Insulation Resistance At 500 V DC | Contact Resistance | Dielectric Strength for 60 seconds | Body Material | Lead Wire in Loop | Type | |
|---|---|---|---|---|---|---|---|---|
| For ATP Blade Type Fuses | ||||||||

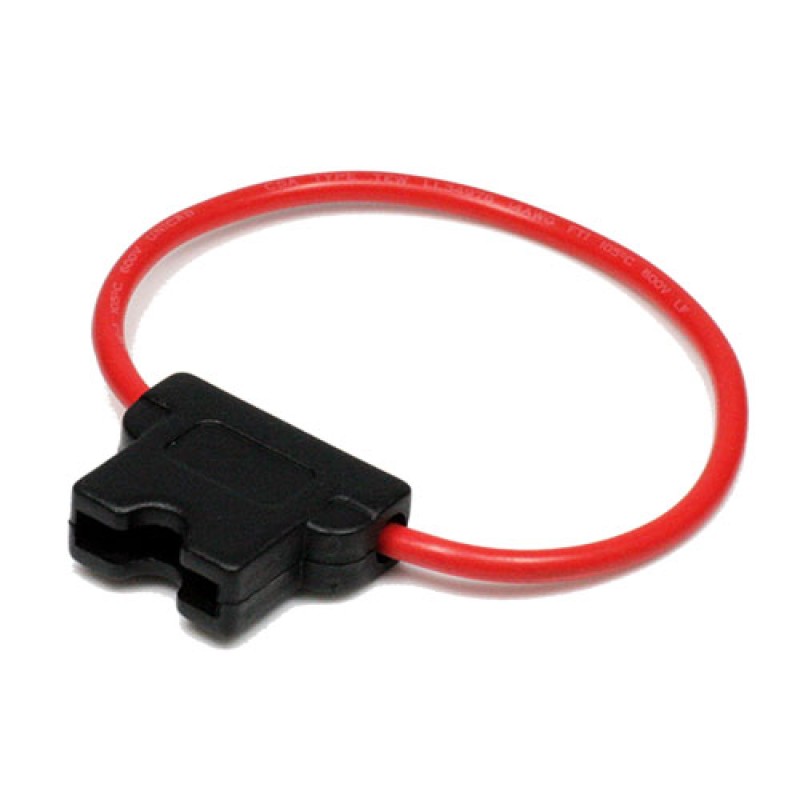

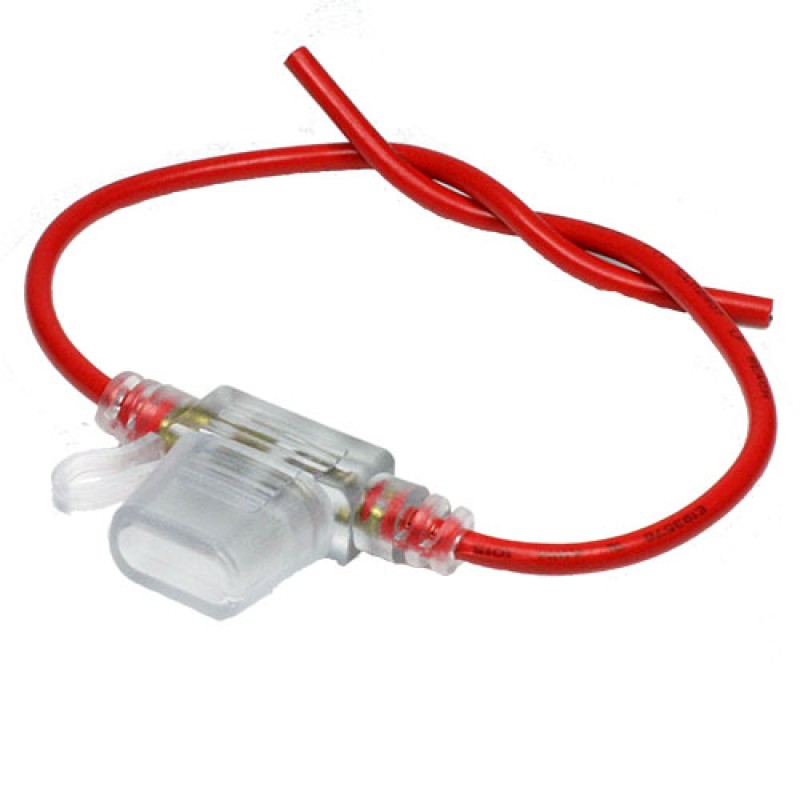

| FH-006 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 12# to 18# AWG | Heavy Duty Type |

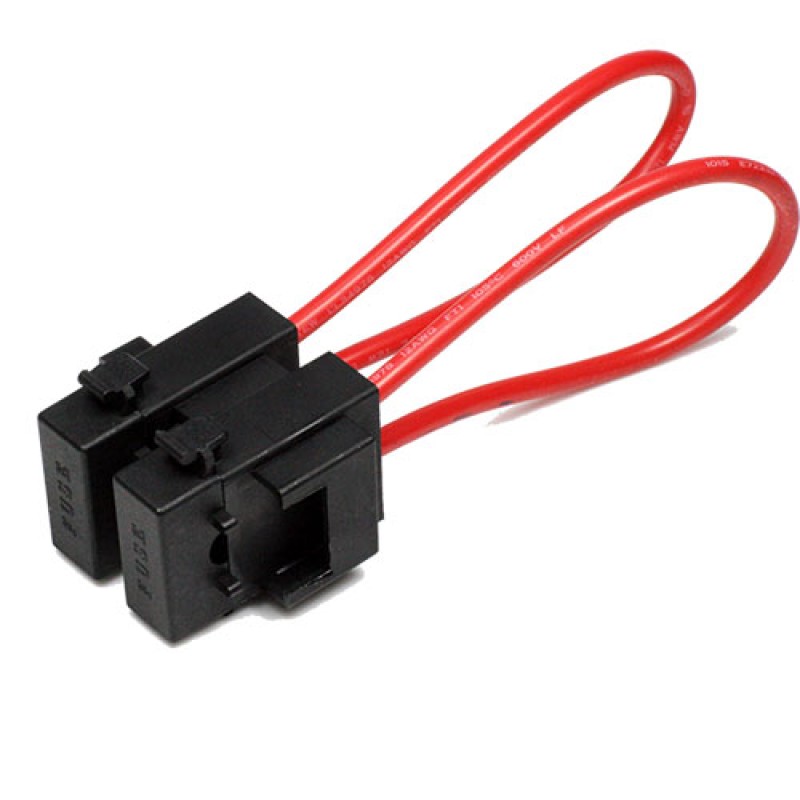

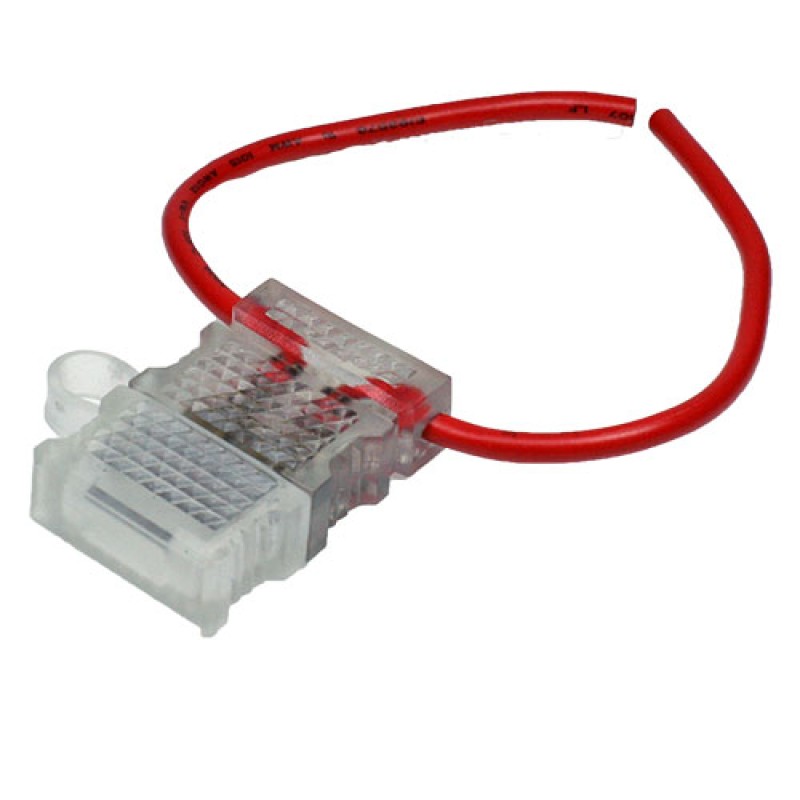

| FH-010 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 10# to 18# AWG | Interlock For Multiple Mounting |

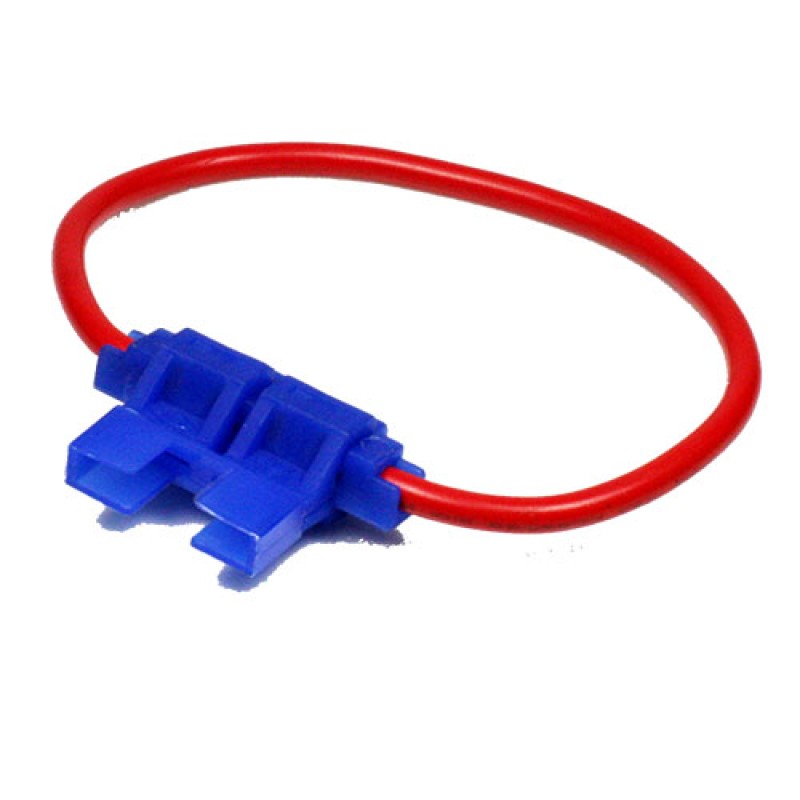

| FH-012 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type |

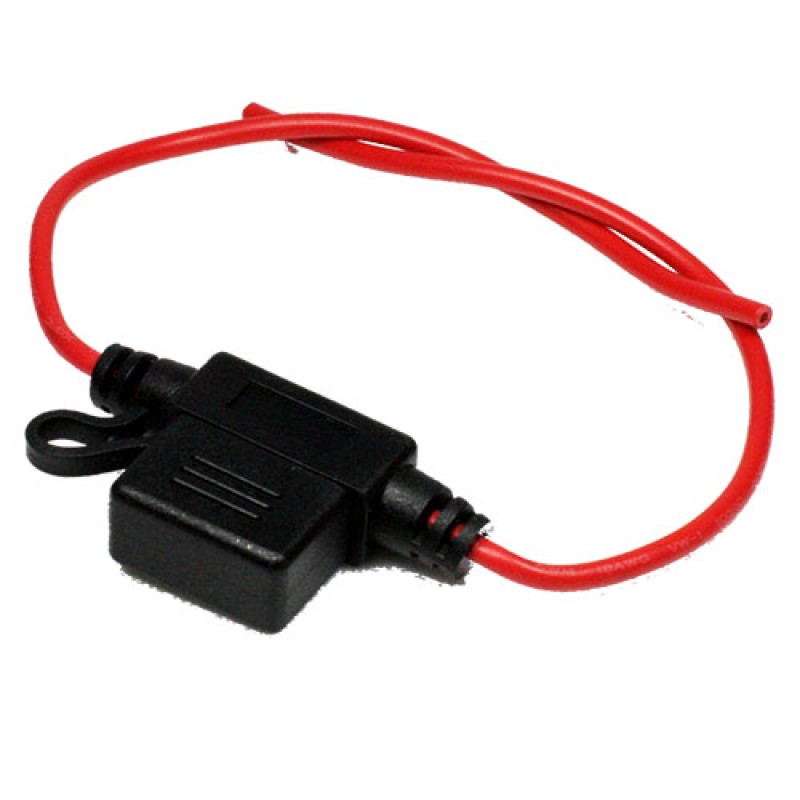

| FH-006P |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1500 V Min. | PVC | 12# to 16# AWG | Heavy Duty Type |

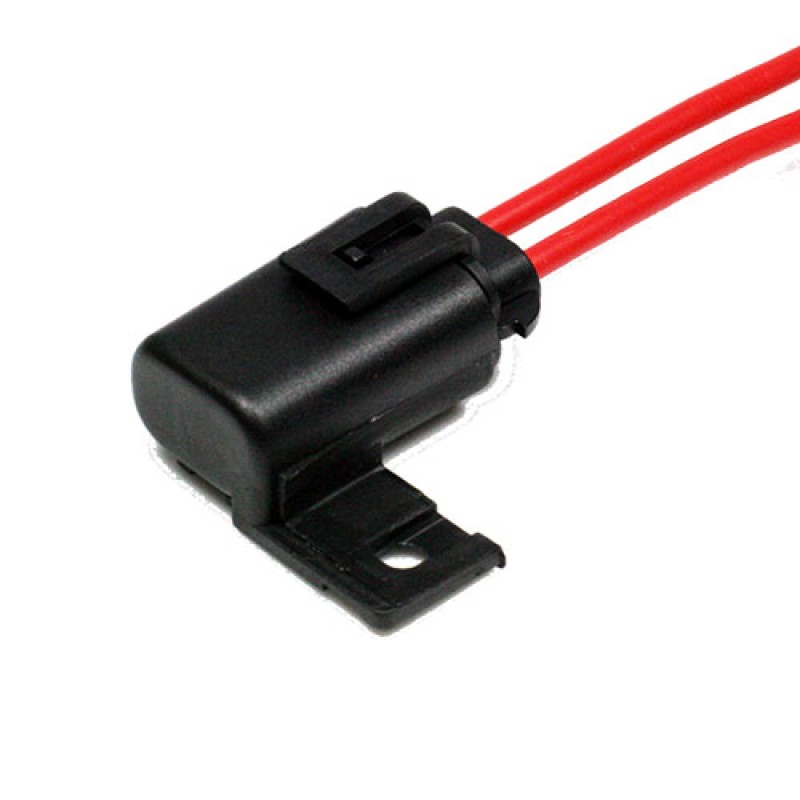

| FH-007 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Hinged Body Type |

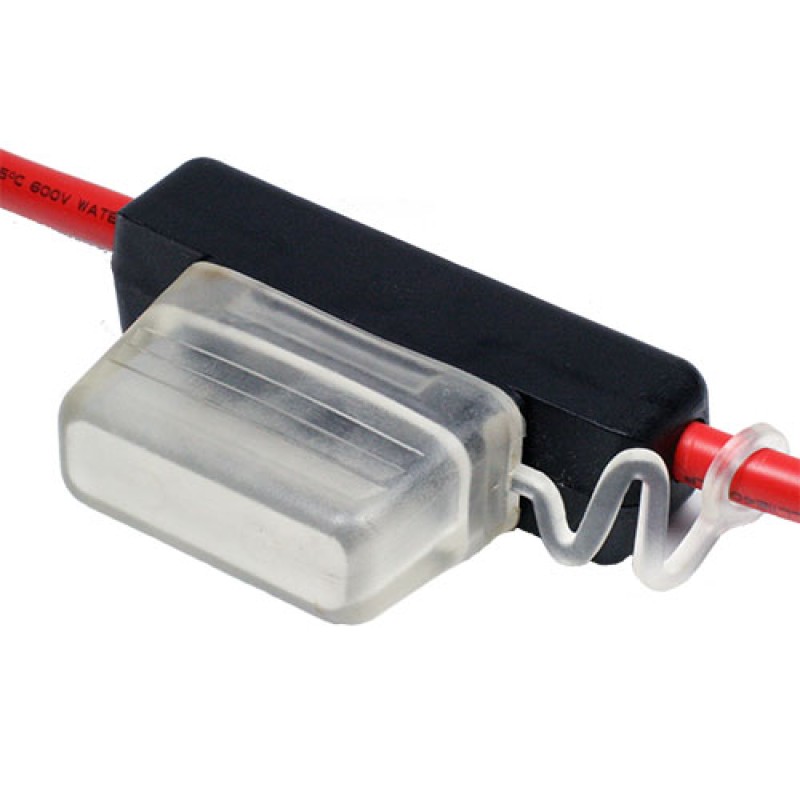

| FH-011 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Hinged Body Type |

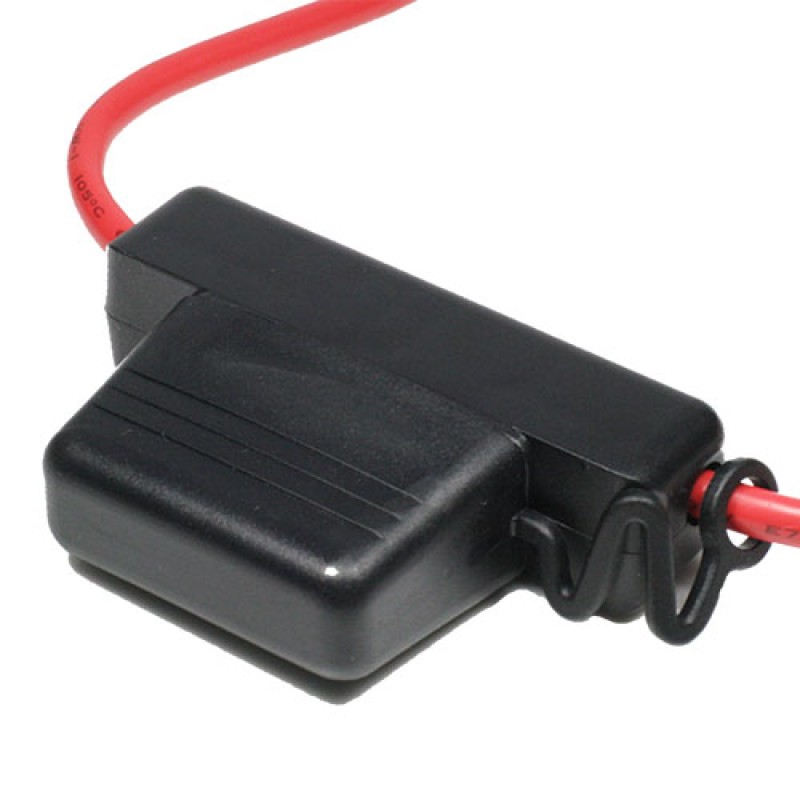

| FH-006WR |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type |

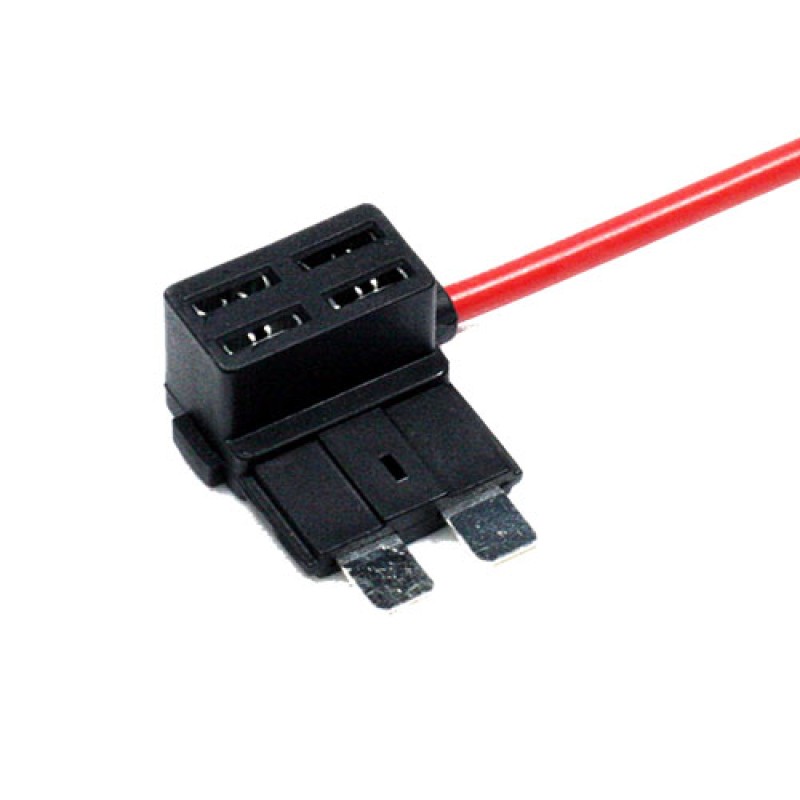

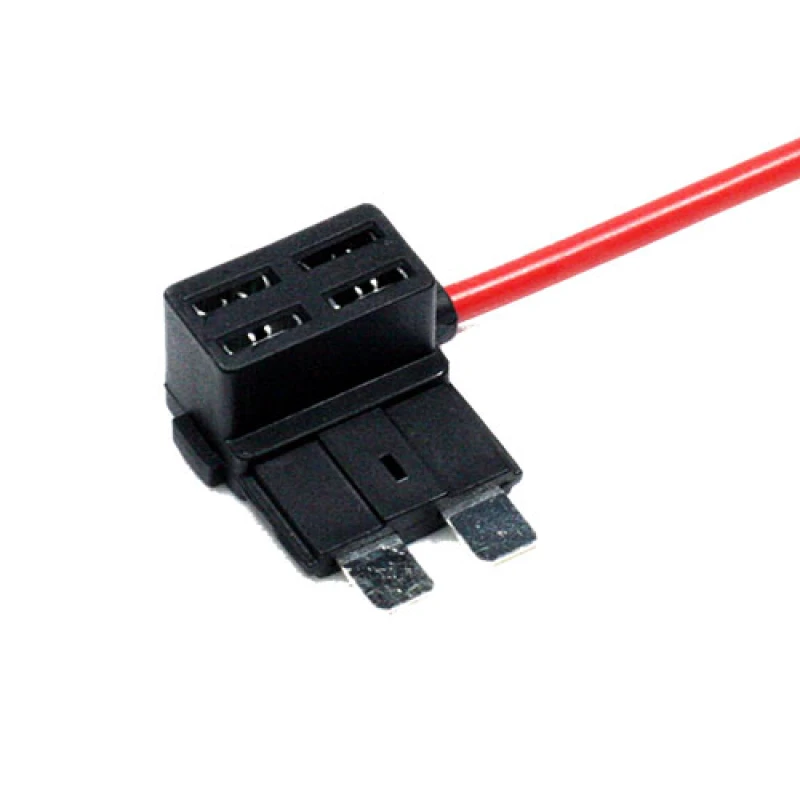

| IFH-003 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | Nylon. | 12# to 18# AWG | Add-a-Circuit Type |
| IFH-001 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type |
| For ASP Mini Blade Type Fuses | ||||||||
| SFH-001 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type |
| SFH-001A |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type |
| IFH-002 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type |
| FH-85533 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Proof Type |
| For AMP (MAX) Blade Type Fuses | ||||||||
| MFH-001 |  |
80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type |
| MFH-001A |  |
80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type |
| IFH-005 |  |
80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type |
Product Packaging
- Standard Package: 100 PCS per polybag.
Product Overview
The Hansor in line blade fuse holder series securely houses blade-type fuses in wiring circuits, delivering reliable overcurrent protection from 10 A to 80 A. This series includes:
- AMP (MAX) Blade Type Fuses: Standard/full-size blade fuses for high-current applications.
- ASP Mini Blade Type Fuses: Compact mini in line fuse holder option for small spaces.
- ATP Blade Type Fuses: Mid-size blade fuses for general-purpose circuits.
As a trusted fuse holder supplier, Hansor ensures stable contacts, durable insulation, and long-lasting performance across all fuse sizes.
Key Features & Specifications
- Current Range: 10 A – 80 A across AMP, ASP, ATP types
- Fuse Compatibility: AMP (MAX), ASP Mini, ATP blade-type fuses
- Contacts: Tin or nickel-plated brass for stable conduction
- Insulation Body: Nylon or PVC for durability and safety
- Insulation Resistance: 100MΩ min @ 500 V DC
- Dielectric Strength: AC 1000–3000 V, 60 seconds
- Wire Options: Supports AWG 4#–18#, customizable lengths
- Special Features: Water-resistant, hinged body, add-a-circuit designs
- Packaging: 100 PCS per polybag
Applications
Ideal for:
- Automotive wiring harnesses and accessory circuits
- Industrial control and power distribution
- Consumer electronics requiring inline fuse protection
- Circuits needing fast and safe fuse replacement
The mini in line fuse holder (ASP) and in line blade fuse holder (AMP/ATP) options allow flexible integration across compact and standard wiring layouts.
Why Choose Hansor
As a professional fuse holder supplier, Hansor delivers:
- Stable electrical contact and secure mounting
- Durable, flame-retardant insulation for long-term reliability
- Flexible fuse and wire compatibility across all AMP, ASP, ATP types
- OEM and custom support with global compliance
*Engineers and OEMs rely on Hansor in line blade fuse holders and mini in line fuse holders for safe, maintainable, and long-lasting circuit protection.
