AFF (Standard Type)
AFF (Standard Type)
Type：AFF

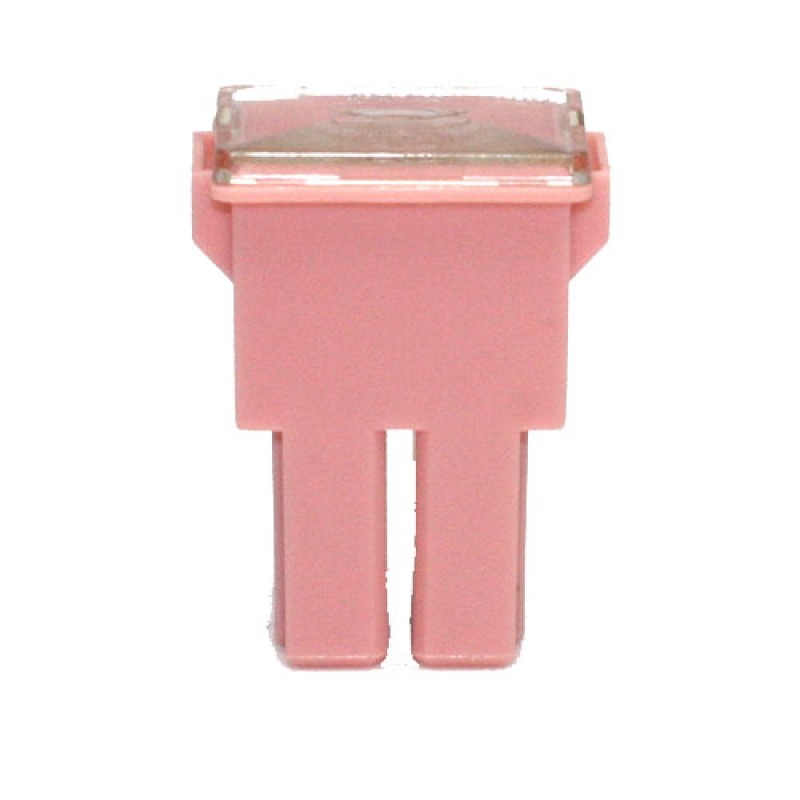

AFF Female Type Cartridge Fuse is the original type fuse link used in power distribution in car fuse boxes. Transparent top cover for easy diagnostic.
Introduction
AFF Female Type Slow Blow Cartridge Fuse.
AFF Female Type Cartridge Fuse is the original type fuse link used in power distribution in car fuse boxes. Transparent top cover for easy diagnostic.
Product Conformity
- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 20 – 60 Amp | 100 hrs | – |
| 135% | 20 – 60 Amp | 60 Sec | 1800 Sec |
| 200% | 20 – 60 Amp | 2 Sec | 60 Sec |
| 350% | 20 – 60 Amp | 0.2 Sec | 7 Sec |
| 600% | 20 – 60 Amp | 0.04 Sec | 1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
|---|---|---|---|
| AFX-20 | 20A | 32VDC | LT. BLUE |
| AFX-30 | 30A | 32VDC | PINK |
| AFX-40 | 40A | 32VDC | GREEN |
| AFX-50 | 50A | 32VDC | RED |
| AFX-60 | 60A | 32VDC | YELLOW |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 5000PCS/carton.
