Automotive Blade Fuse Holder | Blade Fuse Block

PCB Fuse Block for ATP Standard Blade Type Fuse

Specification

Item Number		Description

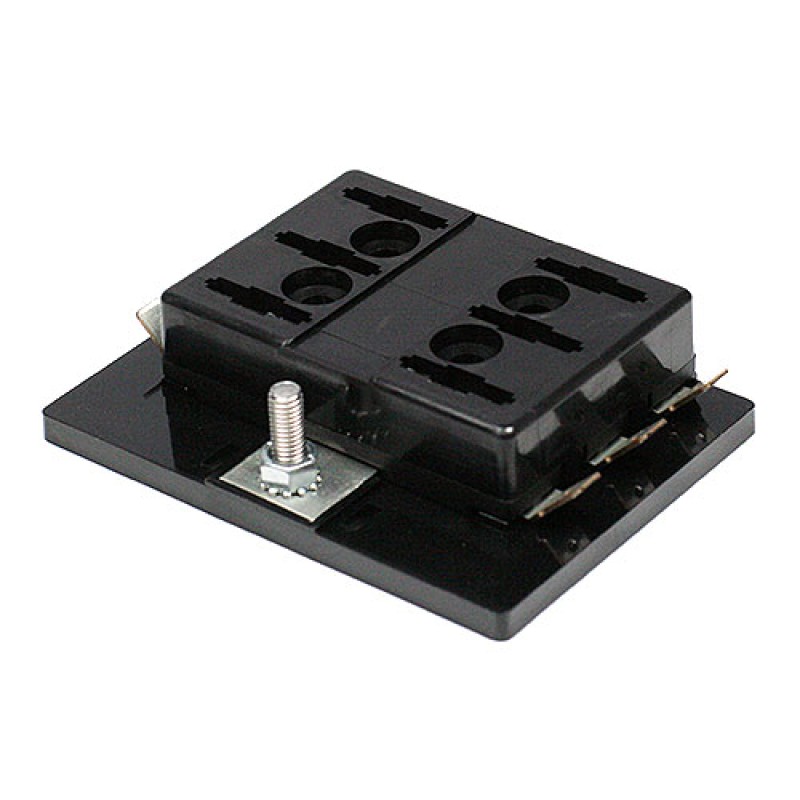

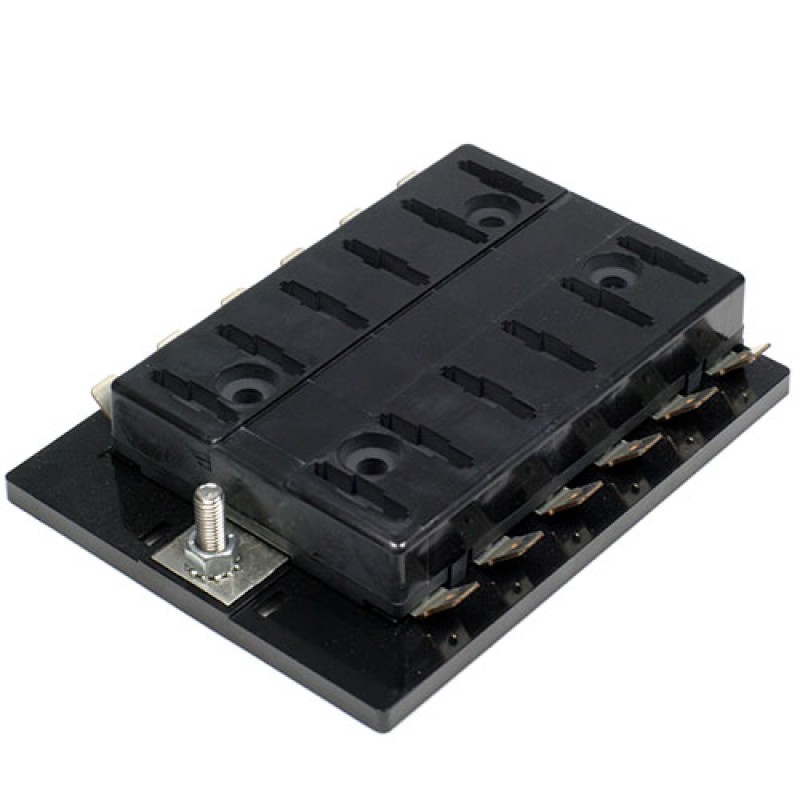

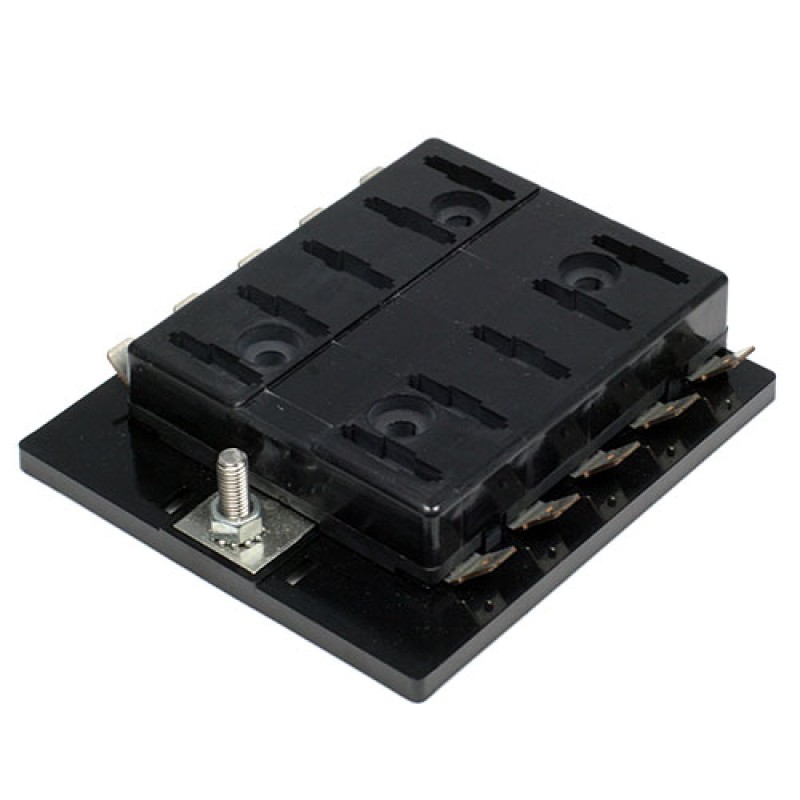

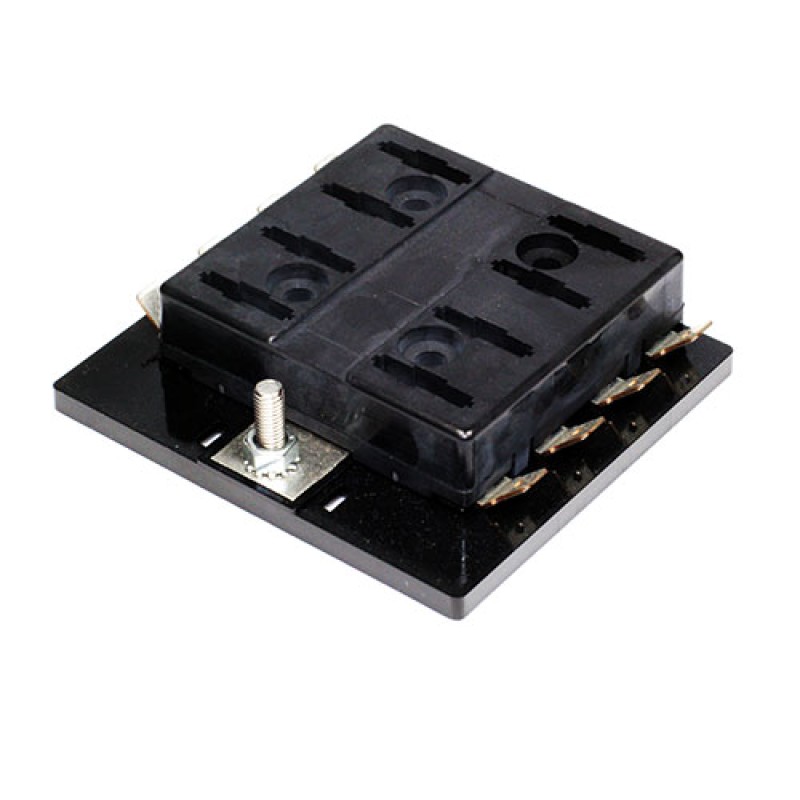

FB-ATP-06		Blade Terminal: Accepts standard blade fuse & circuit breaker Max Current: Output 30A MAX / Input 100A MAX Positions: 1 input; 6 outputs Material: Black UL 94V0 thermoplastic
FB-ATP-08		Blade Terminal: Accepts standard blade fuse & circuit breaker Max Current: Output 30A MAX / Input 100A MAX Positions: 1 input; 8 outputs Material: Black UL 94V0 thermoplastic
FB-ATP-10		Blade Terminal: Accepts standard blade fuse & circuit breaker Max Current: Output 30A MAX / Input 100A MAX Positions: 1 input; 10 outputs Material: Black UL 94V0 thermoplastic
FB-ATP-12		Blade Terminal: Accepts standard blade fuse & circuit breaker Max Current: Output 30A MAX / Input 100A MAX Positions: 1 input; 12 outputs Material: Black UL 94V0 thermoplastic

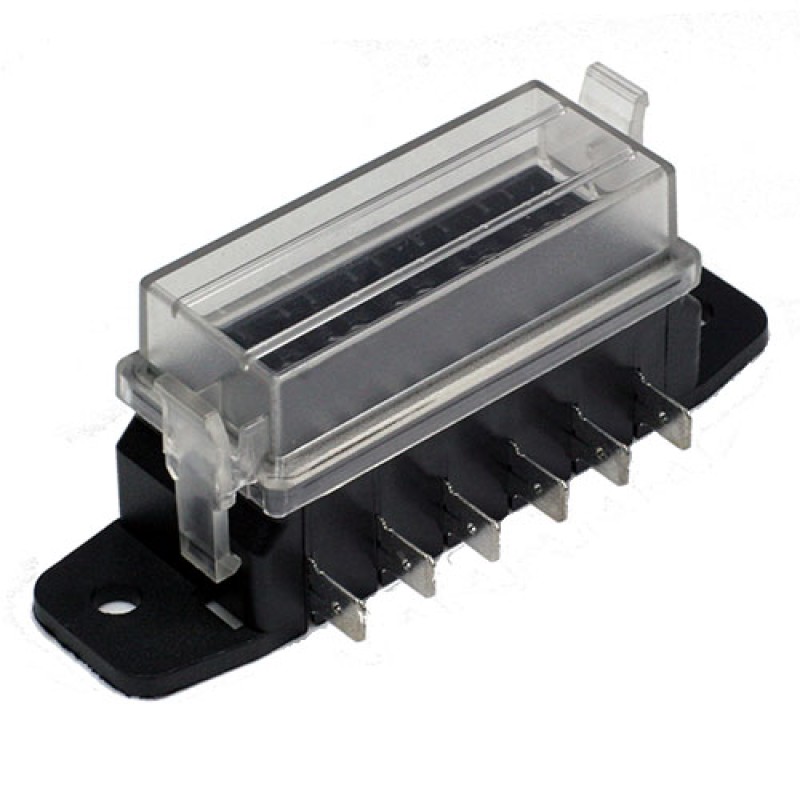

FB-ATP-606		Blade Terminal: Accepts standard blade fuse & circuit breaker Max Current: Output 20A MAX / Input 100A MAX Positions: 6 input; 6 outputs Material: Body: UL 94V0; Cover: Transparent PC w/ rubber seal

Product Packaging

• Standard Package: 1,000 PCS per polybag.

Product Overview

Hansor’s automotive blade fuse holder and blade fuse block series provide a high-performance solution for securing standard blade fuses in automotive and industrial circuits. Designed for reliability and ease of maintenance, our blade fuse blocks ensure stable electrical contact and superior circuit distribution.

Key Features & Specifications

• Universal Compatibility: Accepts standard automotive blade fuses and circuit breakers.
• High Amperage Support: Output up to 30A per circuit with a total input capacity of up to 100A.
• Multi-Way Distribution: Options available in 6, 8, 10, or 12-way blade fuse block configurations.
• Safety First: UL 94 V-0 flame-retardant thermoplastic body for maximum durability.
• Environmental Protection: Water-resistant models available, featuring transparent PC covers and rubber seals.
• B2B Standard Packaging: 1,000 PCS per polybag, ideal for OEM and large-scale assembly.

Applications

The blade fuse block and automotive blade fuse holder series are widely used in:

• Vehicle electrical panels and aftermarket accessories.
• Industrial control boxes and modular power distribution.
• Marine electronics and embedded systems requiring serviceable protection.

Why Choose Hansor

As a professional fuse holder supplier, Hansor focuses on quality and compliance. Every automotive blade fuse holder and blade fuse block we produce undergoes strict testing for low contact resistance and mechanical strength, helping OEMs deliver safer products to the global market.
