Serie SMD1812
SMD1812 Serie
Tipo：SMD1812
Dispositivo de protección de circuitos restablecible automáticamente para uso en electrónica de consumo, ordenadores, etc.

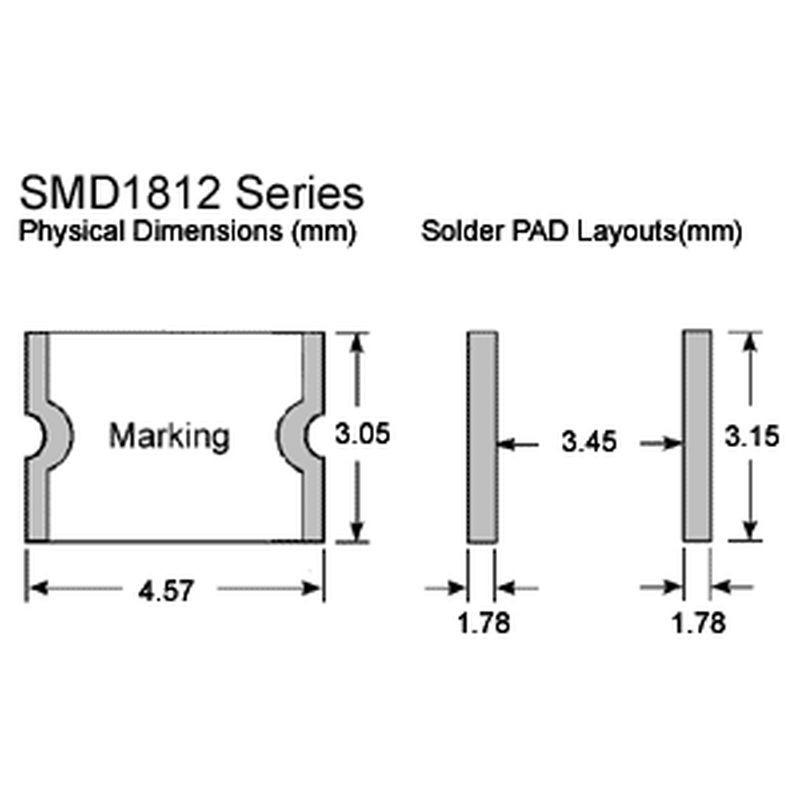

Introducción
SMD1812 Serie PPTC
Dispositivo de protección de circuito autorrestable para uso en electrónica de consumo, computadoras, etc.
Conformidad del producto
- UL, CSA, TUV
- EU RoHS, REACH
Características eléctricas
| Número de modelo | Valores máximos | Tiempo máximo de disparo | Resistencia a 20°C | |||||
|---|---|---|---|---|---|---|---|---|
| Corriente de retención (A) | Corriente de disparo (A) | V máx (V dc) | I máx (A) | Corriente (A) | Time (Sec.) | R min (Ω) | R 1max (Ω) | |
| SMD1812P010TF | 0.10 | 0.30 | 30 | 100 | 0.50 | 1.50 | 1.600 | 15.000 |
| SMD1812P014TF | 0.14 | 0.34 | 60 | 10 | 1.50 | 0.15 | 1.500 | 6.000 |
| SMD1812P020TF | 0.20 | 0.40 | 30 | 100 | 8.00 | 0.02 | 0.800 | 5.000 |
| SMD1812P035TF/30 | 0.35 | 0.75 | 30 | 40 | 8.00 | 0.15 | 0.400 | 1.700 |
| SMD1812P050TF | 0.50 | 1.00 | 15 | 100 | 8.00 | 0.15 | 0.150 | 1.000 |
| SMD1812P050TF/30 | 0.50 | 1.00 | 30 | 100 | 8.00 | 0.15 | 0.150 | 1.000 |
| SMD1812P075TF | 0.75 | 1.50 | 13.2 | 100 | 8.00 | 0.20 | 0.100 | 0.450 |
| SMD1812P075TF/24 | 0.75 | 1.50 | 24 | 100 | 8.00 | 0.20 | 0.110 | 0.290 |
| SMD1812P075TF/33 | 0.75 | 1.50 | 33 | 20 | 8.00 | 0.20 | 0.110 | 0.400 |
| SMD1812P110TF | 1.10 | 2.20 | 6 | 100 | 8.00 | 0.30 | 0.040 | 0.210 |
| SMD1812P110TF/16 | 1.10 | 1.95 | 16 | 100 | 8.00 | 0.50 | 0.060 | 0.180 |
| SMD1812P110TF/24 | 1.10 | 1.95 | 24 | 20 | 8.00 | 0.50 | 0.060 | 0.200 |
| SMD1812P110TF/33 | 1.10 | 1.95 | 33 | 20 | 8.00 | 0.50 | 0.060 | 0.200 |
| SMD18120P125TF/16 | 1.25 | 2.50 | 16 | 100 | 8.00 | 0.40 | 0.050 | 0.140 |
| SMD18120P125TF/6,4L | 1.25 | 2.50 | 6 | 100 | 8.00 | 0.40 | 0.050 | 0.140 |
| SMD1812P150TF/8 | 1.50 | 3.00 | 8 | 100 | 8.00 | 0.30 | 0.040 | 0.110 |
| SMD1812P150TF/12 | 1.50 | 3.00 | 12 | 100 | 8.00 | 0.50 | 0.040 | 0.110 |
| SMD1812P150TF/24 | 1.50 | 3.00 | 24 | 20 | 8.00 | 1.50 | 0.040 | 0.120 |
| SMD1812P160TF/8(4L) | 1.60 | 2.80 | 8 | 100 | 8.00 | 1.00 | 0.030 | 0.100 |
| SMD1812P200TFT | 2.00 | 3.50 | 8 | 100 | 8.00 | 2.00 | 0.020 | 0.070 |
| SMD1812P260TFT | 2.60 | 5.00 | 8 | 100 | 8.00 | 2.50 | 0.015 | 0.047 |
| SMD1812P260TF/12 | 2.60 | 5.00 | 12 | 100 | 8.00 | 5.00 | 0.015 | 0.055 |
| SMD1812P300TF | 3.00 | 5.00 | 6 | 100 | 8.00 | 4.00 | 0.012 | 0.040 |
* V max. = Voltaje máximo que el dispositivo puede soportar sin daño a la corriente nominal.
* I max. = Corriente máxima de fallo que el dispositivo puede soportar sin daño a la tensión nominal.
* I hold = Corriente de retención - corriente máxima a la cual el dispositivo no disparará a 20°C en aire en reposo.
* I trip = Corriente de disparo - corriente mínima a la cual el dispositivo siempre disparará a 20°C en aire en reposo.
* R min. = Resistencia mínima del dispositivo a 20°C antes de dispararse.
* R 1max. = Resistencia máxima del dispositivo a 20°C medida 1 hora después del disparo.
Embalaje del producto
- Los productos SMD se empaquetan en carretes de cinta para máquinas pick-and-place.
- Embalaje estándar:
| Número de pieza | Cantidad por paquete |
|---|---|
| SMD1812P010TF | 1500 |
| SMD1812P014TF | 1500 |
| SMD1812P020TF | 2000 |
| SMD1812P035TF/30 | 1500 |
| SMD1812P050TF | 2000 |
| SMD1812P050TF/30 | 2000 |
| SMD1812P075TF | 2000 |
| SMD1812P075TF/24 | 1500 |
| SMD1812P075TF/33 | 1500 |
| SMD1812P110TF | 2000 |
| SMD1812P110TF/16 | 1500 |
| SMD1812P110TF/24 | 1500 |
| SMD1812P110TF/33 | 1000 |
| SMD1812P125TF/16 | 1500 |
| SMD1812P125TF/6,4L | 2000 |
| SMD1812P150TF/8 | 2000 |
| SMD1812P150TF/12 | 1500 |
| SMD1812P150TF/24 | 1000 |
| SMD1812P160TF/8(4L) | 2000 |
| SMD1812P200TFT | 2000 |
| SMD1812P260TFT | 1500 |
| SMD1812P260TF/12 | 1000 |
| SMD1812P300TF | 1000 |
