Audio Power Distribution Block Series

Power Distribution Block with Fuse protection for high end audio equipments

Specification

Item Number		Description & Dimensions

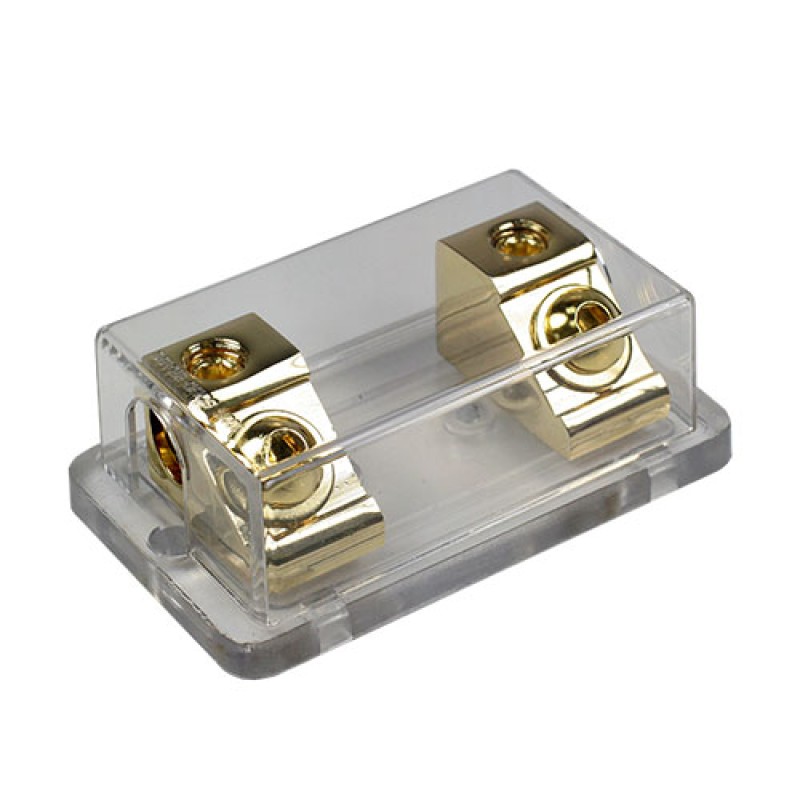

ANL-1		Use ANL Fuse up to 200A Accept up to 1 AWG cable wire Clear snap-on dust cover Weight: 286g Dimension: 102.5 X 61.5 X 35(mm)

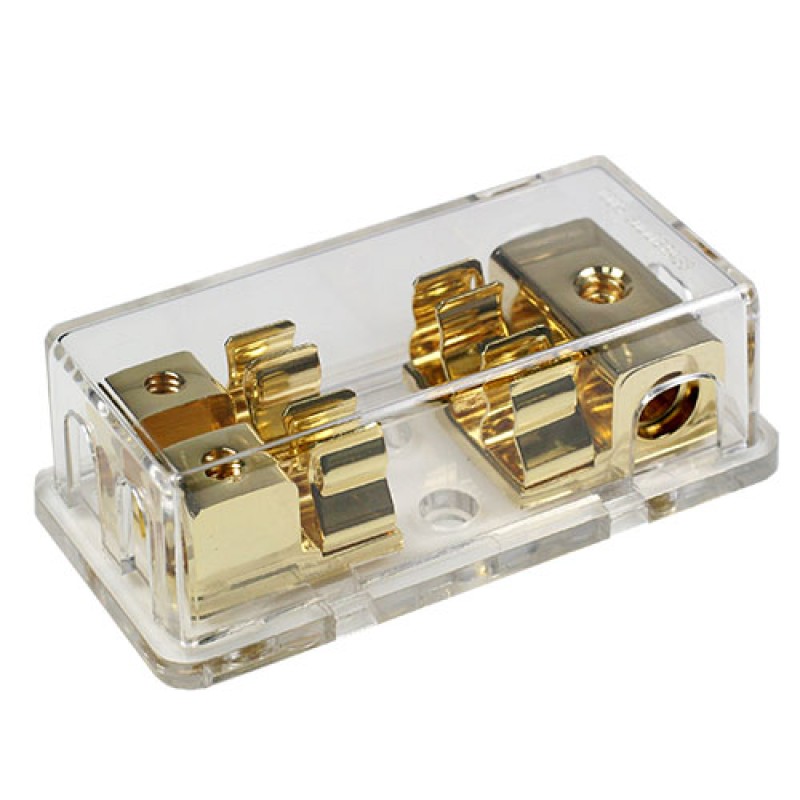

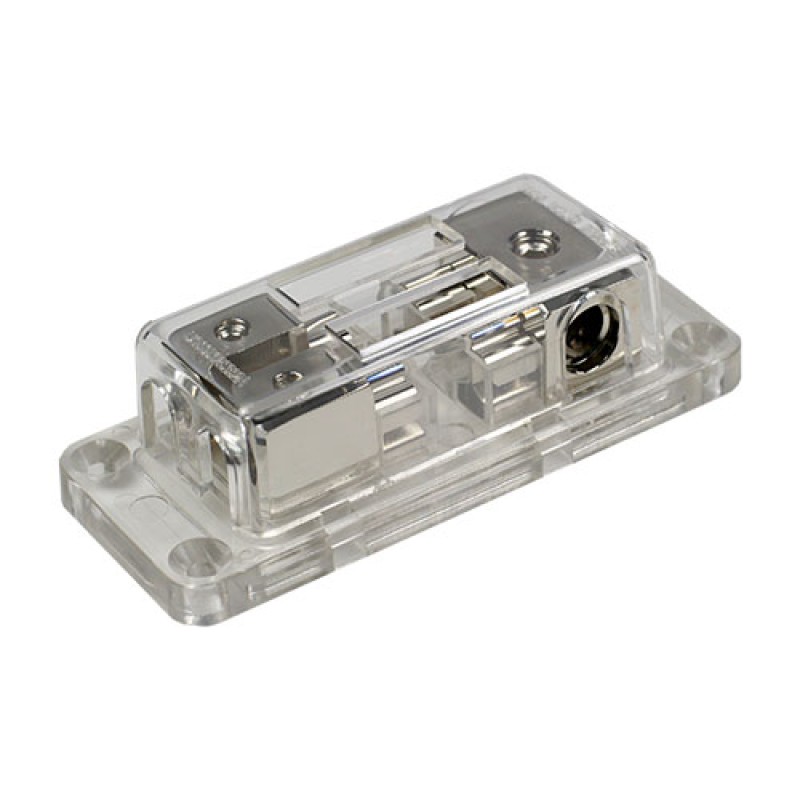

FB-3428		Accept two AUE (5AG, AGU) fuses One 3-way 4AWG input; Two 8AWG output Weight: 223g Dimension: 101.7 X 51.8 X 32.5(mm)

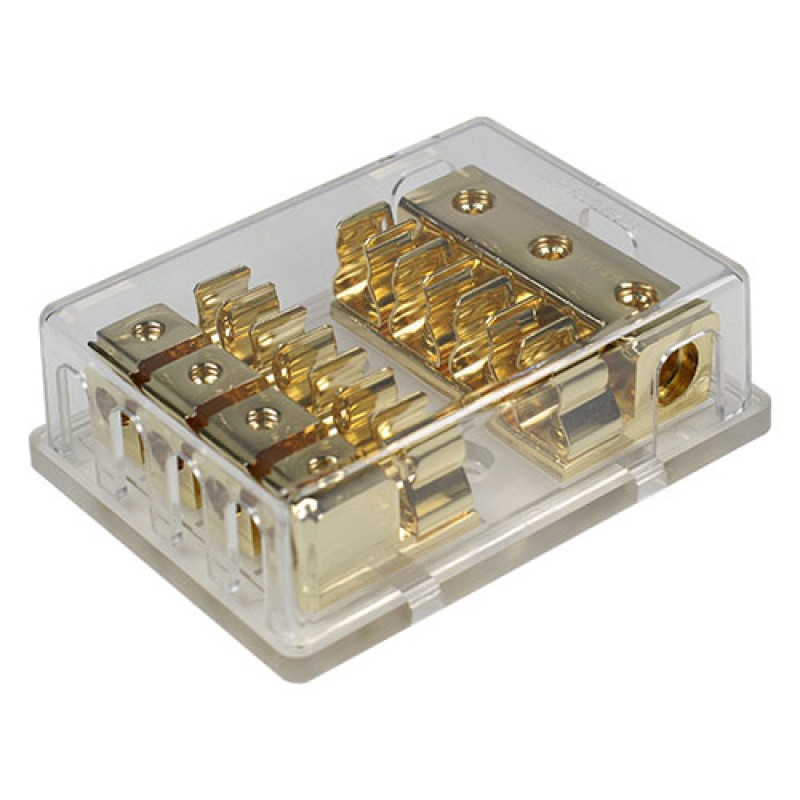

FB-3448		Accept four AUE (5AG, AGU) fuses One 3-way 4AWG input; Three 8AWG output Weight: 299g Dimension: 101.7 X 60.2 X 32(mm)
MFB-3428		Accept TWO AMP (MAXI) fuses One 3-way 4AWG input; Two 8AWG output Weight: 166g Dimension: 107.6 X 44 X 28(mm)

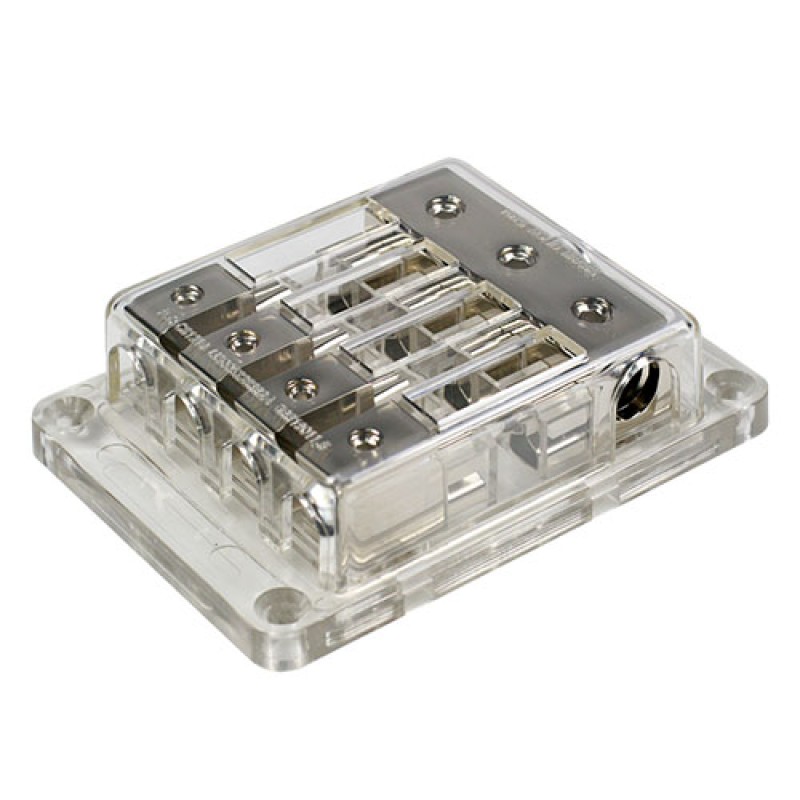

MFB-3448		Accept Four AMP (MAXI) fuses One 3-way 4AWG input; Four 8AWG output Weight: 347g Dimension: 107.6 X 77.6 X 28(mm)

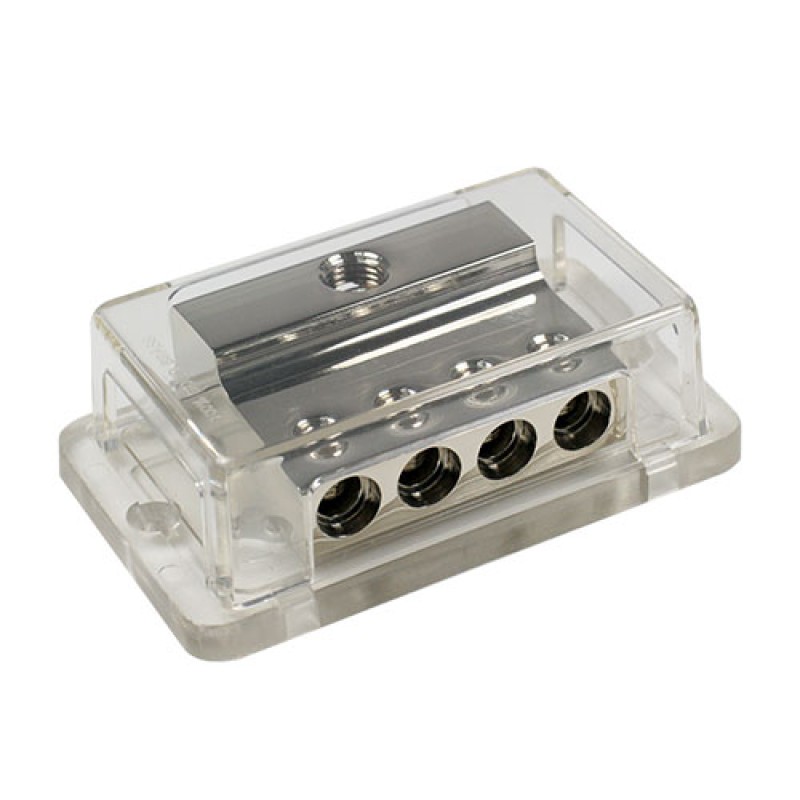

PB-1044		One 1/0 AWG input; Four 4AWG output Weight: 430g Dimension: 102.4 X 61.5 X 33(mm)

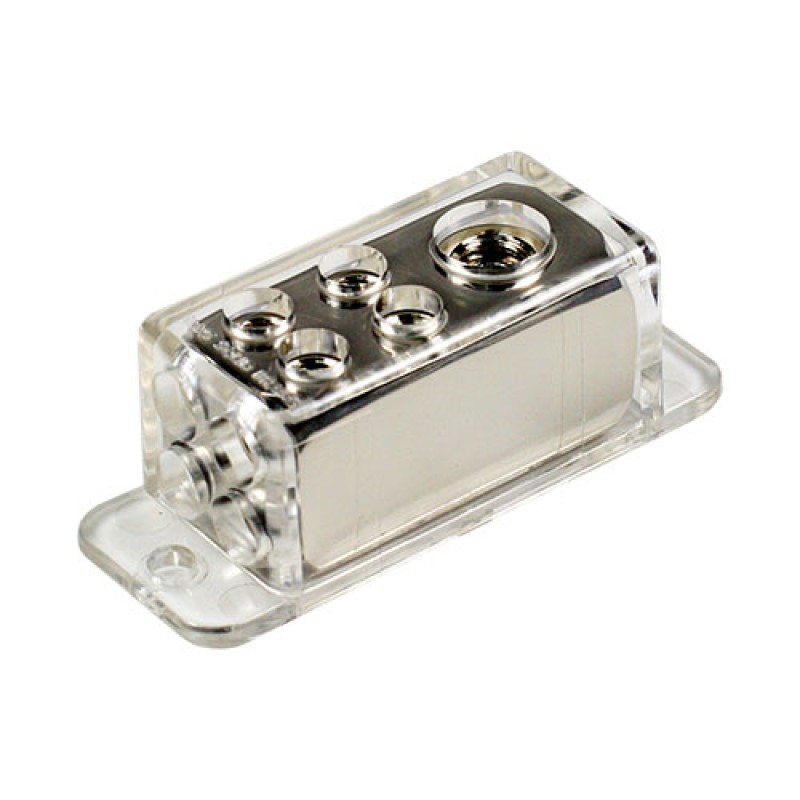

PB-1448S		One 4 AWG input; Four 8 AWG output Weight: 108g Dimension: 68.6 X 25.3 X 24(mm)

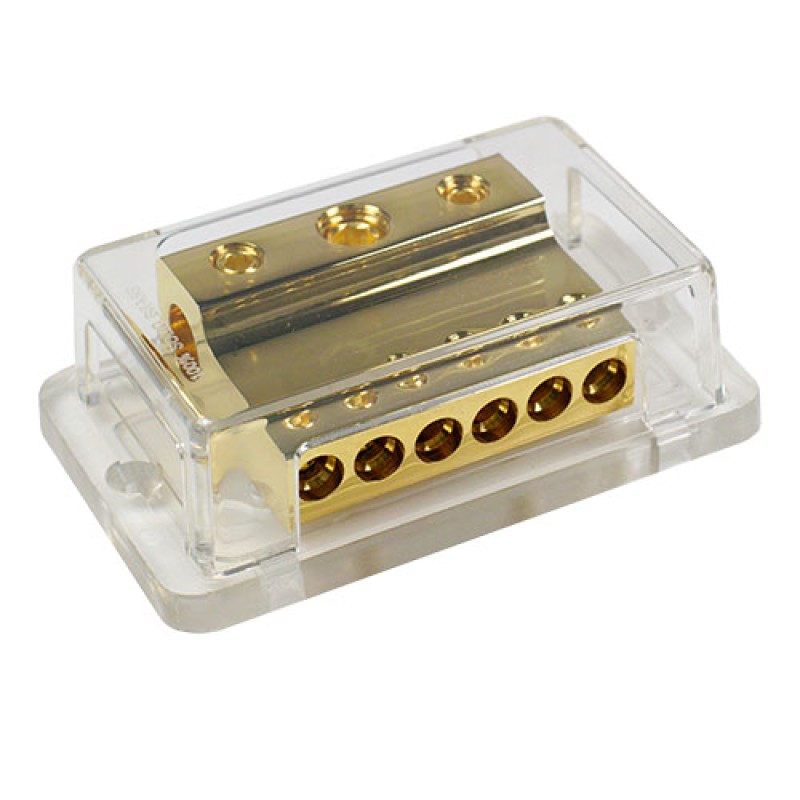

PB-102468		One 1/0 AWG input; Two 4 AWG outputs; Six 8 AWG output; Weight: 405g Dimension: 102.4 X 61.5 X 33(mm)

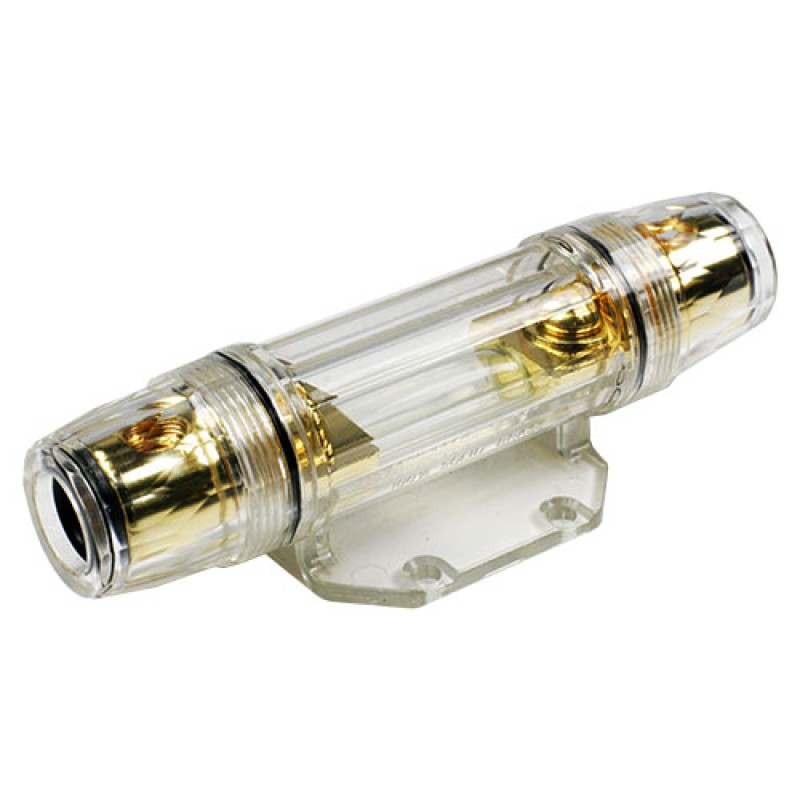

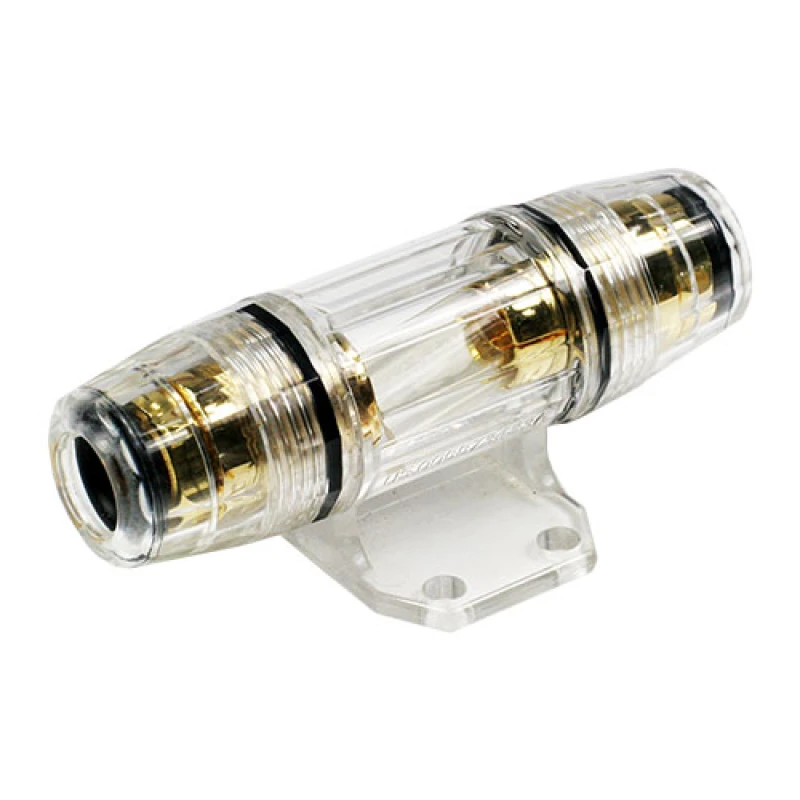

508W		Screw-In Type, Waterproof, fits AUE Fuses One 4AWG & 8AWG Wire Weight: 69g Dimension: 83 x 42 X 33(mm)

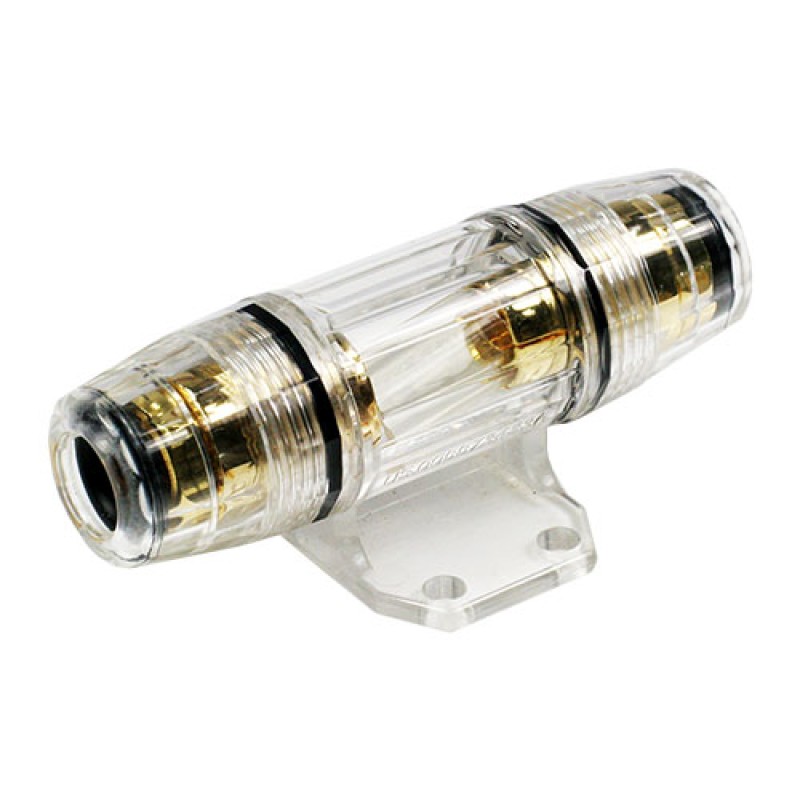

ANL-W3		Screw-In Type, Waterproof, fits ANL Fuses 0AWG & 4AWG wire version available Weight: 296g Dimension: 141.5 x 50 X 41.5(mm)

產品包裝 (Product Packaging

• Standard Package: 50 PCS per carton.

Hansor audio power distribution block products are engineered to support high‑current power distribution with integrated fuse protection. These power blocks are designed with durable materials and capable of accepting large cable gauges and multiple output lines, making them ideal for automotive audio installations, industrial systems, and custom electrical layouts where robust current handling and safety are critical.

Key Features & Specifications

Hansor power distribution blocks combine solid construction with flexible protection options, including:

• Gold & Nickel‑Plated Brass Blocks: Low resistance construction to maximize power transfer for high‑end audio and demanding circuits.
• High Current Capability: Certain models accept ANL fuses up to 200 A, fitting heavy‑duty power distribution needs.
• Multi‑Way Outputs: Configurations with 3‑way, 4‑way, and more outputs allow simplified power routing from single power inputs.
• Multiple Fuse Options: Some blocks accept tube fuses such as AUE (5AG/AGU) or AMP (MAXI) fuses, combining distribution and protection in one unit.
• Clear Protection: Features such as snap‑on dust covers or waterproof housings enhance durability and protect internal connections.

Applications

Hansor power blocks are commonly used in:

• Automotive Audio: Power systems where stable, high‑current distribution is essential.
• Custom Vehicles: Electrical layouts with multiple power loads and aftermarket accessories.
• Industrial Panels: Control cabinets requiring powerful and organized electrical distribution.
• Mobile Electronics: Amplifier systems where low resistance and high reliability are key.

Why Choose Hansor Power Blocks

With decades of experience in fuse and power accessory design, Hansor offers dependable audio power distribution block solutions that integrate power routing and fused safety into one unit. Our manufacturing standards ensure consistent performance, long‑term reliability, and compatibility with a range of vehicles and industrial equipment.
