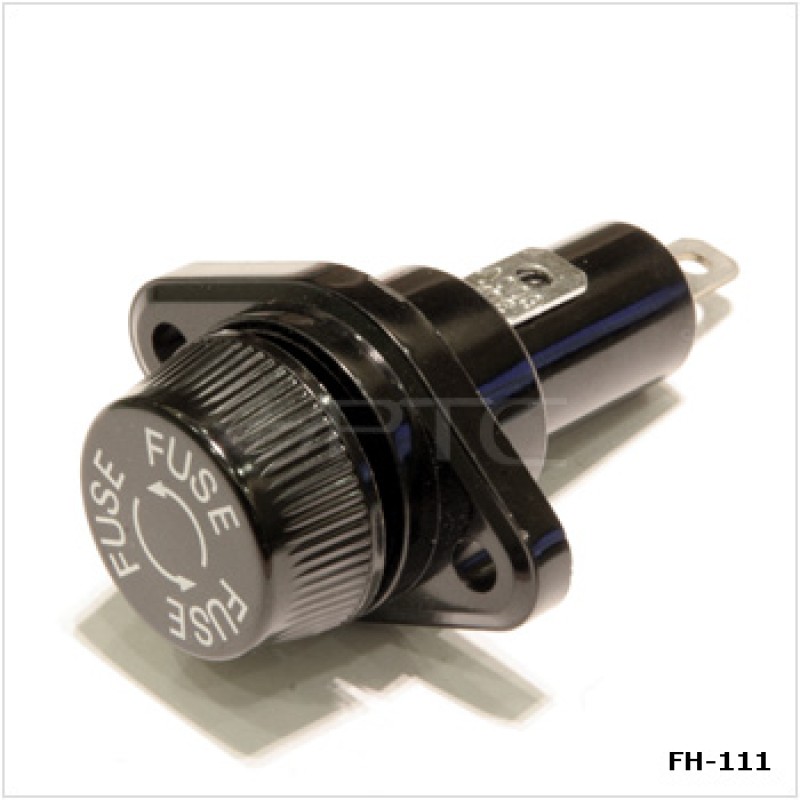

10x38mm Fuse Holder for Panel Mount Protection
For Ø10.3mm Tube Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Introduction
Panel Mount Fuse Holder for Ø10.3mm Tube Fuse
．Insulationg Body: Flame retarding UL 94 V0 Thermoplastic material
．Contact Terminals: Nickle or Tin Plated Copper Alloy
Specification
| Item Number | Maximum Current | Insulation Resistance At 500 V DC | Contact Resistance | Dielectric Strength for 60 seconds | Knob Type / Applicable Fuse Size | |
|---|---|---|---|---|---|---|
| FH - 111 |  |
30 A 600 V | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | Screw Knob For 10.3 x 38.1 mm (5AG) Fuses |
Product Packaging
- **Standard Package:** 1,000 PCS per polybag.
Product Overview
Hansor’s 10x38mm fuse holder (FH-111) is a reliable panel mount for 10.3 × 38 mm tube fuses, offering secure installation and easy replacement. Built with flame-retardant UL 94 V-0 thermoplastic and plated copper alloy contacts, it ensures durable, safe circuit protection.
Key Features
- Panel mount design: Engineered for secure installation in various control environments.
- High Electrical Rating: Supports 30 A / 600 V with high insulation and dielectric strength.
- Quick Serviceability: Screw knob allows quick fuse replacement without complex tools.
- Compatibility: Perfectly supports 10.3 × 38 mm (5AG) tube fuses.
Applications
Ideal for various systems requiring easy fuse maintenance, including:
- Automotive panels and dashboards
- Industrial control systems and machinery
- Consumer electronics and power modules
*As a trusted panel mount fuse holder factory and fuse holder manufacturer, Hansor delivers reliable 10x38mm fuse holders with proven quality and long-term performance.
