Fuse Tester and Puller – Multi Function Tester

FT-1 Combination Fuse Tester/Puller

Features (Specification)

• Design to identify blown fuse in fuse panels and fuse boxes
• Adjustable contact probes to fit different size fuse
• Green LED lights up to indicate good fuse; if LED does not light up, means the fuse is blown. Use the reverse tip to pull out blown fuse for replacement

Product Images & Operation Directions

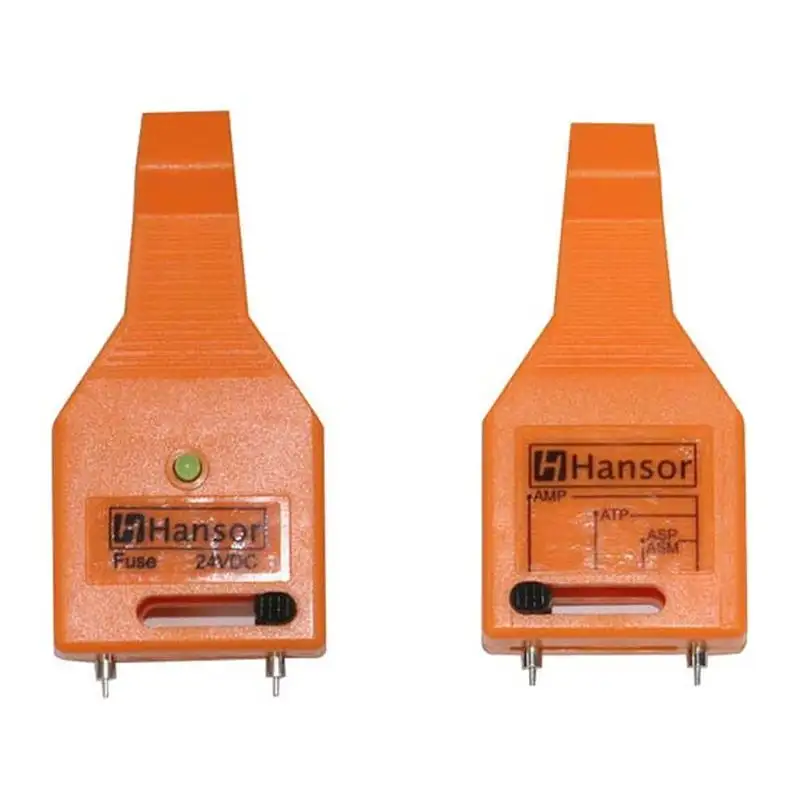

Product Image:

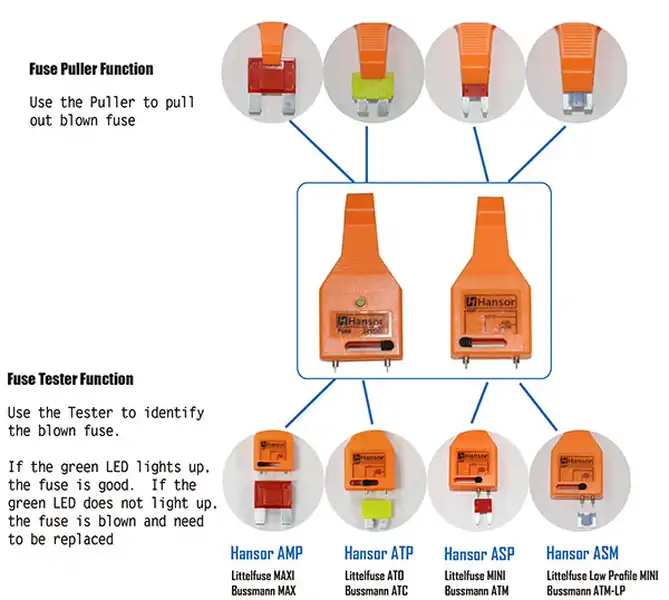

Operation Directions:

Product Packaging

• Standard Bulk Package: 25 PCS/inner box; 500 PCS/export carton
• Standard Retail Package: 1 PCS/blister pack; 20 PCS/inner box; 300 PCS/export carton

The FT-1 is a compact fuse tester and puller designed to quickly check and remove blown fuses from automotive and electronic panels. The integrated green LED lights up for functional fuses; if it remains dark, the fuse is blown and ready for immediate replacement using the built-in tool.

Supported Fuse Types

The FT-1 tester supports a wide range of automotive blade fuses, ensuring compatibility with major brands:

• Hansor AMP: Littelfuse MAXI, Bussmann MAX
• Hansor ATP: Littelfuse ATO, Bussmann ATC
• Hansor ASP: Littelfuse MINI, Bussmann ATM
• Hansor ASM: Littelfuse Low Profile MINI, Bussmann ATM-LP

Key Features

• Adjustable Contact Probes: Easily slides to fit different fuse pin widths for versatile testing.
• Instant LED Indicator: Provides clear visual confirmation for fast blown fuse detection.
• 2-in-1 Design: Combines a precise tester with a built-in puller function for safe and easy removal.
• Ergonomic Grip: Compact and lightweight, perfect for one-handed operation in tight fuse boxes.

Applications

The FT-1 is an essential tool for:

• Automotive Maintenance: Quick diagnostics of fuse panels in cars, trucks, and RVs.
• Household Electronics: Troubleshooting power modules and consumer devices.
• Industrial Circuits: Efficient on-site testing to reduce equipment downtime.
