Type：JSO

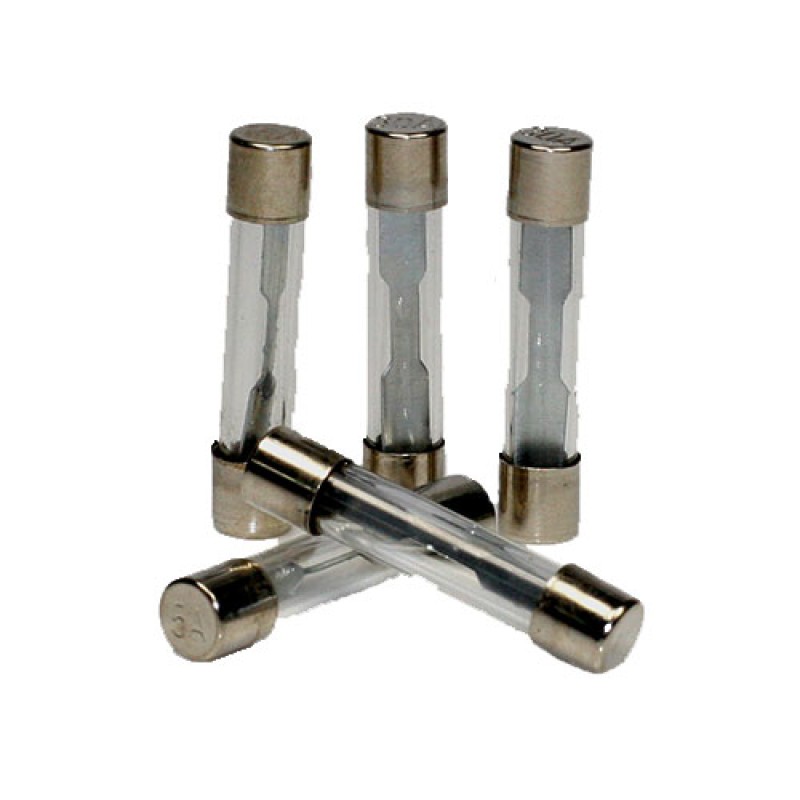

JSO Glass Tube Fuse is commonly used in old model Japanese cars as circuit protection device for electronics. Nickel plated brass cap to ensure the fuse is corrosion resistant further improve connectivities between thee fuse and terminals.
Introduction
JSO Glass Tube Automotive Fuse.
JSO Glass Tube Fuse is commonly used in old model Japanese cars as circuit protection device for electronics. Nickel plated brass cap to ensure the fuse is corrosion resistant further improve connectivities between the fuse and terminals.
Product Conformity
- JASO D601
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 135% | 0.5 A – 40 A | – | 1 hr |
| 150% | 1 A – 20 A | – | 15 Sec |
| 150% | 25 A – 30 A | – | 20 Sec |
| 200% | 40 A | – | 60 Sec |
Order Information

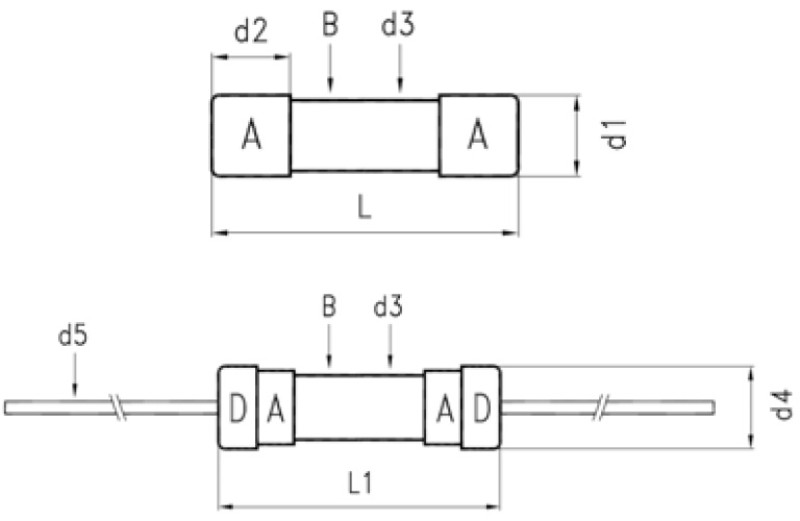

| Part Number | Amperage Rating | Voltage Rating | Dimension (mm) |
|---|---|---|---|
| JSO-0.5 | 0.5A | 32V | Ø6.3 x 30 |
| JSO-1 | 1A | 32V | Ø6.3 x 30 |
| JSO-1.5 | 1.5A | 32V | Ø6.3 x 30 |
| JSO-2 | 2A | 32V | Ø6.3 x 30 |
| JSO-2.5 | 2.5A | 32V | Ø6.3 x 30 |
| JSO-3 | 3A | 32V | Ø6.3 x 30 |
| JSO-4 | 4A | 32V | Ø6.3 x 30 |
| JSO-5 | 5A | 32V | Ø6.3 x 30 |
| JSO-6 | 6A | 32V | Ø6.3 x 30 |
| JSO-7.5 | 7.5A | 32V | Ø6.3 x 30 |
| JSO-10 | 10A | 32V | Ø6.3 x 30 |
| JSO-15 | 15A | 32V | Ø6.3 x 30 |
| JSO-20 | 20A | 32V | Ø6.3 x 30 |
| JSO-25 | 25A | 32V | Ø6.3 x 30 |
| JSO-30 | 30A | 32V | Ø6.3 x 30 |
| JSO-35 | 35A | 32V | Ø6.3 x 30 |
| JSO-40 | 40A | 32V | Ø6.3 x 30 |
Product Packaging
- OEM Package: 1000PCS/polybag
- Export Packaging: 1000PCS/polybag, 10,000PCS/carton.
