In‑Line 6.3mm Tube Fuse Holder | Fuse Holder Supplier
For Ø6.3mm Tube Fuse
With other wire size or lengths are available on special order
To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
#Catalog Code: (Follow the sequence when ordering)
Introduction

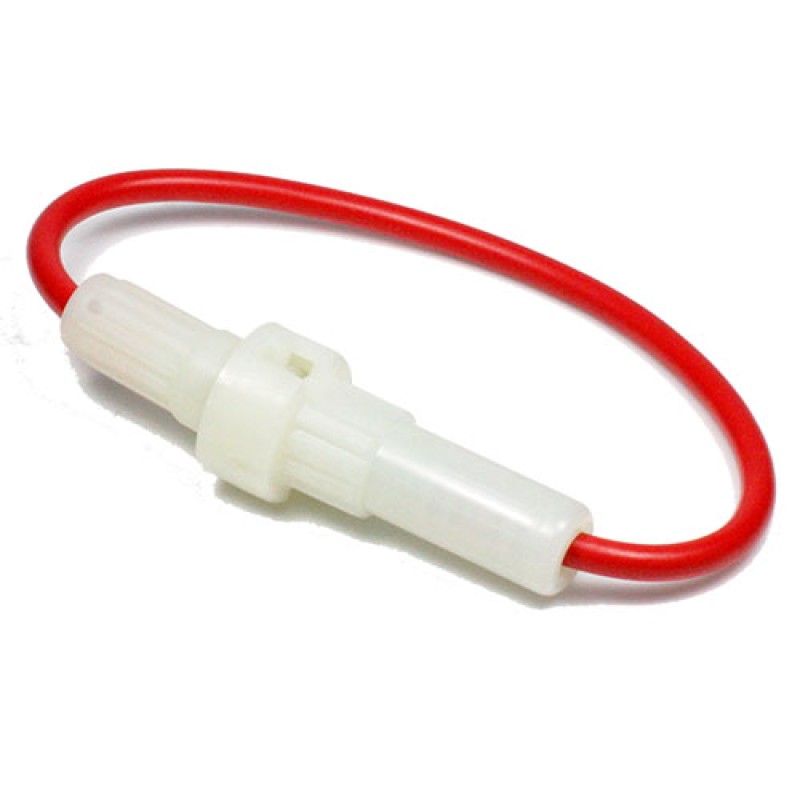

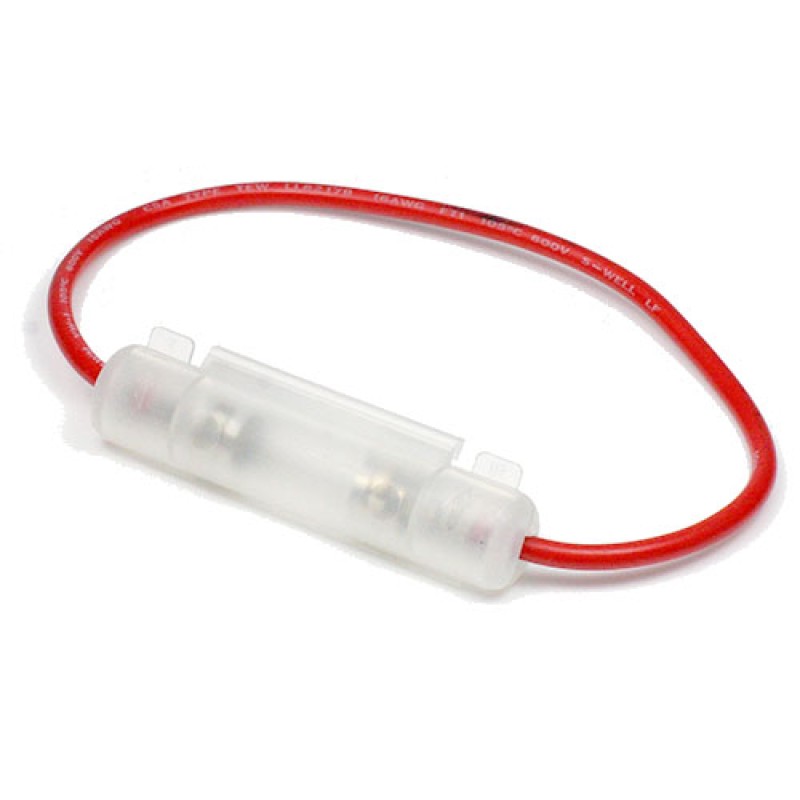

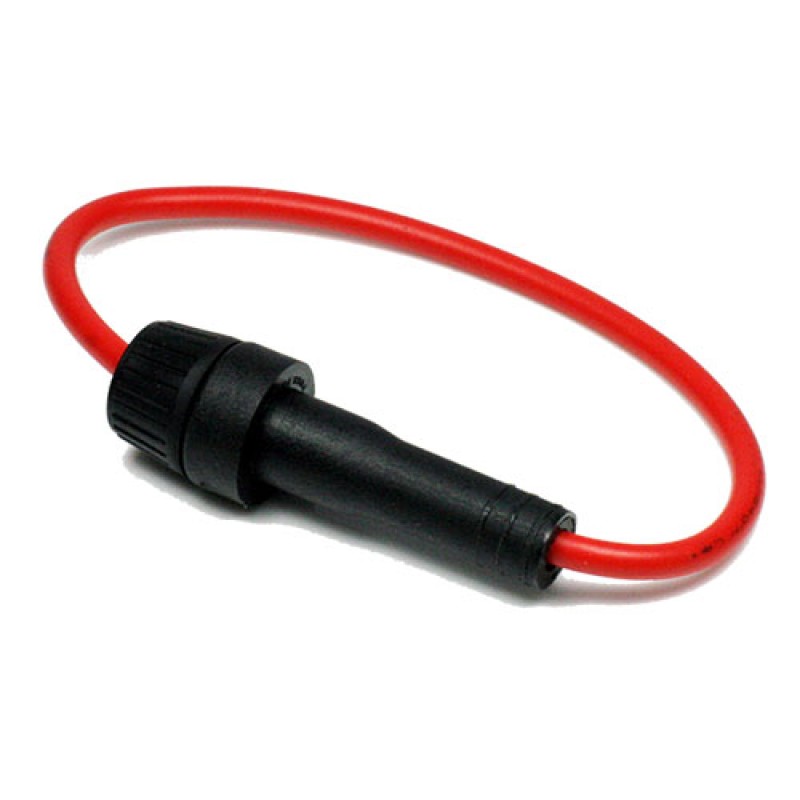

In-Line Fuse Holder for Ø6.3mm Tube Fuse
- Contact: Brass, Tin/Nickle Plated
- With other wire size or lengths are available on special order
- To install fuses with "Loop" type wires, simply cut loop into two form separate wires of desired length.
- Catalog Code Example:
Specification
| Item Number | Maximum Current | Insulation Resistance At 500 V DC | Contact Resistance | Dielectric Strength for 60 seconds | Body Material | Lead Wire in Loop | Type | |
|---|---|---|---|---|---|---|---|---|

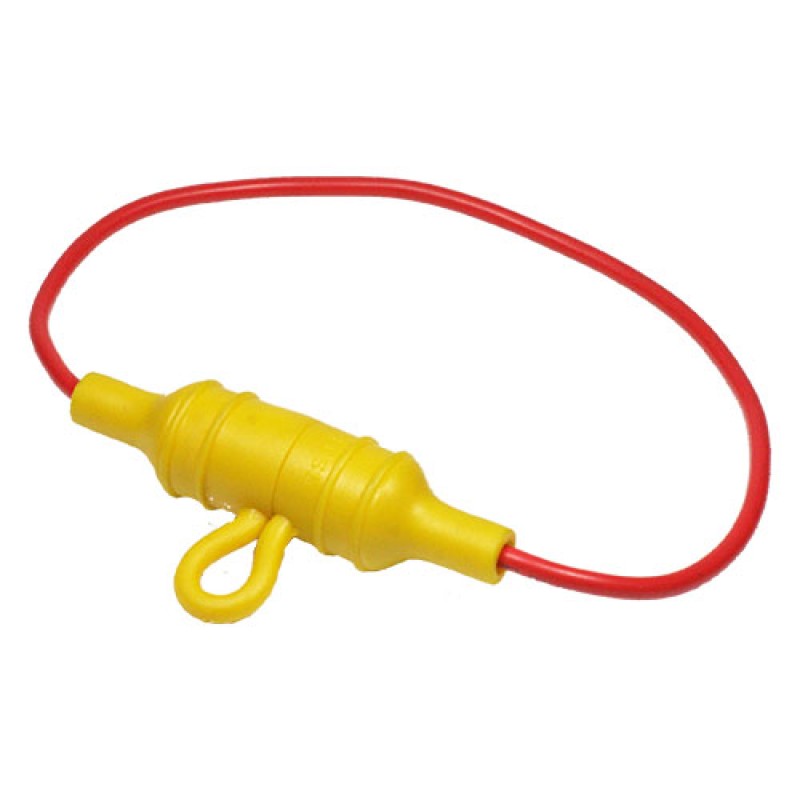

| FH-204 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Polycarbonate P.C. | 14# to 20# AWG | Interlock Type |

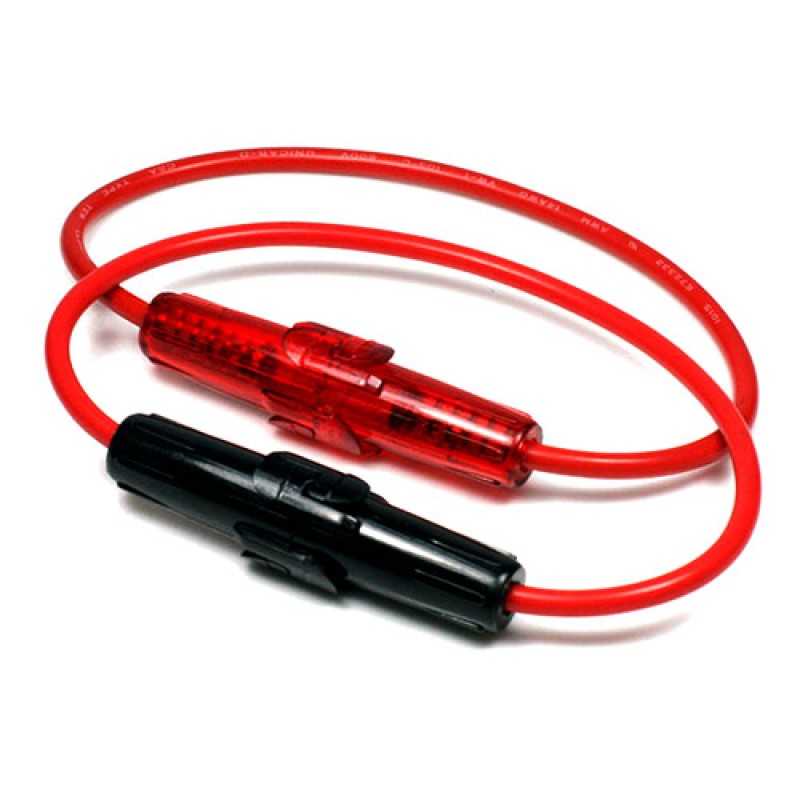

| FH-212 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon PA 66 | 14# to 20# AWG | Hinged Body Type |
| FH-207 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | P.P. | 14# to 20# AWG | Hinged Body Type |
| FH-208 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1500 V Min. | Nylon PA 6 | 14# to 20# AWG | Hinged Body Type |
| FH-201 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.P. | 16# to 20# AWG | Bayonet Type |
| FH-206 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 12# to 20# AWG | Bayonet Type |
| FH-210 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Nylon | 10# to 18# AWG | Heavy Duty Bayonet |
| FH-211 |  |
40 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Nylon Glass Fiber | 10# to 16# AWG | Heavy Duty Bayonet |
| FH-202 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 14# to 20# AWG | Screw Type |
| FH-203 |  |
30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 10# to 20# AWG | Bayonet Type |
| FH-306 |  |
10 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | PVC | 12# to 20# AWG | Snap Lock Type |
| FH-307 |  |
20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Bayonet Type |
| FH-315 |  |
15 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 2000 V Min. | Bakelite | 12# to 20# AWG | Screw Type |
Product Packaging)
- Standard Package: 100 PCS per polybag.
Product Overview
The in-line 6.3 mm tube fuse holder from Hansor securely houses Ø6.3 mm tube fuses in wire-in-line circuits, offering reliable overcurrent protection for automotive, industrial, and electronic applications. This model supports 10–40 A, providing flexibility across multiple load requirements.
As a professional fuse holder supplier, Hansor ensures robust construction, stable electrical contact, and convenient fuse replacement for end-users and technicians.
Key Features & Specifications
- Current Range: 10 A – 40 A
- Fuse Size: Ø6.3 mm tube fuse
- Insulation: Flame-retardant thermoplastic / nylon body
- Contacts: Nickel-plated or tin-plated copper alloy
- In-Line Design: Allows fuse replacement without disassembling wiring
- Flexible Wiring: Supports different wire gauges and lengths for installation
- Durable & Safe: High-quality materials provide long-term circuit protection
Applications
Ideal for:
- Automotive wiring harnesses and vehicle accessories
- Industrial control circuits and power distribution
- Battery and power supply protection
- Consumer electronics requiring easy in-line fuse access
This holder simplifies maintenance while ensuring reliable protection across various applications.
Why Choose Hansor
Hansor, a trusted fuse holder supplier, offers in-line 6.3 mm tube fuse holders with:
- Stable electrical contact and secure mounting
- Durable, flame-retardant materials
- Easy installation and fuse servicing
- Reliable performance for 10–40 A circuits
*Engineers and OEMs rely on Hansor for safe, high-quality, and long-lasting circuit protection.
