Type：CSMD0402
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Thin film ceramic body is excellent against soldering heat.
Introduction

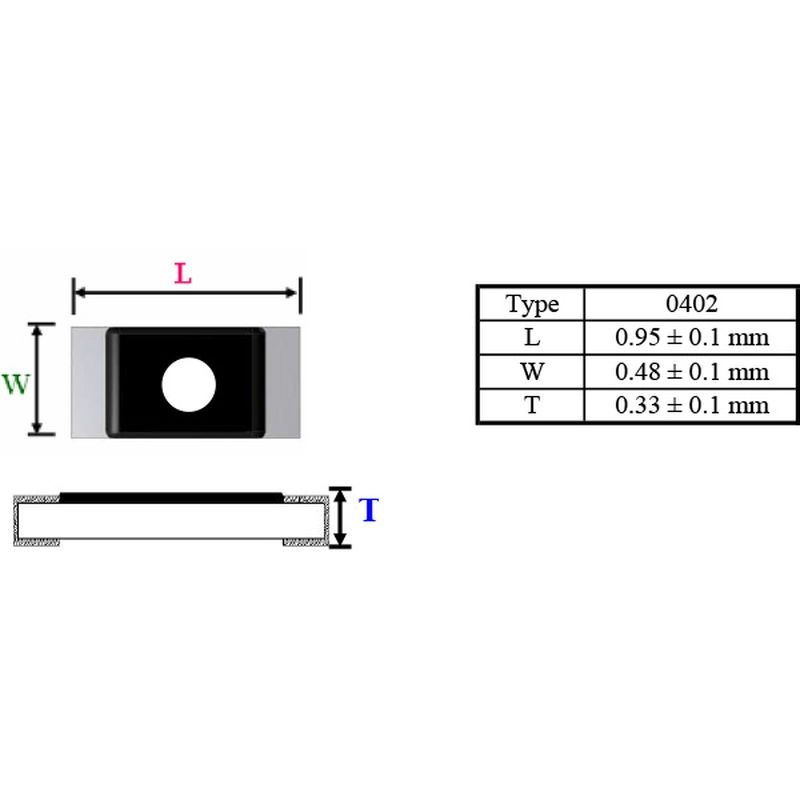

CSMD0402 SMD Fuse.
SMD Fuses are widely used in a varieties of electronic products such as LCD Display, PC Appiances, Portable Communication Devices, AV appliances... etc. Thin film ceramic body is excellent against soldering heat.
Product Conformity
- UL Recognized
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 100% | 1 – 5 Amp | 1 hr | – |
| 200% | 1 – 5 Amp | – | 5 Sec |
| 300% | 1 – 5 Amp | – | 0.2 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Nominal Cold Resistance |
|---|---|---|---|
| CSMD04CF001 | 1A | 32VDC | 60 mΩ |
| CSMD04CF002 | 2A | 32VDC | 30 mΩ |
| CSMD04CF003 | 3A | 32VDC | 20 mΩ |
| CSMD04CF004 | 4A | 32VDC | 13 mΩ |
| CSMD04CF005 | 5A | 32VDC | 10 mΩ |
Product Packaging
- Package Type: SMD series are packaged in taping reel for pick-and-place machine.
- Standard Package: 10,000 PCS per reel.
