For Ø6.3mm Tube Fuse
For Ø6.3mm Tube Fuse
Special Design Also Available. For Details Please Contact Factory.
Low Cost, Low Contact Resistance.
Flame Retardant material.
Low Cost, Low Contact Resistance.
Flame Retardant material.
Introduction

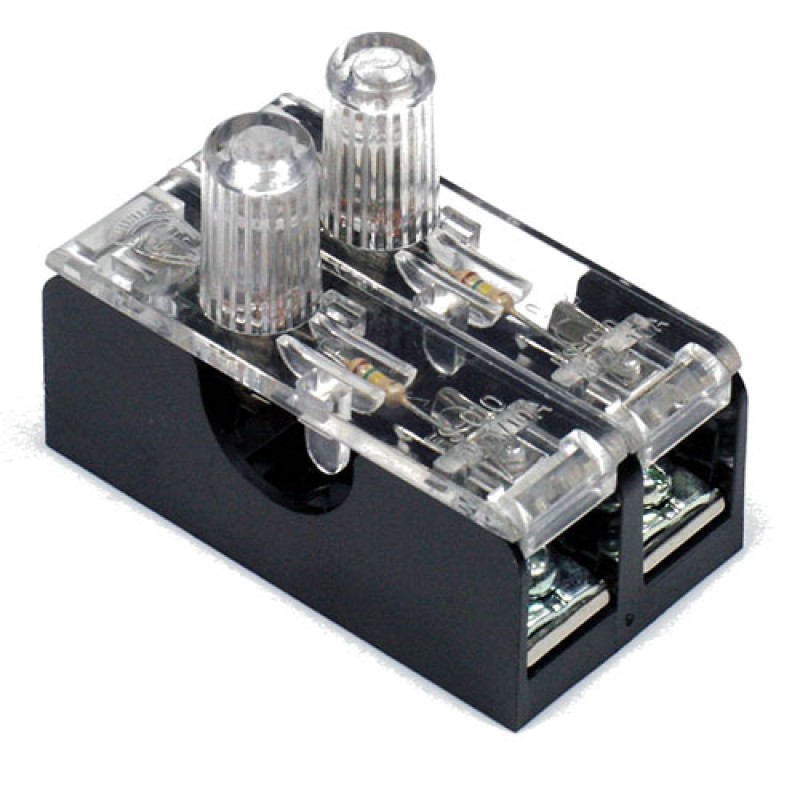

PCB Fuse Block for Ø6.3mm Tube Fuse
- Special Design Also Available. For Details Please Contact Factory.
- Low Cost, Low Contact Resistance.
- Flame Retardant material.
Specification
| Item Number | Insertion & Extraction Force | Dielectric Strength (60s) | Suitable Rated Current | Insulation Resistance (500V DC) | Temp. Rise | Voltage Drop | |
|---|---|---|---|---|---|---|---|

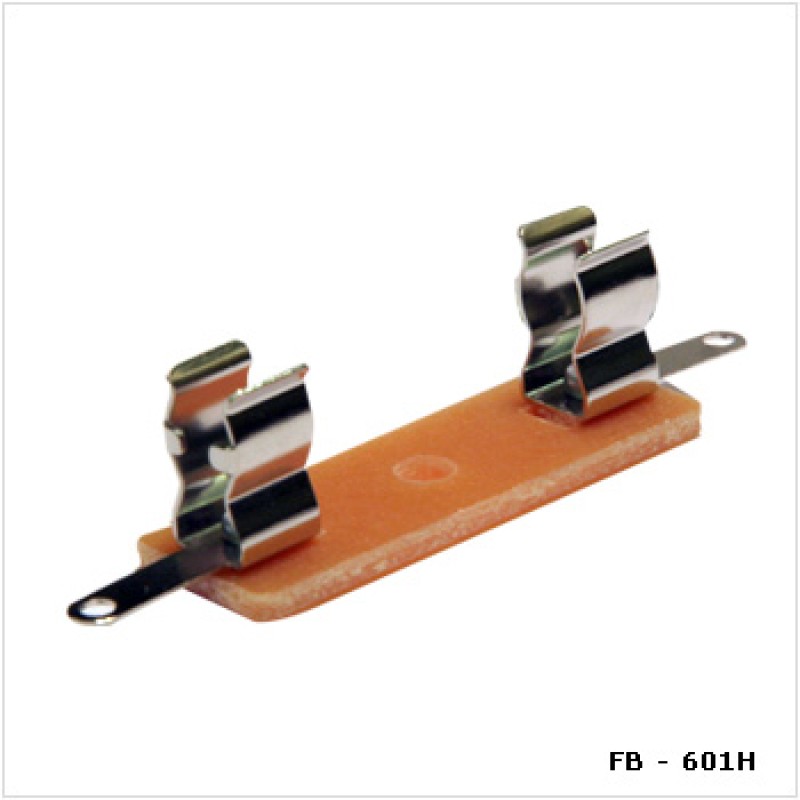

| FB - 601H |  |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

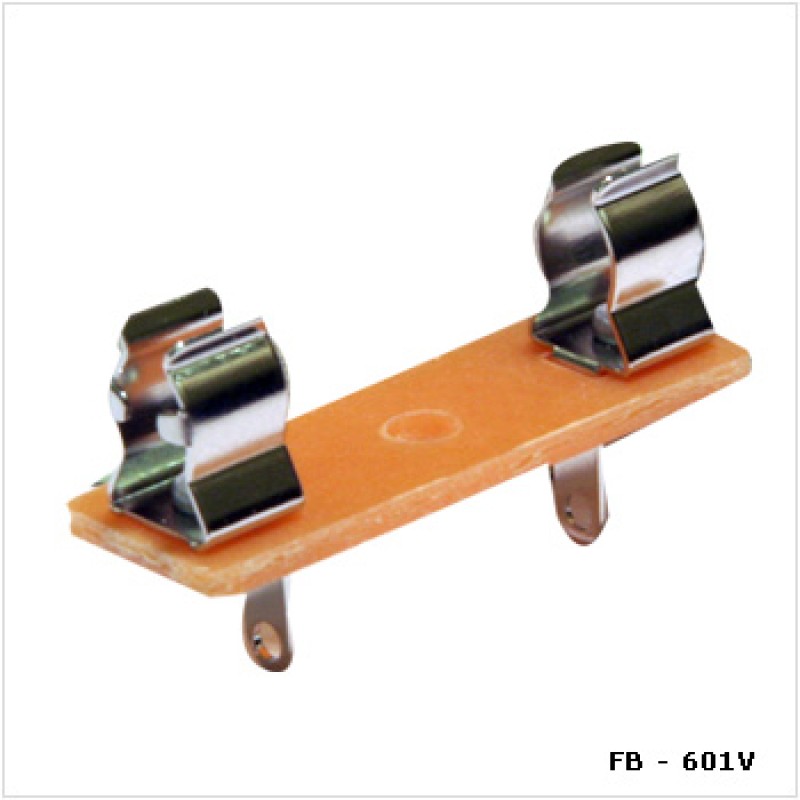

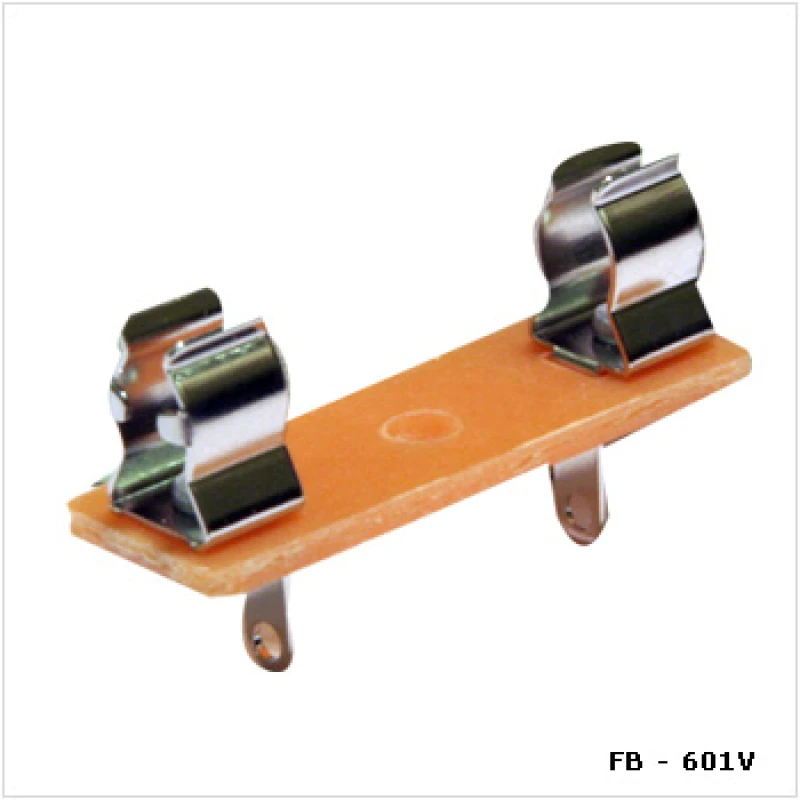

| FB - 601V |  |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

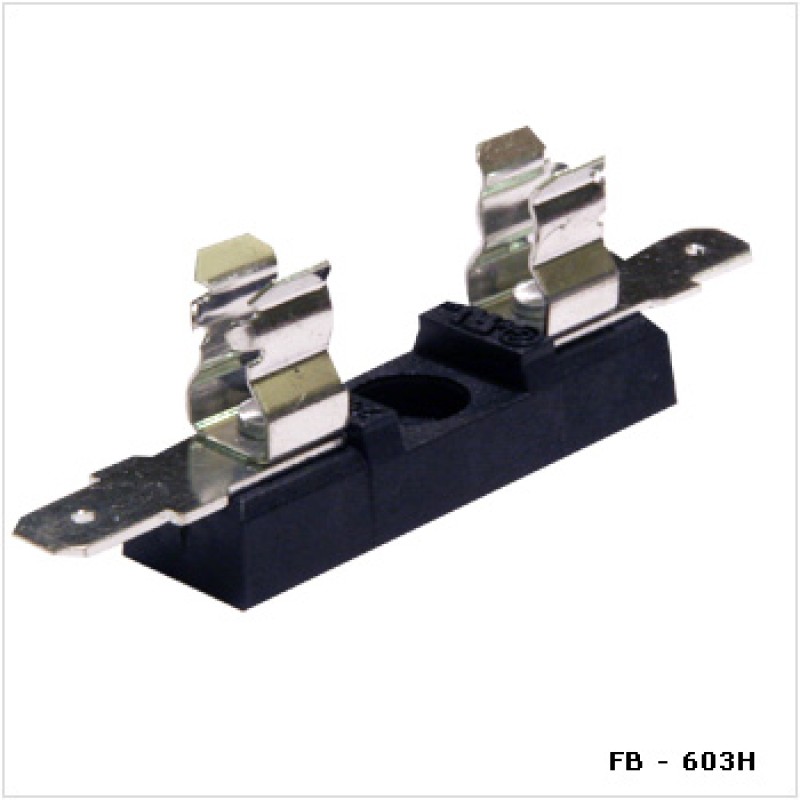

| FB - 603H |  |
1.5 Kg. Min. | AC 3000 V Min. | 30 A 250 V | 500M (Ohm) Min. | 60°C Max. | 15 mV Max. |
| FB - 603V |  |
1.5 Kg. Min. | AC 3000 V Min. | 30 A 250 V | 500M (Ohm) Min. | 60°C Max. | 15 mV Max. |

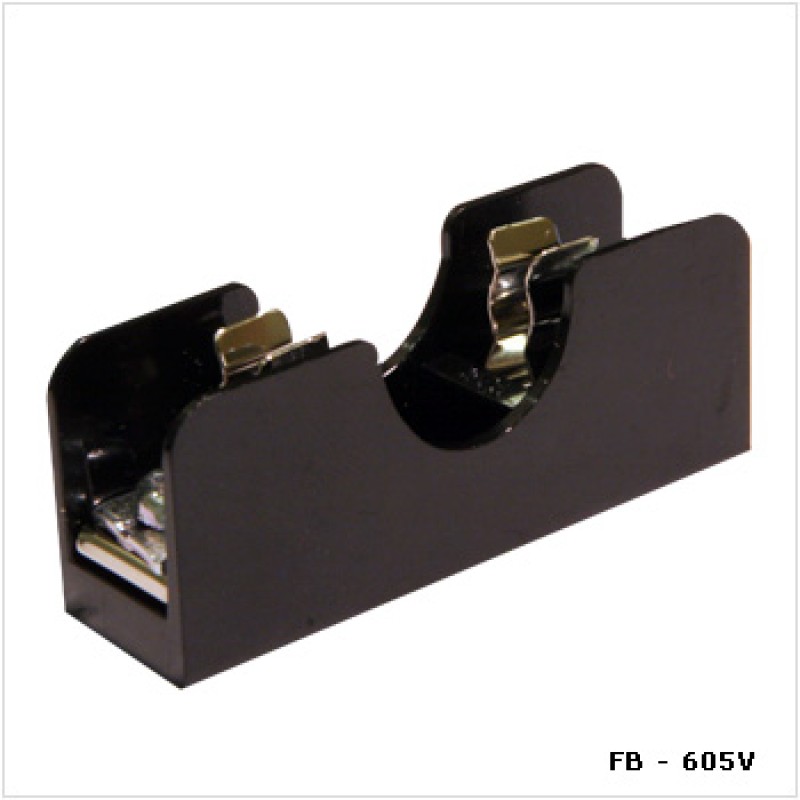

| FB - 605v |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

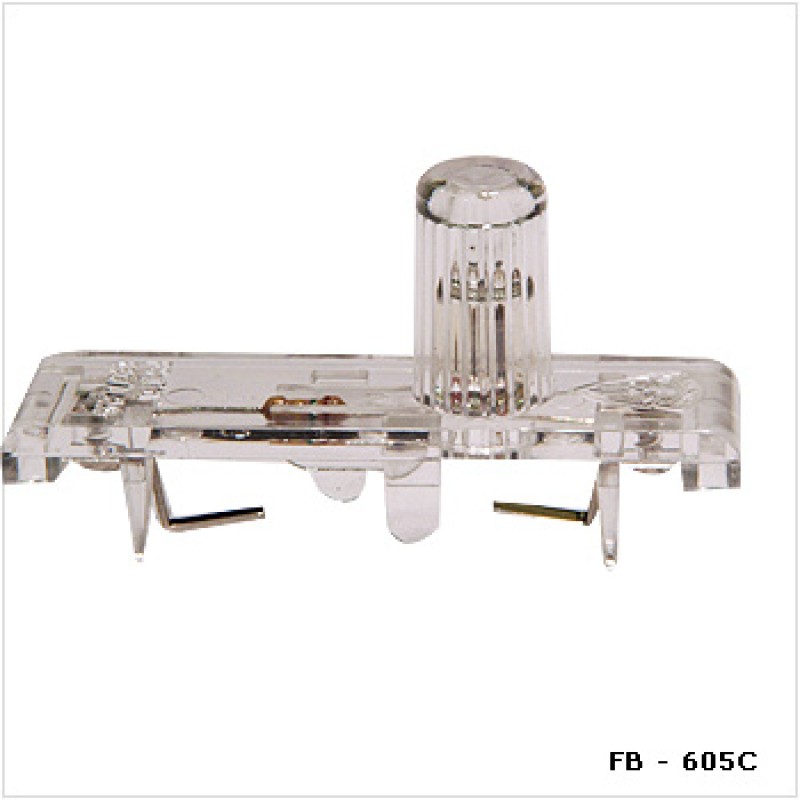

| FB - 605C |  |
||||||
| FB - 606 |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

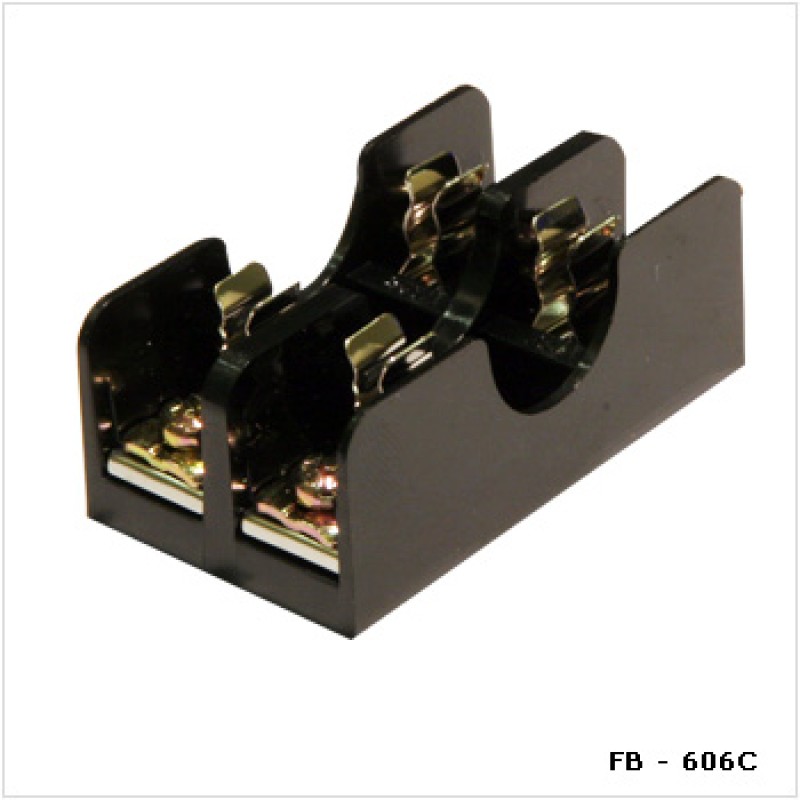

| FB - 606C |  |
||||||
Product Packaging
- Standard Package: 1,000 PCS per polybag.
