Introduction
PCB Fuse Block for Ø5.2mm Tube Fuse
- Special Design Also Available. For Details Please Contact Factory.
- Low Cost, Low Contact Resistance.
- Flame Retardant material.
Specification
| Item Number | Insertion & Extraction Force | Dielectric Strength (60s) | Suitable Rated Current | Insulation Resistance (500V DC) | Temp. Rise | Voltage Drop | |
|---|---|---|---|---|---|---|---|

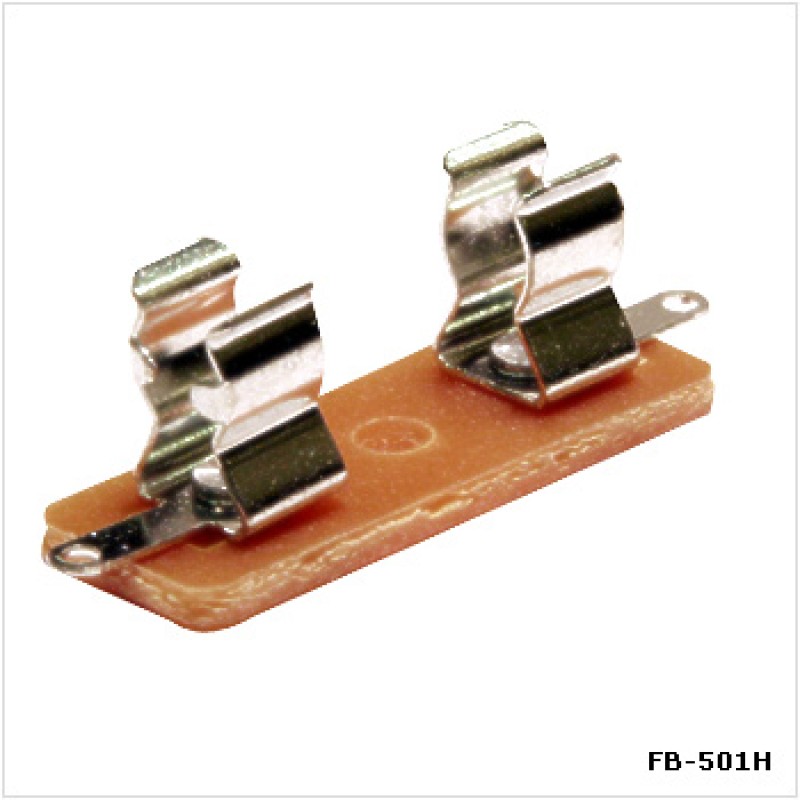

| FB - 501H |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

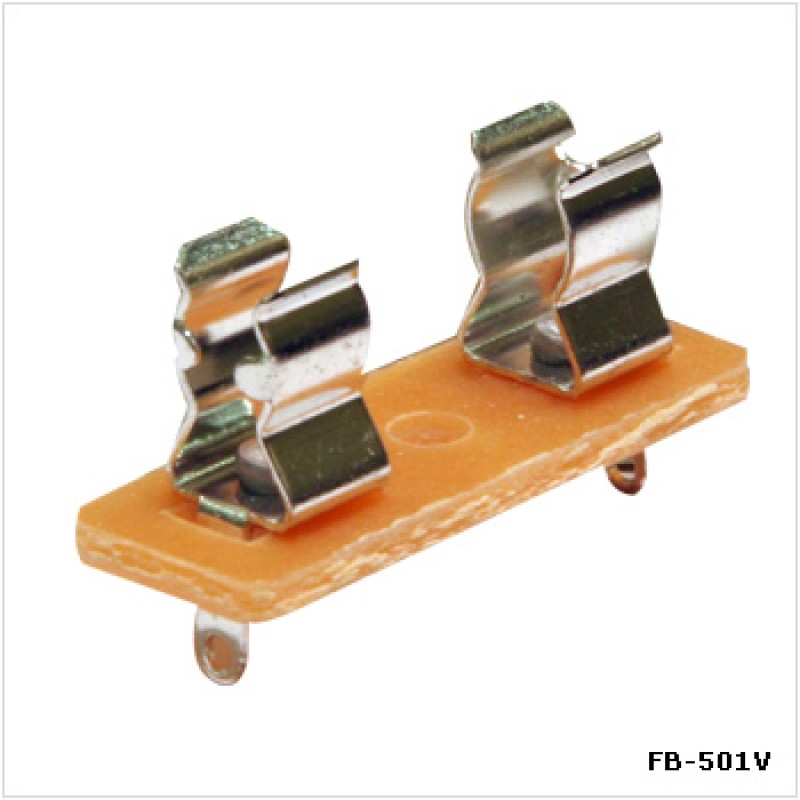

| FB - 501V |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 502H |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 502V |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

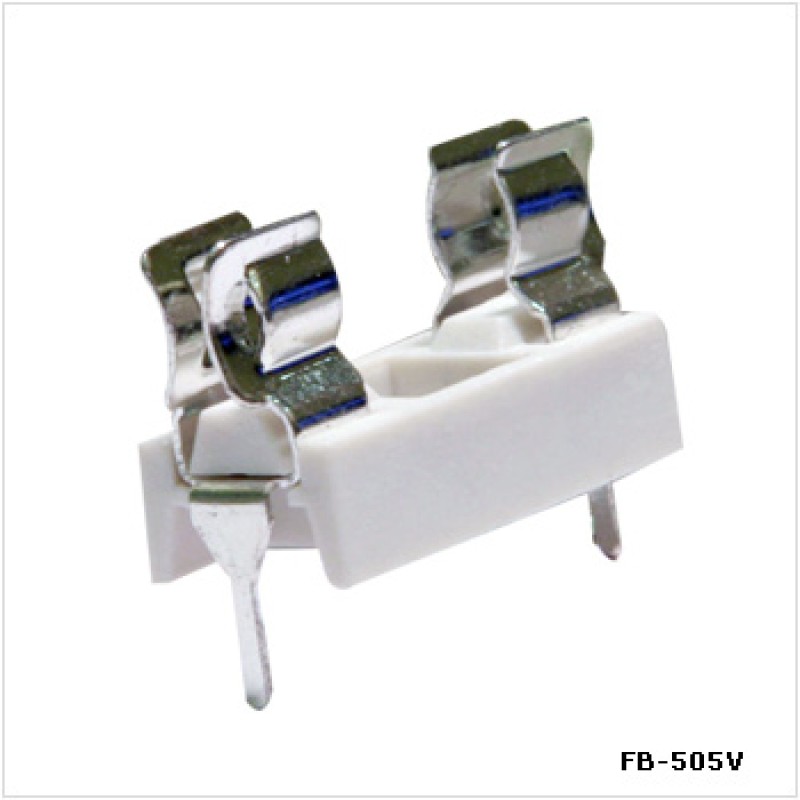

| FB - 505V |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

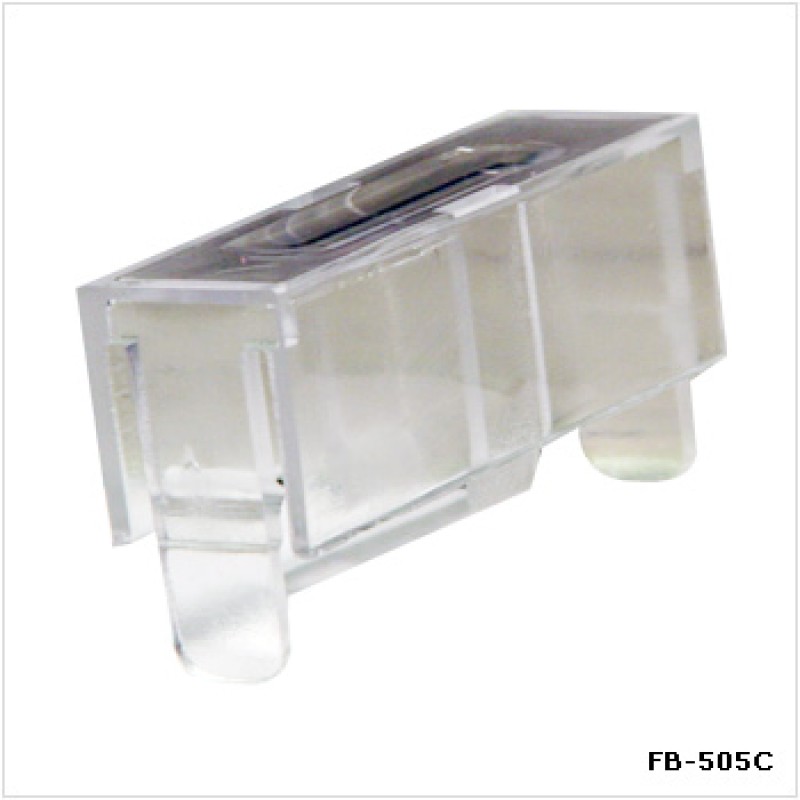

| FB - 505C |  |
||||||

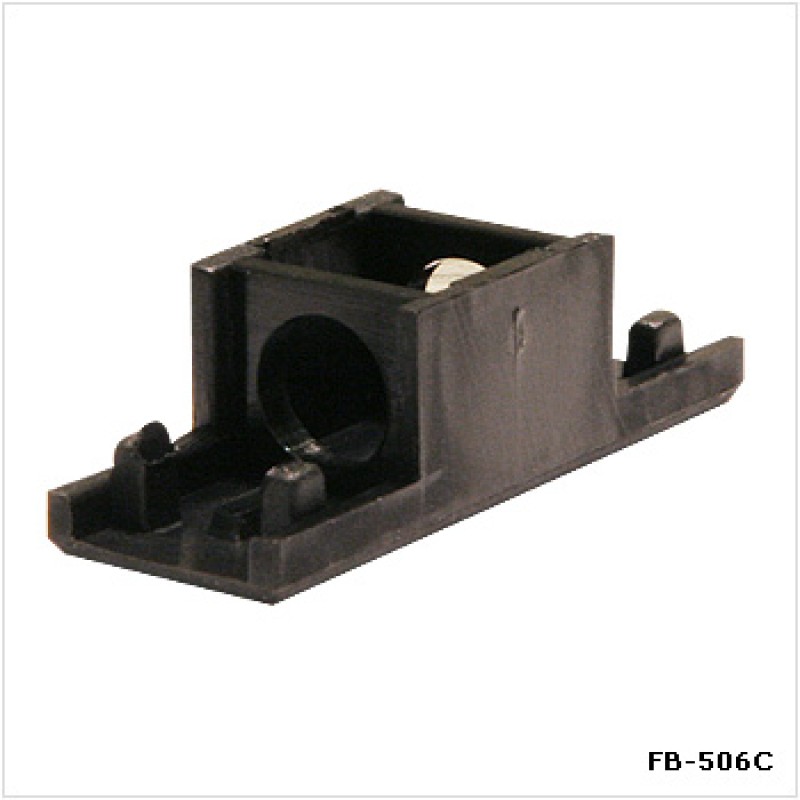

| FB - 506C |  |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

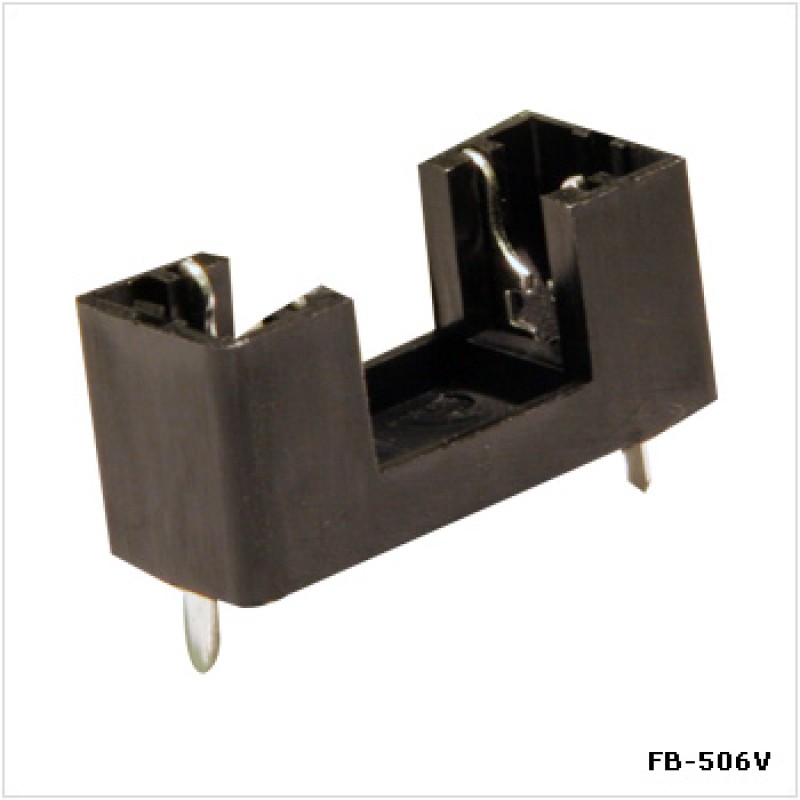

| FB - 506V |  |
1 Kg. Min. | AC 500 V Min. | 10 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |

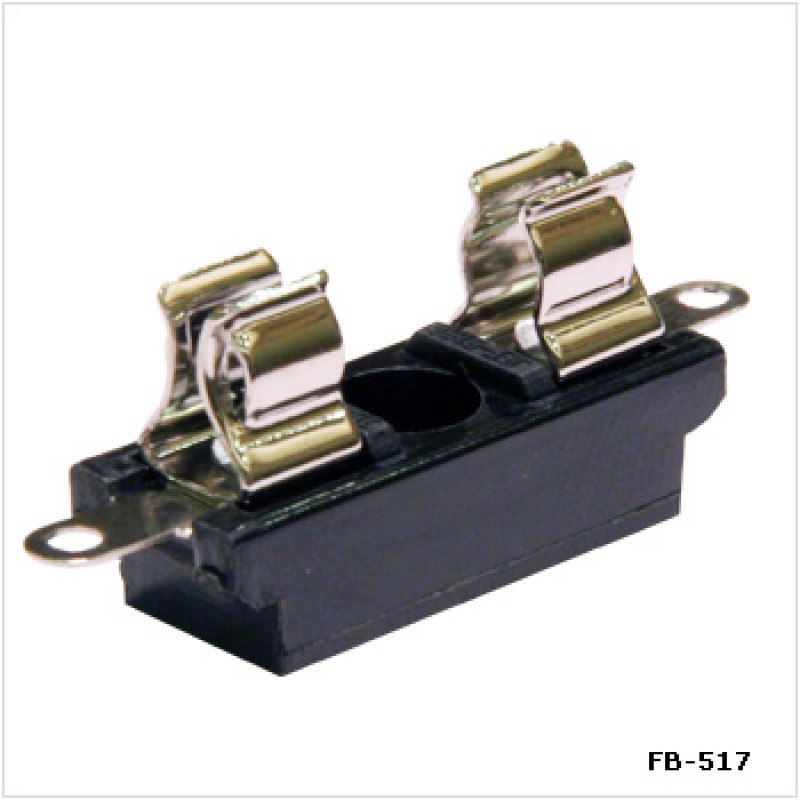

| FB - 517 |  |
1 Kg. Min. | AC 500 V Min. | 6.3 A 250 V | 100M (Ohm) Min. | 50°C Max. | 20 mV Max. |
| FB - 517C |  |
||||||
Product Packaging
- Standard Package: 1,000 PCS per polybag.
