Standard Blade Fuse with LED Fuse Indicator for Reliable Protection

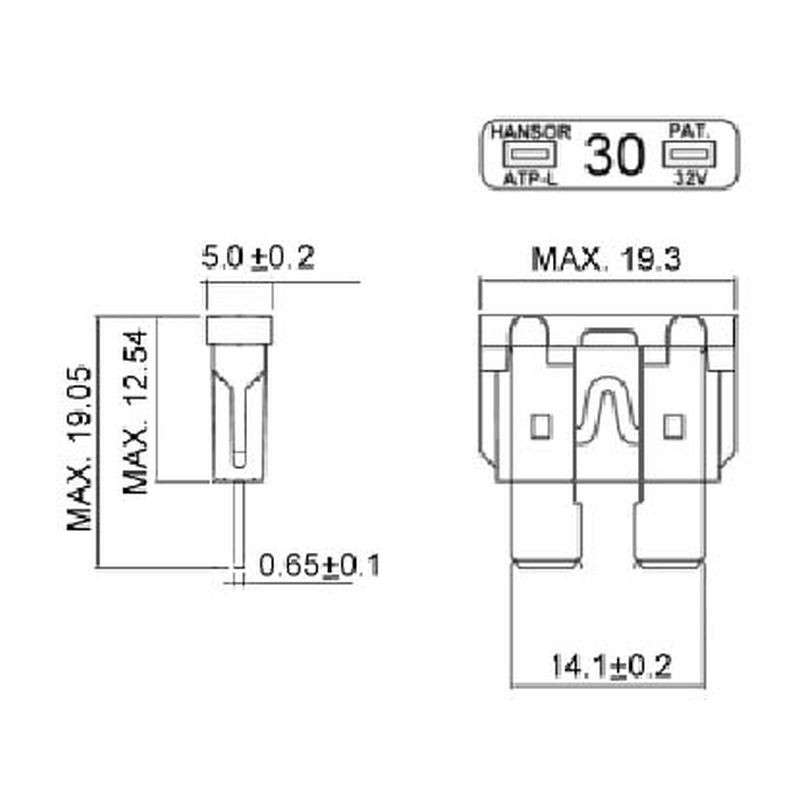

ATP-L (Standard Blade)
Type：ATP-L
Intelligent Fuse ATP-L Standard Blade Fuse Series is the most common size for almost all commercial and personal vehicles including cars, motorcycles, RV and small trucks.
Introduction
Intelligent Fuse ATP-L Standard Blade Fuse Series is the most common size for almost all commercial and personal vehicles including cars, motorcycles, RV and small trucks.
*Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China.
Product Conformity
- SAE J1284
- UL
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 3 – 40 Amp | 100 Hours | – |
| 135% | 3 – 40 Amp | – | 1800 Sec |
| 200% | 3 – 40 Amp | – | 5 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| ATP-L03 | 3A | 32VDC | VIOLET | 0.031 |
| ATP-L04 | 4A | 32VDC | PINK | 0.023 |
| ATP-L05 | 5A | 32VDC | TAN | 0.018 |
| ATP-L07 | 7.5A | 32VDC | BROWN | 0.011 |
| ATP-L10 | 10A | 32VDC | RED | 0.0077 |
| ATP-L15 | 15A | 32VDC | BLUE | 0.0048 |
| ATP-L20 | 20A | 32VDC | YELLOW | 0.0033 |
| ATP-L25 | 25A | 32VDC | NATURAL | 0.0025 |
| ATP-L30 | 30A | 32VDC | GREEN | 0.0019 |
| ATP-L35 | 35A | 32VDC | BLUE GREEN | 0.0016 |
| ATP-L40 | 40A | 32VDC | AMBER | 0.0014 |
Product Packaging
- OEM Package: 1,000PCS/polybag
- Export Packaging: 1,000PCS/polybag, 10,000PCS/carton.
Product Overview

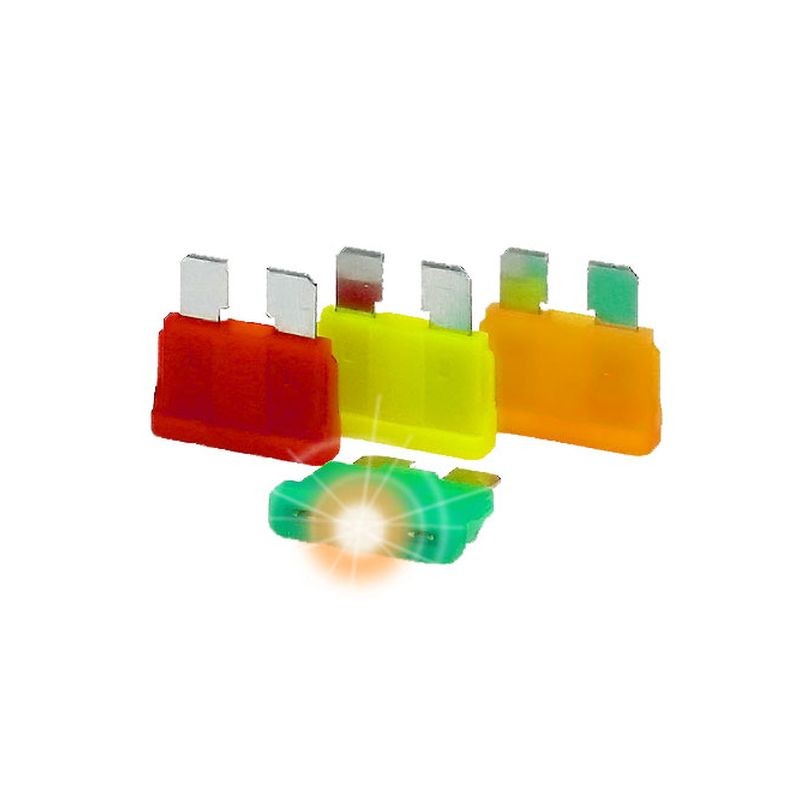

Hansor standard blade fuse is designed for reliable circuit protection in automotive, electronic, and industrial applications. The LED fuse indicator lights up immediately when a fuse is blown, allowing quick identification of faulty circuits and simplifying replacement in fuse boxes.
Key Features
- LED Fuse Indicator: Built-in LED shows blown fuses for fast fault detection.
- Durable Materials: High-quality thermoplastic body and zinc alloy fuse element for long-lasting performance.
- Color-Coded Design: Easily identify amperage with standardized blade colors.
- Wide Application Range: Suitable for cars, trucks, RVs, industrial machines, and electronic devices.
- Certified & Patented: Complies with UL, RoHS, and SAE J1284 standards, ensuring safety and reliability.
Applications
- Automotive fuse boxes in cars, trucks, and RVs
- Electronic devices requiring high-current protection
- Industrial machinery and control panels
Why Choose Hansor Standard Blade Fuse
- Trusted fuse supplier with decades of manufacturing experience
- Wide selection of standard blade fuse and LED fuse indicator options for different current ratings
- Patented technology ensures high quality and consistent performance
- Easy maintenance with LED fuse indicator, reducing downtime and simplifying service
