Type：ASP-H

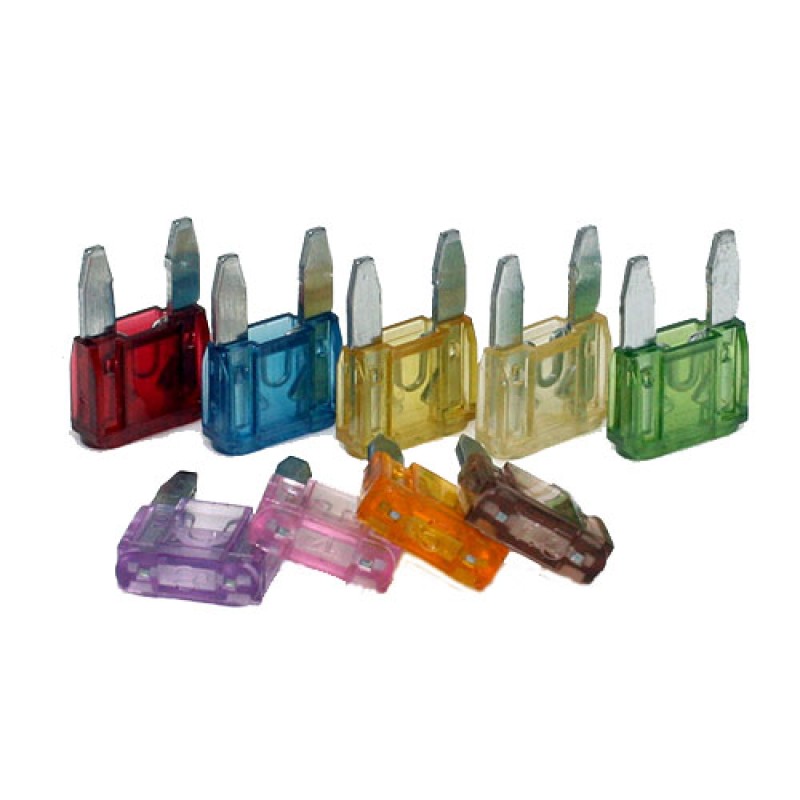

Hansor ASP-H series Mini Blade Fuse is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing. It is the most common size for automotive usage. ASP-H Mini Blade fuse has wide variety of usage including cars, trucks, tractors, marine vehicles and electronics.
Introduction
ASP-H Mini Blade Fuse Series is the most common type automotive fuse.
Hansor **ASP-H series Mini Blade Fuse** is manufactured using high grade industrial plastic with strict product performance check to ensure customers get the highest quality product with affordable pricing. It is the most common size for automotive usage. ASP-H Mini Blade fuse has wide variety of usage including cars, trucks, tractors, marine vehicles and electronics.
Product Conformity
- SAE Standards
- ISO 8820
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 3 – 30 Amp | 100 Hours | – |
| 135% | 3 – 30 Amp | – | 1800 Sec |
| 200% | 3 – 30 Amp | – | 5 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| ASP-H03 | 3A | 32VDC | VIOLET | 0.031 |
| ASP-H04 | 4A | 32VDC | PINK | 0.023 |
| ASP-H05 | 5A | 32VDC | TAN | 0.018 |
| ASP-H07 | 7.5A | 32VDC | BROWN | 0.011 |
| ASP-H10 | 10A | 32VDC | RED | 0.0077 |
| ASP-H15 | 15A | 32VDC | BLUE | 0.0048 |
| ASP-H20 | 20A | 32VDC | YELLOW | 0.0033 |
| ASP-H25 | 25A | 32VDC | NATURAL | 0.0025 |
| ASP-H30 | 30A | 32VDC | GREEN | 0.0019 |
Product Packaging
- OEM Package: 1,000PCS/polybag
- Export Packaging: 1,000PCS/polybag, 15,000PCS/carton.
