LED Fuse and Light Up Fuses for Compact Automotive Circuits

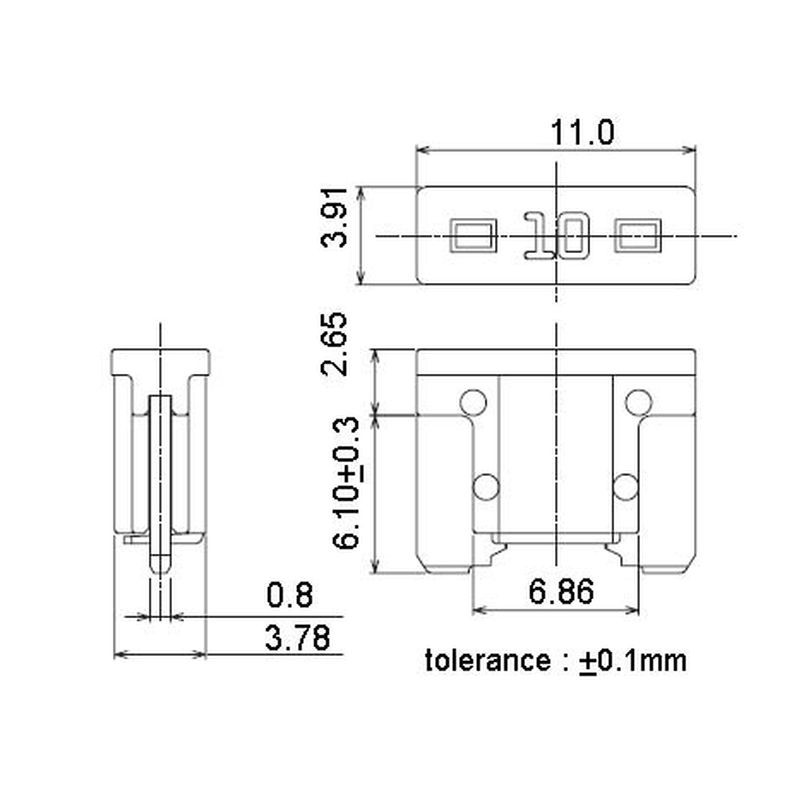

ASM-L (Super Mini Blade)
Type：ASM-L
Intelligent Fuse ASP-L Standard Blade Fuse Series is the most common size for almost all commercial and personal vehicles including cars, motorcycles, RV and small trucks.
Introduction
Intelligent Fuse ASM-L Standard Blade Fuse Series is the most common size for almost all commercial and personal vehicles including cars, motorcycles, RV and small trucks.
*Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China.
Product Conformity
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 3 – 30 Amp | 100 Hours | – |
| 135% | 3 – 30 Amp | – | 1800 Sec |
| 200% | 3 – 30 Amp | – | 5 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code | Nominal Cold Resistance |
|---|---|---|---|---|
| ASM-L03 | 3A | 32VDC | GREY | 0.056 |
| ASM-L04 | 4A | 32VDC | VIOLET | 0.034 |
| ASM-L05 | 5A | 32VDC | PINK | 0.024 |
| ASM-L07 | 7.5A | 32VDC | TAN | 0.018 |
| ASM-L10 | 10A | 32VDC | BROWN | 0.011 |
| ASM-L15 | 15A | 32VDC | RED | 0.0073 |
| ASM-L20 | 20A | 32VDC | BLUE | 0.0045 |
| ASM-L25 | 25A | 32VDC | YELLOW | 0.0032 |
| ASM-L30 | 30A | 32VDC | NATURAL | 0.0023 |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 25,000PCS/carton.
Product Overview

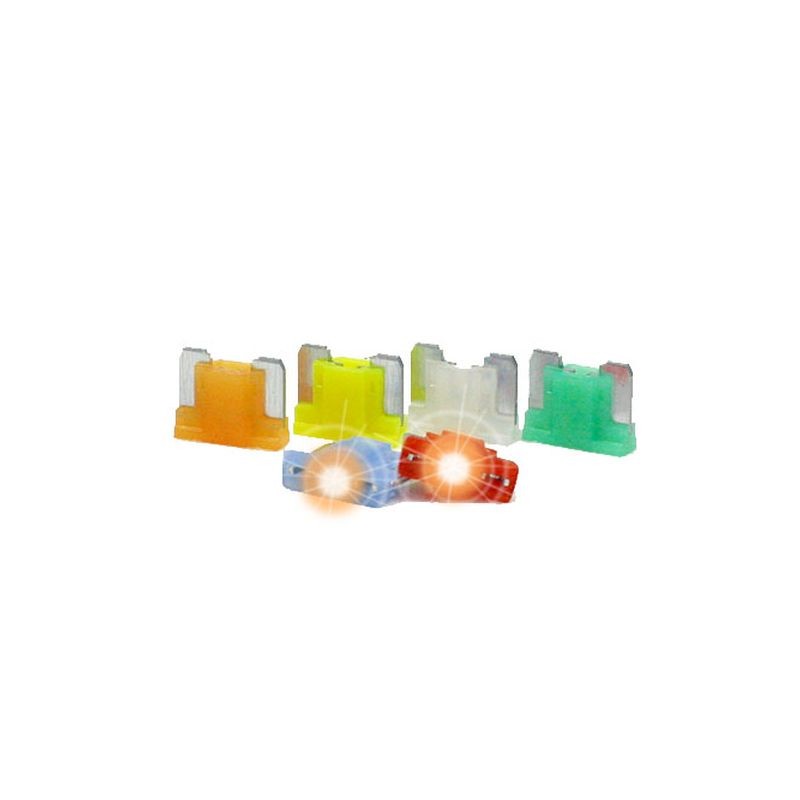

The ASM-L Super Mini Blade is a compact led fuse designed for modern automotive circuits with limited space. When the fuse is blown, the built-in LED lights up instantly, making light up fuses easy to check and replace without extra tools. This design helps reduce inspection time and avoids repeated fuse removal during maintenance.
Key Features
- Built-in LED Indicator: The led fuse lights up clearly when blown, allowing fast visual checks inside crowded fuse boxes.
- Super Mini Blade Size: Designed for tight automotive layouts where space is limited, without affecting circuit safety.
- Stable Electrical Performance: Consistent current protection for daily driving and electronic systems.
- Clear Color Identification: Blade color helps identify amperage quickly, supporting easier fuse management.
- Durable Fuse Structure: Reliable materials help light up fuses stay visible and functional under normal automotive conditions.
Applications
- Passenger vehicles and commercial vehicles
- Automotive fuse boxes and control modules
- Car electronics and accessory circuits
- Situations where quick fuse status checking is required
*The ASM-L Super Mini Blade led fuse is suitable for users who want clear indication and easy maintenance through light up fuses.
Product Inquiry
| Image | Product Name |
|---|---|
|
ASM-L (Super Mini Blade) ASM-L |
