AML (Bolt-In Type)
AML (Bolt-In Type)
Type：AML

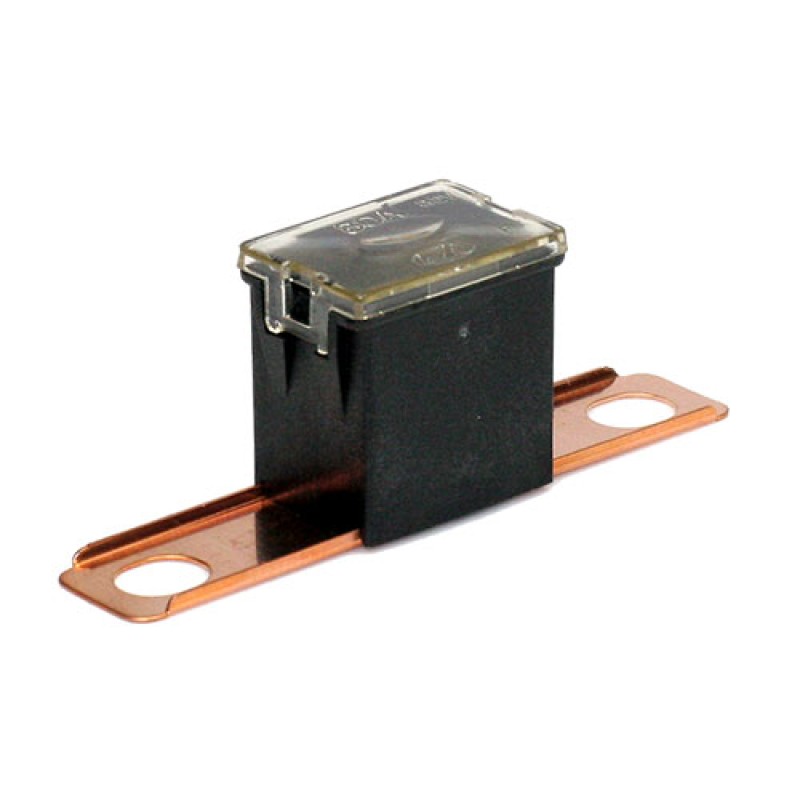

AML Bolt-in Type Cartridge Fuse is high current type fuse used in car fuse boxes. Transparent top cover for easy diagnostic.
Introduction
AML Bolt-in Type Slow Blow Cartridge Fuse.
AML Bolt-in Type Cartridge Fuse is high current type fuse used in car fuse boxes. Transparent top cover for easy diagnostic.
Product Conformity
- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 30 – 140 Amp | 4 hrs | – |
| 200% | 30 – 140 Amp | 5 Sec | 100 Sec |
| 350% | 30 – 140 Amp | 0.5 Sec | 15 Sec |
| 600% | 30 – 140 Amp | – | 1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
|---|---|---|---|
| AML-30 | 30A | 32VDC | PINK |
| AML-40 | 40A | 32VDC | GREEN |
| AML-50 | 50A | 32VDC | RED |
| AML-60 | 60A | 32VDC | YELLOW |
| AML-70 | 70A | 32VDC | BROWN |
| AML-80 | 80A | 32VDC | BLACK |
| AML-100 | 100A | 32VDC | BLUE |
| AML-120 | 120A | 32VDC | GRAY |
| AML-140 | 140A | 32VDC | VIOLET |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 2000PCS/carton.
