AFY (Super Mini Type)
AFY (Super Mini Type)
Type：AFY

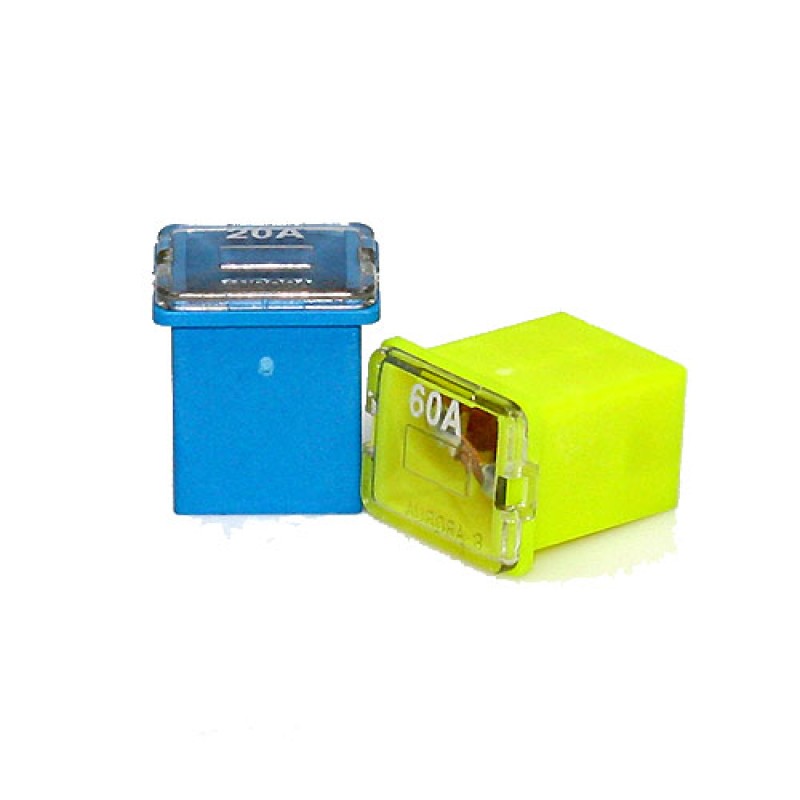

AFY Low-Profile Miniature Cartridge Fuse is the new edition/form factor of the cartridge type fuse family. Mostly used in the new model of Japanese branded cars. Transparent top cover for easy diagnostic.
Introduction
AFY Low-Profile Miniature Slow Blow Cartridge Fuse.
AFY Low-Profile Miniature Cartridge Fuse is the new edition/form factor of the cartridge type fuse family. Mostly used in the new model of Japanese branded cars. Transparent top cover for easy diagnostic.
Product Conformity
- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 20 – 60 Amp | 100 hrs | – |
| 135% | 20 – 60 Amp | 60 Sec | 1800 Sec |
| 200% | 20 – 60 Amp | 2 Sec | 60 Sec |
| 350% | 20 – 60 Amp | 0.2 Sec | 7 Sec |
| 600% | 20 – 60 Amp | 0.04 Sec | 1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
|---|---|---|---|
| AFX-20 | 20A | 32VDC | LT. BLUE |
| AFX-30 | 30A | 32VDC | PINK |
| AFX-40 | 40A | 32VDC | GREEN |
| AFX-50 | 50A | 32VDC | RED |
| AFX-60 | 60A | 32VDC | YELLOW |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 5000PCS/carton.
