Miniature Cartridge Fuse for Low Profile Automotive Circuits
AFY-IF (Low-Profile Female)
Type：AFY-IFIntroduction

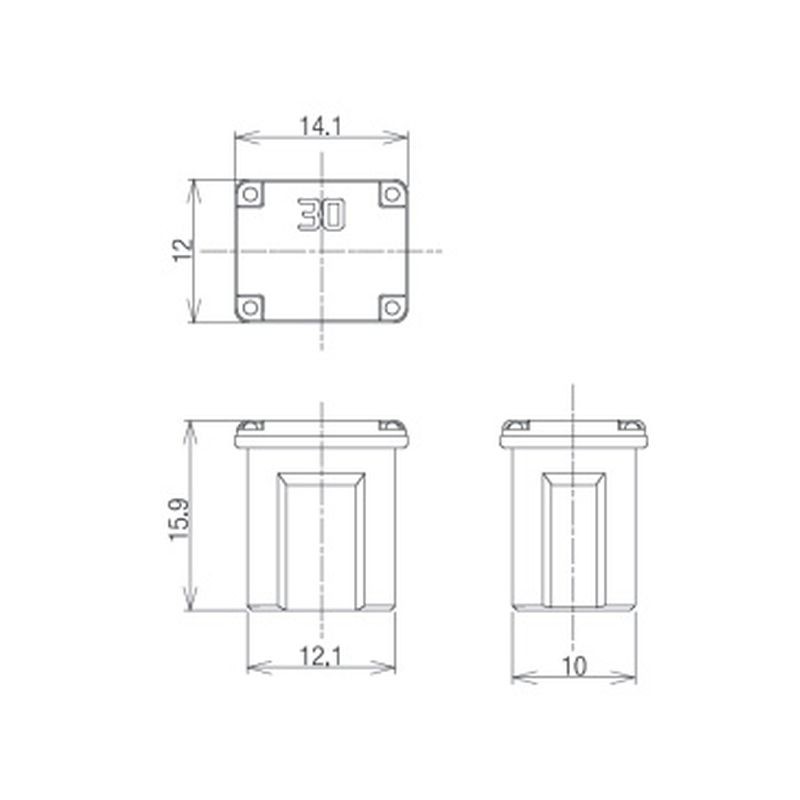

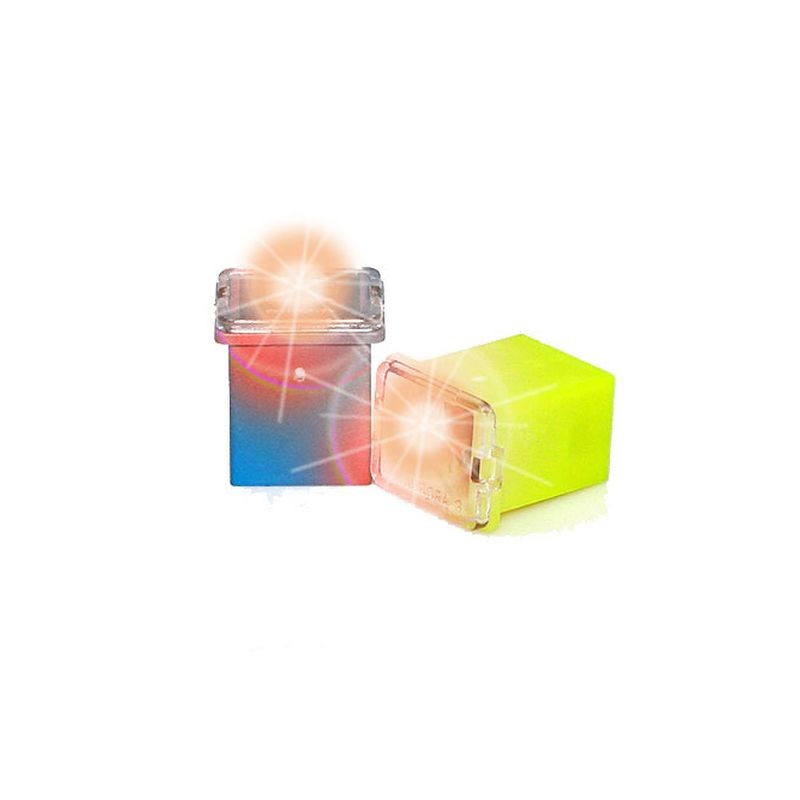

Intelligent Fuse AFY-IF Low-Profile Female Mini Fuse Series can replace regular Low-Profile female fuse that are commonly used in Japanese branded cars.
The **Intelligent Fuse AFX-LP-IF Low-Profile Miniature Cartridge Fuse** is the new edition/form factor of the cartridge type fuse family and the newest member of Hansor's Intelligent Fuse product family.
Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China.
Product Conformity
- ISO 8820-4
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 20 – 60 Amp | 100 hrs | – |
| 135% | 20 – 60 Amp | 60 Sec | 1800 Sec |
| 200% | 20 – 60 Amp | 2 Sec | 60 Sec |
| 350% | 20 – 60 Amp | 0.2 Sec | 7 Sec |
| 600% | 20 – 60 Amp | 0.04 Sec | 1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
|---|---|---|---|
| AFX-20 | 20A | 32VDC | LT. BLUE |
| AFX-30 | 30A | 32VDC | PINK |
| AFX-40 | 40A | 32VDC | GREEN |
| AFX-50 | 50A | 32VDC | RED |
| AFX-60 | 60A | 32VDC | YELLOW |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 5000PCS/carton.
Product Overview
The AFY-IF Low Profile Female is a miniature cartridge fuse designed for modern automotive fuse boxes where space is limited. Its low-profile structure allows efficient circuit protection without increasing installation height, making it suitable for compact vehicle layouts. This miniature cartridge fuse is commonly used to replace standard female fuses in applications that require stable current protection and easy servicing.
Key Features
- Low Profile Design: The compact structure helps the miniature cartridge fuse fit into tight fuse box spaces while maintaining proper electrical protection.
- Automotive Compatibility: Designed for use in automotive electrical systems, supporting consistent performance under normal vehicle operating conditions.
- Clear Amperage Identification: Color-coded housing allows quick recognition during installation and maintenance.
- Reliable Current Protection: Provides dependable overcurrent protection to help prevent circuit damage.
- Easy Installation and Replacement: Cartridge-type format makes this miniature cartridge fuse simple to install and replace during routine servicing.
Applications
This miniature cartridge fuse is suitable for a wide range of automotive uses, including:
- Passenger vehicles and light commercial vehicles
- Automotive fuse boxes with low profile requirements
- Control modules and power distribution units
- Replacement applications for female fuse systems
*The AFY-IF Low Profile Female miniature cartridge fuse helps reduce space constraints while keeping electrical systems protected and easy to maintain.
