Type：AFX-L

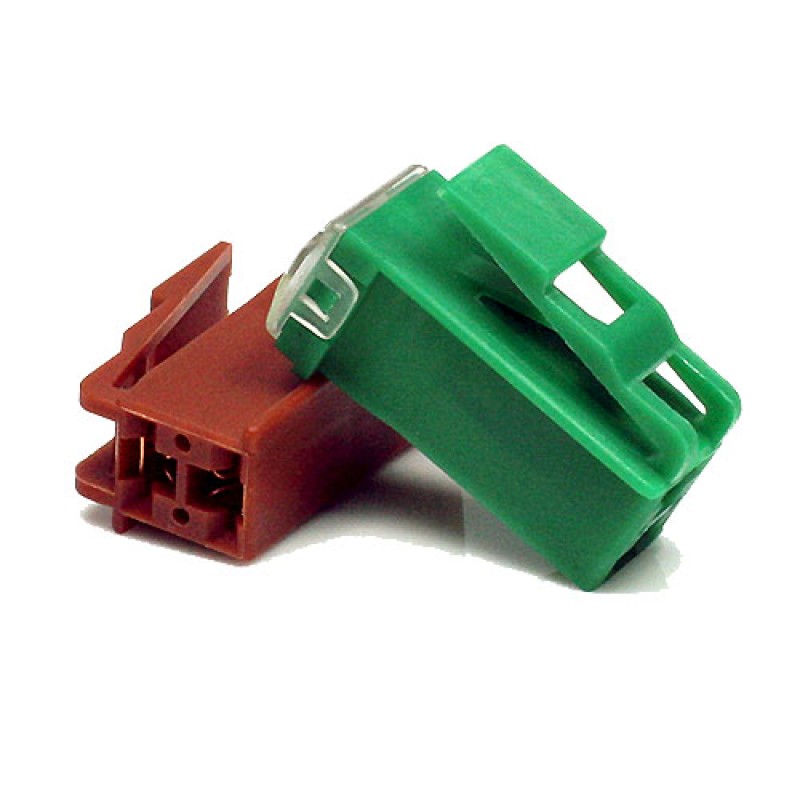

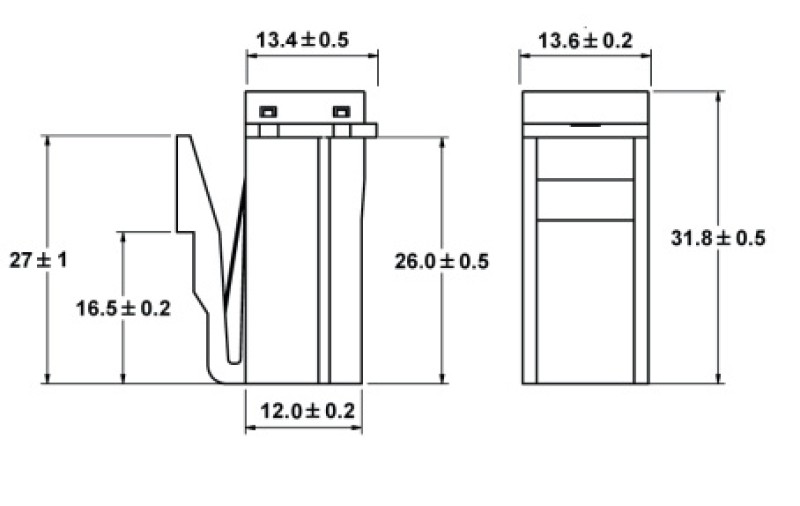

AFX-L Miniature Cartridge Fuse with locking tab is commonly used type of power fuses in Japanese branded cars. Transparent top cover for easy diagnostic. Maximum voltage rating at 32 VDC.
Introduction
AFX-L Miniature Slow Blow Cartridge Fuse with locking tab.
AFX-L Miniature Cartridge Fuse with locking tab is commonly used type of power fuses in Japanese branded cars. Transparent top cover for easy diagnostic. Maximum voltage rating at 32 VDC.
Product Conformity
- ISO 8820-4
- JASO D614
- EU RoHS, REACH
Electronic Characteristics
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 110% | 25 – 30 Amp | 100 hrs | – |
| 135% | 25 – 30 Amp | 60 Sec | 1800 Sec |
| 200% | 25 – 30 Amp | 2 Sec | 60 Sec |
| 350% | 25 – 30 Amp | 0.2 Sec | 7 Sec |
| 600% | 25 – 30 Amp | 0.04 Sec | 1 Sec |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Color Code |
|---|---|---|---|
| AFX-25 | 25A | 32VDC | BROWN |
| AFX-30 | 30A | 32VDC | GREEN |
Product Packaging
- OEM Package: 500PCS/polybag
- Export Packaging: 500PCS/polybag, 5000PCS/carton.
