AFX-IF (Female)
AFX-IF (Female)

AFX-IF (Female)

Type：AFX-IF

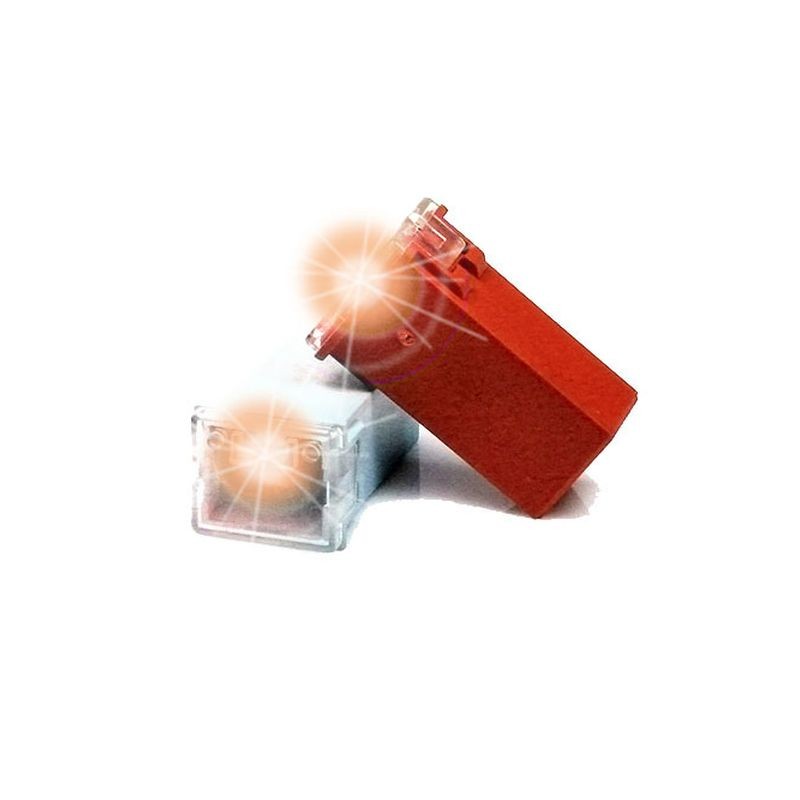

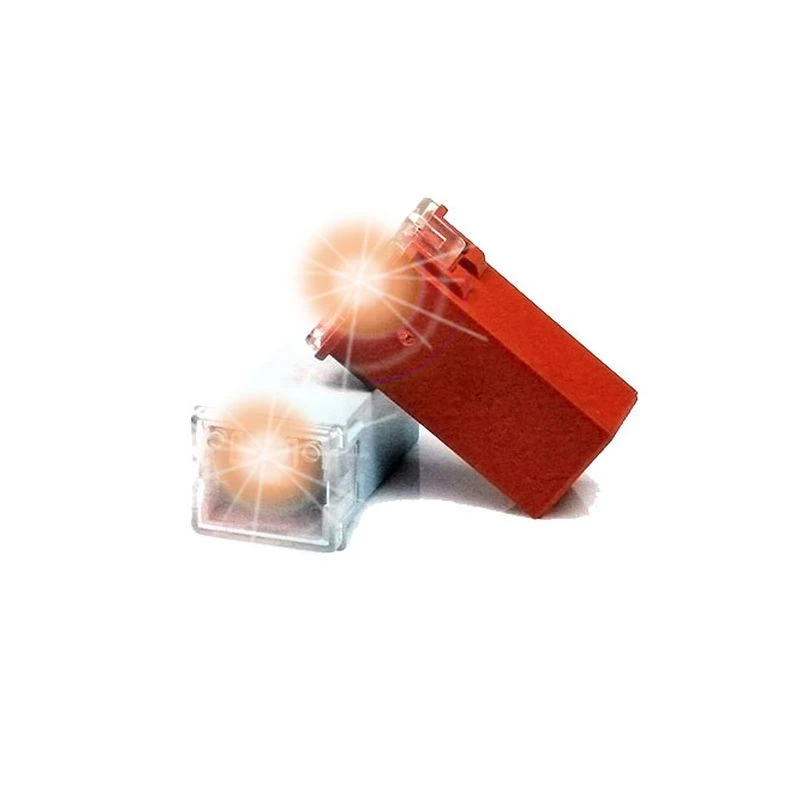

Intelligent Fuse AFX-IF Female Maxi Fuse Series can replace regular Low-Profile female fuse that are commonly used in Japanese branded cars.
Add to Inquiry

Introduction

Product Overview

Introduction

Intelligent Fuse AFX-IF Female Maxi Fuse Series can replace regular Low-Profile female fuse that are commonly used in Japanese branded cars.

The Intelligent Fuse AFX-IF Female Maxi Fuse is the new edition/form factor of the cartridge type fuse family and the newest member of Hansor's Intelligent Fuse product family.

Intelligent Fuse series has been awarded with several patents in U.S., Japan, Taiwan and China.

Product Conformity

  • ISO 8820-4
  • EU RoHS, REACH

Electronic Characteristics

% of Rating Current Rating Opening Time
Minimum Maximum
110% 20 – 60 Amp 100 hrs –
135% 20 – 60 Amp 60 Sec 1800 Sec
200% 20 – 60 Amp 2 Sec 60 Sec
350% 20 – 60 Amp 0.2 Sec 7 Sec
600% 20 – 60 Amp 0.04 Sec 1 Sec

Order Information

Catalogue Number Amperage Rating Voltage Rating Color Code
AFX-IF20 20A 32VDC LT. BLUE
AFX-IF30 30A 32VDC PINK
AFX-IF40 40A 32VDC GREEN
AFX-IF50 50A 32VDC RED
AFX-IF60 60A 32VDC YELLOW

Product Packaging

  • OEM Package: 500PCS/polybag
  • Export Packaging: 500PCS/polybag, 5000PCS/carton.

Product Overview

The female maxi fuse from Hansor is part of the Intelligent Fuse family, built to replace standard low-profile female fuses commonly used in Japanese and global automotive fuse boxes. Its cartridge-type design delivers reliable overcurrent protection and durability for a wide range of vehicles.

Key Features

  • Automotive-Ready Design – Engineered as a female maxi fuse to fit automotive fuse holders with robust performance.
  • Broad Amperage Range – Available in 20A to 60A ratings with color-coded housings for quick identification.
  • High Quality Materials – Constructed with durable elements for long-lasting protection in demanding environments.
  • Compliance with Standards – Meets ISO 8820-4 and EU RoHS, REACH conformity, assuring safety and environmental compliance.
  • Easy Replacement & Service – Cartridge format simplifies fuse changes in automotive fuse boxes.

Applications

Hansor female maxi fuse is ideal for:

  • Passenger cars and light trucks with automotive fuse modules
  • Aftermarket automotive electrical systems
  • High-current circuits requiring reliable protection
  • Repair and maintenance environments where ease of replacement matters

*By integrating this female maxi fuse, technicians and engineers can ensure consistent protection across electrical systems with minimal downtime.

Certifications & Quality Assurance

Hansor’s automotive fuse products, including this female maxi fuse, are made in facilities with strict quality control and conform to international standards such as ISO 8820-4, RoHS, and REACH. Documentation and datasheets are available to support technical decision-making and procurement.

Related Products

  • Standard Female Fuse series
  • Low-Profile Female Maxi Fuse
  • Blade Type Fuses for Automotive Protection
