8.35 X 4.3 X 7.7mm
8.35 X 4.3 X 7.7mm
Micro fuses are specifically designed to use a circuit protection in consumer electronic appliances such as AV appliances, home appliances and computers.
Introduction

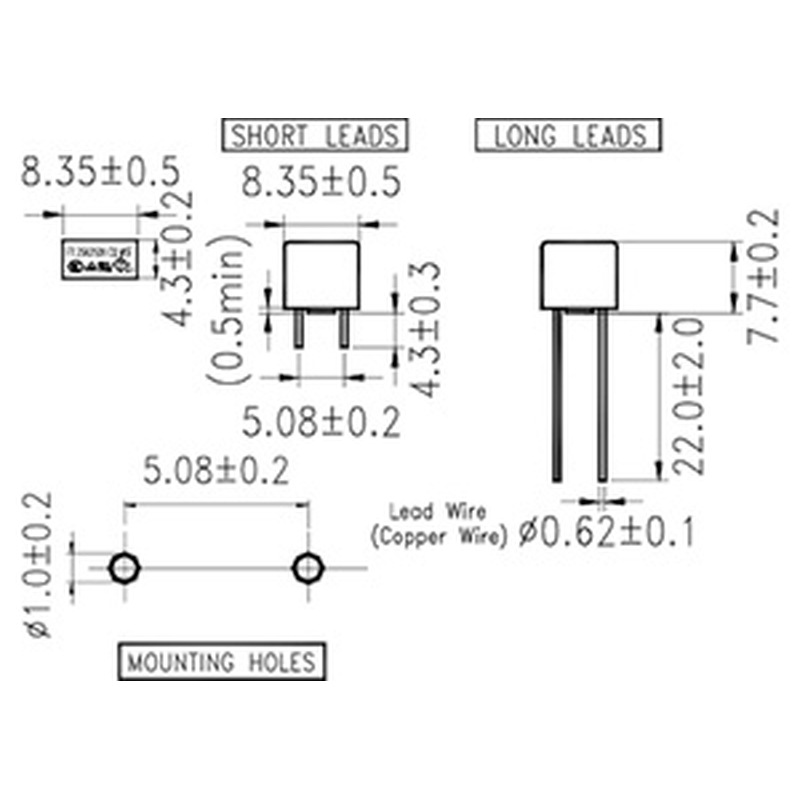

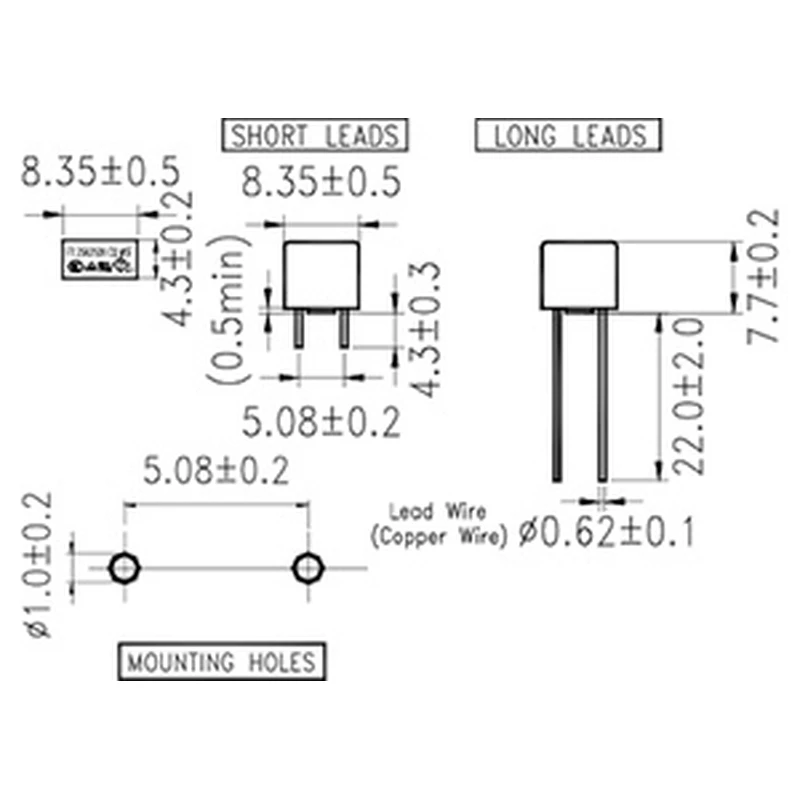

8.35 X 4.3 X 7.7mm(H) Micro Fuse.
Micro fuses are specifically designed to use a circuit protection in consumer electronic appliances such as AV appliances, home appliances and computers.
Product Conformity
- UL Recognized, VDE, TUV, CSA, PSE
- EU RoHS, REACH
Electronic Characteristics
For Fast Acting Type
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 150% | 50mA – 6.3 Amp | 60 min | - |
| 210% | 50mA – 6.3 Amp | - | 30 min |
| 275% | 50mA – 6.3 Amp | 10 ms | 3 Sec |
| 400% | 50mA – 6.3 Amp | 3 ms | 300 ms |
| 1000% | 50mA – 6.3 Amp | - | 20 ms |
For Slow Blow Type
| % of Rating | Current Rating | Opening Time | |
|---|---|---|---|
| Minimum | Maximum | ||
| 150% | 40mA – 10 Amp | 60 min | - |
| 210% | 40mA – 10 Amp | - | 2 min |
| 275% | 40mA – 10 Amp | 400 ms | 10 Sec |
| 400% | 40mA – 10 Amp | 150 ms | 3 Sec |
| 1000% | 40mA – 5 Amp 6.3A – 10 Amp |
20 ms 15 ms |
150 ms 150 ms |
Order Information
| Catalogue Number | Amperage Rating | Voltage Rating | Blow Type | Nominal Cold Resistance |
|---|---|---|---|---|
| MSF | 50mA ~ 6.3A | 250V | Fast Acting | - |
| MST | 40mA ~ 10A | 250V | Slow Blow | - |
* Please contact our sales for detail specification.

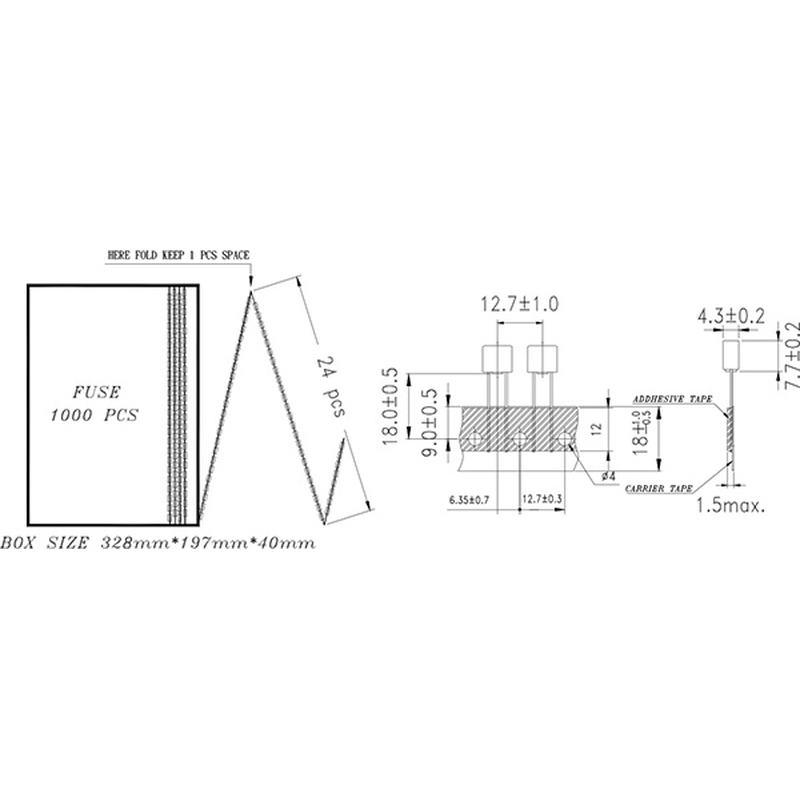

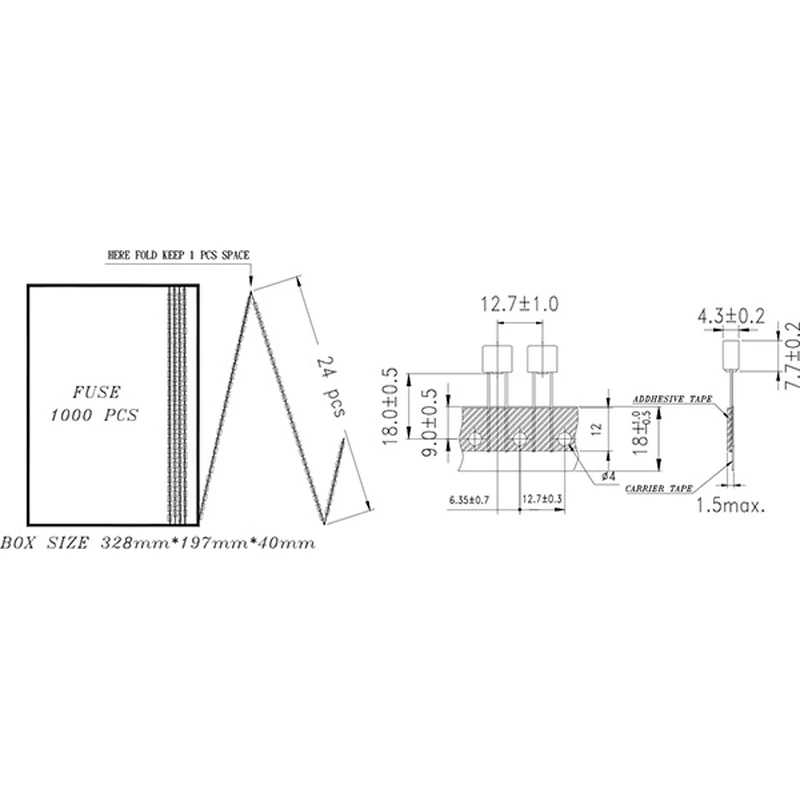

Product Packaging
- Standard Package: 1,000 PCS per box
Product Inquiry
| Image | Product Name |
|---|---|
|
8.35 X 4.3 X 7.7mm |
