Subminiature pico fuses are specifically designed to use a circuit protection in consumer electronic appliances such as AV appliances, home appliances and computers.

• UL Recognized
• EU RoHS, REACH

For Fast Acting Type
% of Rating	Current Rating	Opening Time
		Minimum	Maximum
100%	315mA – 5 Amp	4 hrs	-
200%	315mA – 5 Amp	-	5 Sec
275%	315mA – 5 Amp	-	300 ms
400%	315mA – 5 Amp	-	30 ms
1000%	315mA – 5 Amp	-	4 ms

For Slow Blow Type
% of Rating	Current Rating	Opening Time
		Minimum	Maximum
100%	375mA – 7 Amp	4 hrs	-
200%	375mA – 7 Amp	1 Sec	60 Sec
300%	375mA – 7 Amp	200 ms	3 Sec
800%	375mA – 7 Amp	20 ms	100 Sec

Catalogue Number	Amperage Rating	Voltage Rating	Blow Type	Nominal Cold Resistance
PEP.315	315mA	125V	Very Fast Acting	4889 mΩ
PEP.400	400mA	125V	Very Fast Acting	4358 mΩ
PEP.500	500mA	125V	Very Fast Acting	3734 mΩ
PEP.630	630mA	125V	Very Fast Acting	3008 mΩ
PEP.800	800mA	125V	Very Fast Acting	2282 mΩ
PEP001	1A	125V	Very Fast Acting	1562 mΩ
PEP1.25	1.25A	125V	Very Fast Acting	1326 mΩ
PEP1.60	1.6A	125V	Very Fast Acting	1125 mΩ
PEP002	2A	125V	Very Fast Acting	385 mΩ
PEP2.50	2.5A	125V	Very Fast Acting	344 mΩ
PEP3.15	3.15A	125V	Very Fast Acting	312 mΩ
PEP004	4A	125V	Very Fast Acting	221 mΩ
PEP005	5A	125V	Very Fast Acting	167 mΩ
PMP.375	375mA	250V	Slow Blow	3618 mΩ
PMP.500	500mA	250V	Slow Blow	2455 mΩ
PMP.750	750mA	250V	Slow Blow	1733 mΩ
PMP001	1A	250V	Slow Blow	1109 mΩ
PMP1.50	1.5A	250V	Slow Blow	898 mΩ
PMP002	2A	250V	Slow Blow	457 mΩ
PMP2.50	2.5A	250V	Slow Blow	313 mΩ
PMP003	3A	250V	Slow Blow	242 mΩ
PMP3.50	3.5A	250V	Slow Blow	211 mΩ
PMP004	4A	250V	Slow Blow	158 mΩ
PMP005	5A	250V	Slow Blow	128 mΩ
PMP007	7A	250V	Slow Blow	90 mΩ

* Please contact our sales for detail specification.

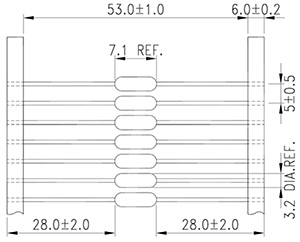

* Standard Package: 5,000 PCS per reel
