使用插片式保險絲帶線式保險絲座
導電接頭: 鍍鎳或鍍錫銅端子
客製化線徑與線長符合客戶產品設計
產品規格
Item Number | Maximum Current | Insulation Resistance At 500 V DC |
Contact Resistance | Dielectric strength for 60 seconds |
Body Material | Lead Wire in Loop | ||
使用ATP中型插片式保險絲 | ||||||||

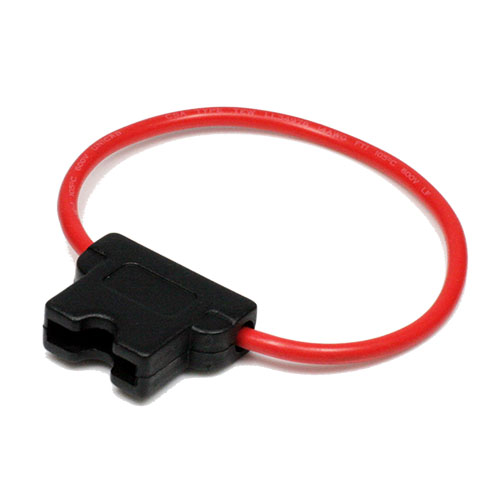

FH-006 | 30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Nylon | 12# to 18# AWG | Heavy Duty Type | |
FH-010 | 20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC |
AC 1500 V Min. | Nylon | 10# to 18# AWG | Interlock For Multiple Mounting | |

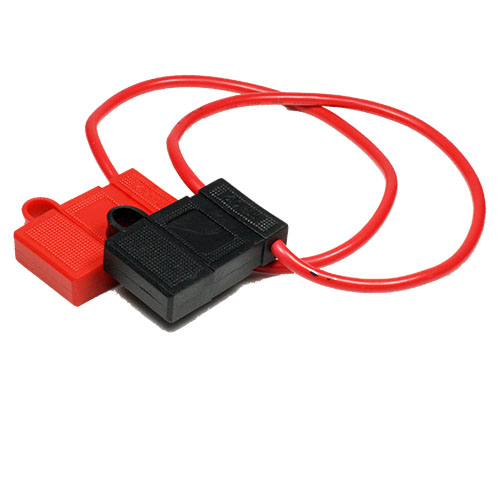

FH-012 | 30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type | |

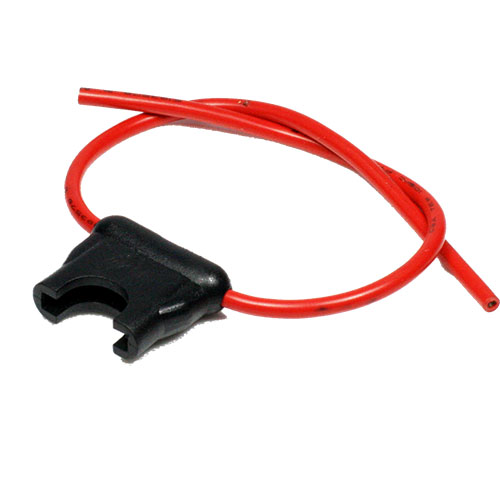

FH-006P | 30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1500 V Min. | PVC | 12# to 16# AWG | Heavy Duty Type | |

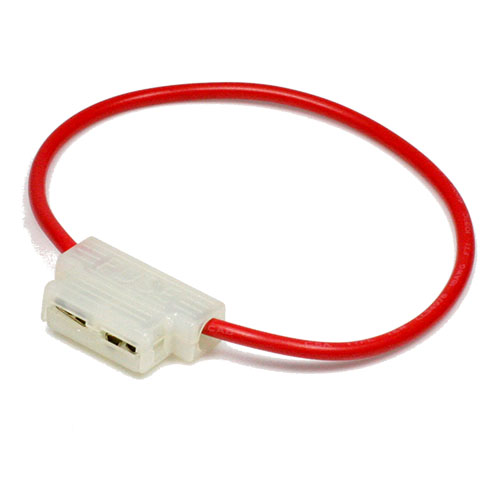

FH-007 | 20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Hinged Body Type | |

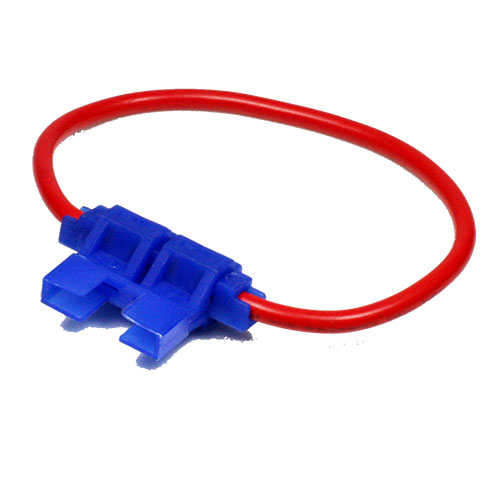

FH-011 | 20 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1500 V Min. | Nylon | 14# to 18# AWG | Hinged Body Type | |

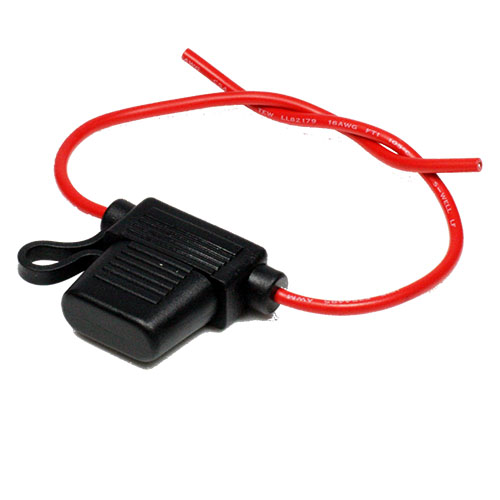

FH-006WR | 30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type | |

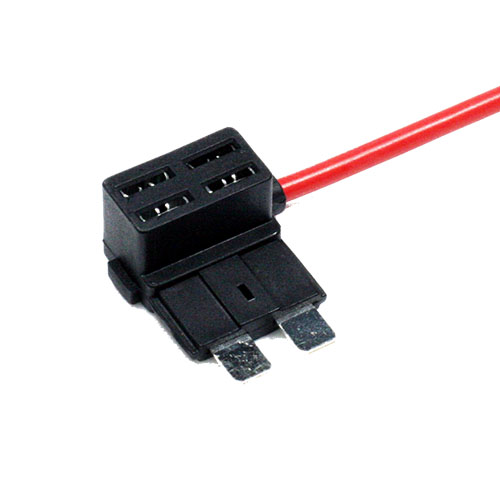

IFH-003 | 10 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | Nylon. | 12# to 18# AWG | Add-a-Circuit Type | |

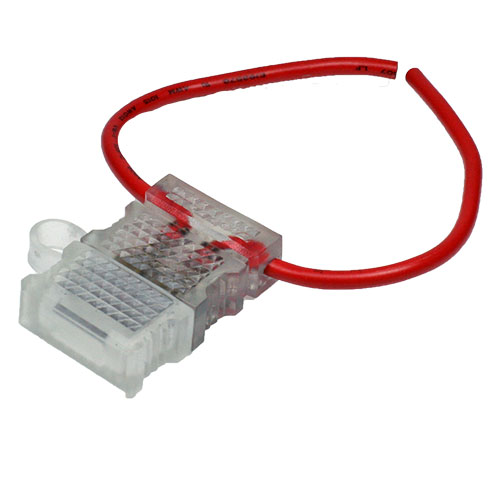

IFH-001 | 30 A | 100M (Ohm) Min | 5 m(Ohm) | AC 1000 V Min. | P.V.C. | 10# to 18# AWG | Water Resistant Type | |
使用ASP迷你型插片式保險絲 | ||||||||

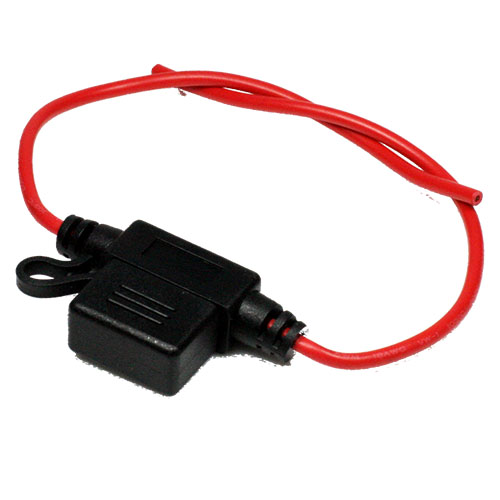

SFH-001 | 30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type | |

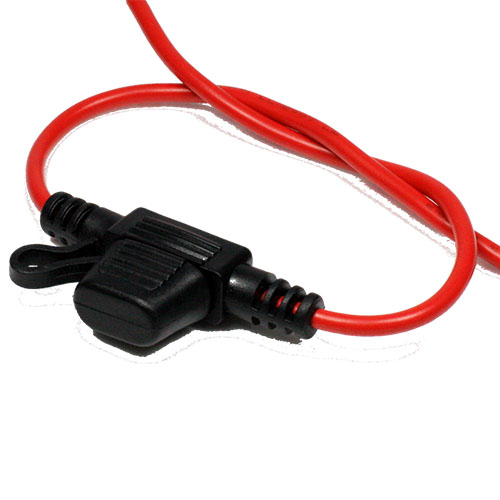

SFH-001A | 30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type | |

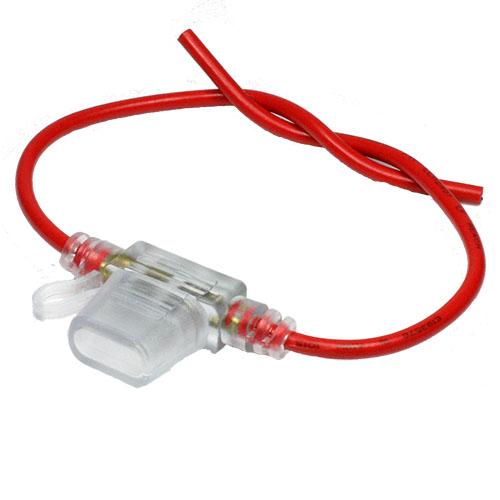

IFH-002 | 30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Resistant Type | |

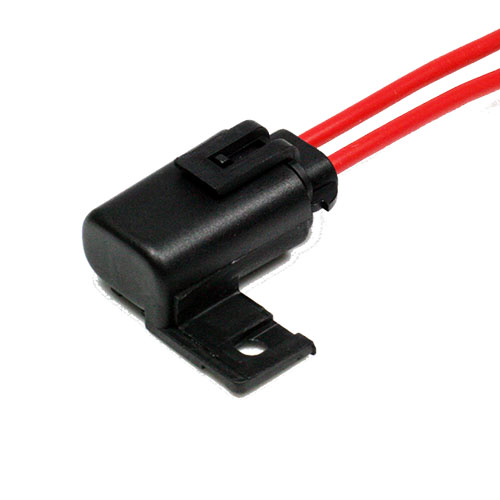

FH-85533 | 30 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 1000 V Min. | P.V.C. | 12# to 16# AWG | Water Proof Type | |
使用AMP大型插片式保險絲 | ||||||||

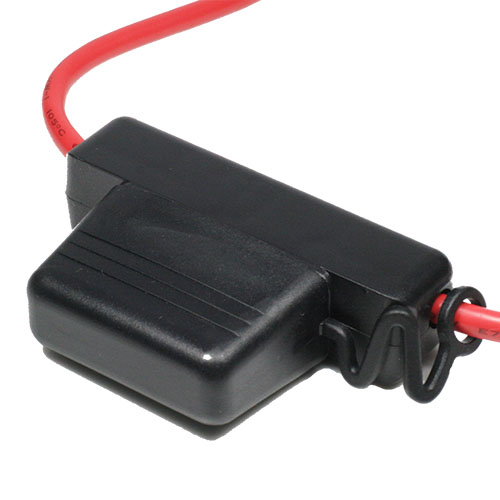

MFH-001 | 80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type | |

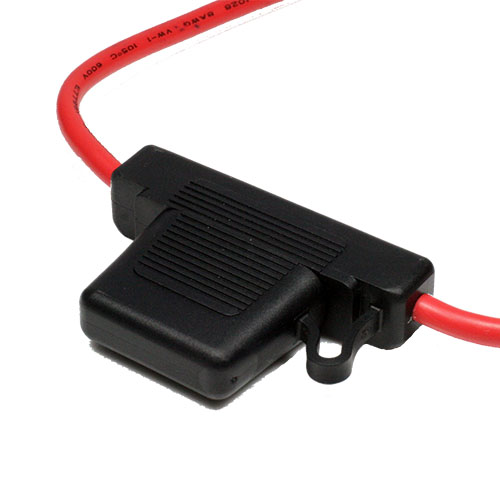

MFH-001A | 80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type | |

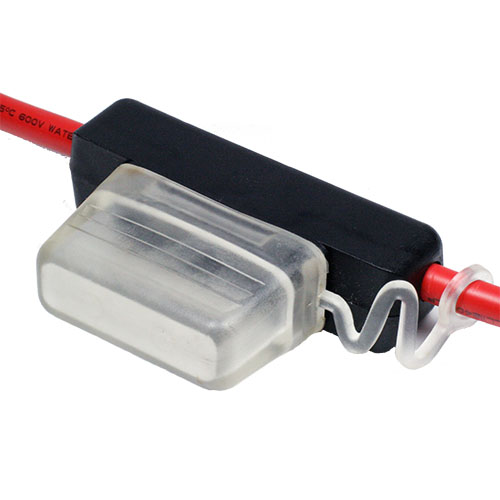

IFH-005 | 80 A | 100M (Ohm) Min | 5 m(Ohm) At 1A DC | AC 3000 V Min. | P.V.C. | 4# & 6# AWG | Water Resistant Type |
產品包裝
標準包裝:100條/包
